Detailed Specifications

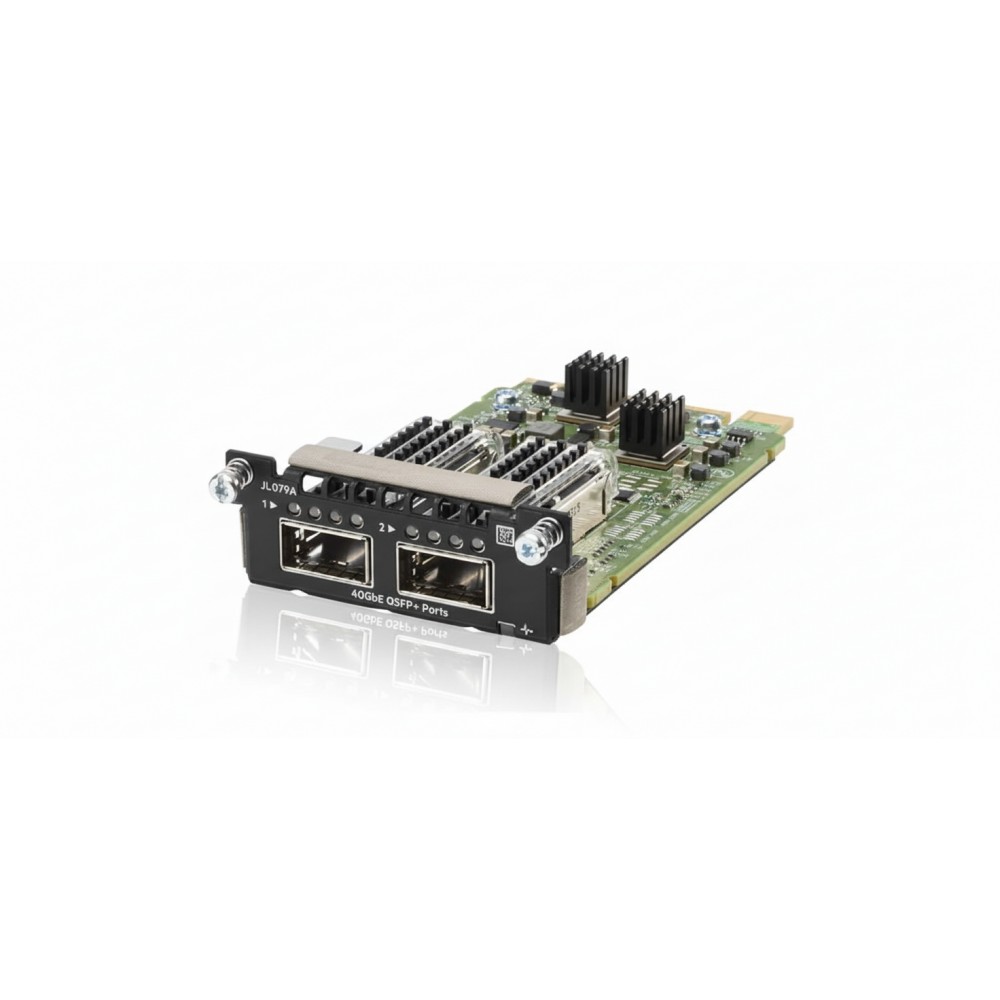

HPE JL079A Aruba 3810M 2QSFP+ 40GbE Module
Overview
The HPE JL079A is an uplink expansion module designed for use with the Aruba 3810M switch family, enabling dual 40 Gb/s QSFP+ ports for high-bandwidth fabric connections. It is used by network engineers to add high-speed optical uplinks from access or aggregation switches into data-centre topologies, supporting use cases such as spine-leaf architectures or high-density distribution layers. The module supports 40GBase-X networking, fits into a dedicated QSFP+ slot on the chassis, and is media-type multimode fibre oriented×typically installed in campus or data-centre switch racks where low-latency, high-throughput connectivity is required. The compact form-factor and lightweight design minimise rack-space and power overhead while supporting modern 40 GbE deployment needs.
Key Features
Dual QSFP+ ports supporting 40 Gb/s per port.
Supports 40GBase-X optical network technology.
Compatible with Aruba 3810M series switches for plug-and-play uplink insertion.
Compact module form-factor designed for minimal rack impact.
Multimode fibre support for high-speed uplink environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL079A |
| Product Type | Aruba 3810M 2QSFP+ 40GbE Module |
| Processor Installed | N/A |
| Processor Supported (Max) | N/A |
| Memory Installed | N/A |
| Memory Slots | N/A |
| Maximum Memory Supported | N/A |
| Drive Bays | N/A |
| Storage Controller | N/A |
| Network Adapter | 2 × QSFP+ 40 GbE ports |
| Form Factor (H × W × D) | 1.1 in × 2.9 in × 5.1 in |
| Weight (lbs) | Approx. 0.38 lbs |
| Power Supply | Draw < 5 W (typical) |
| Rack Units | N/A |
