Detailed Specifications

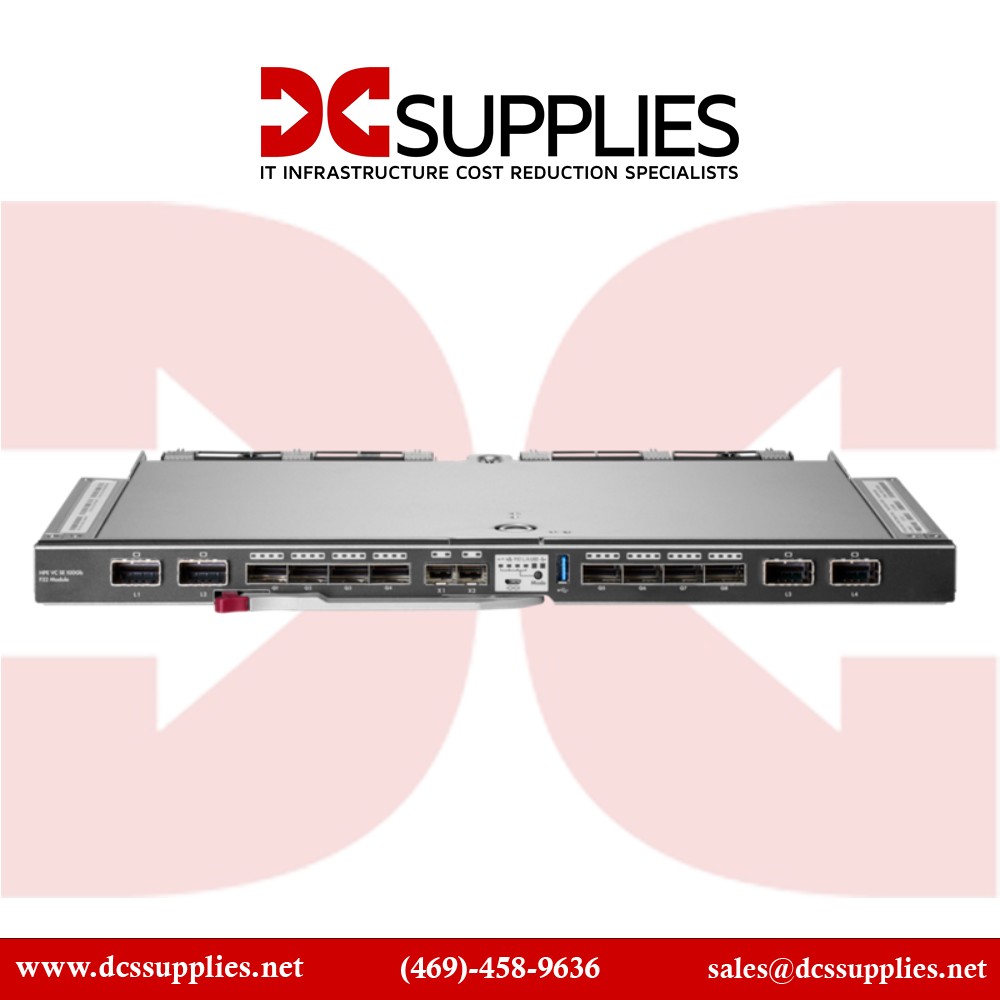

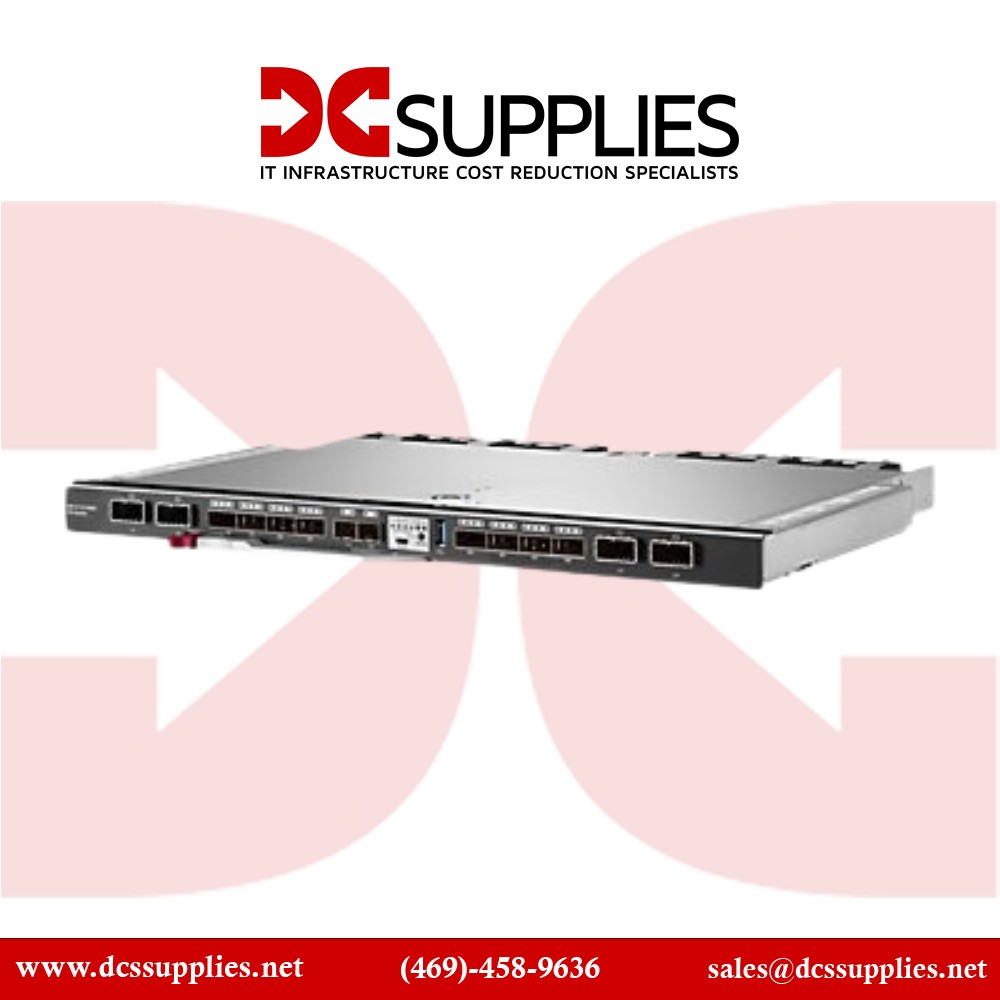

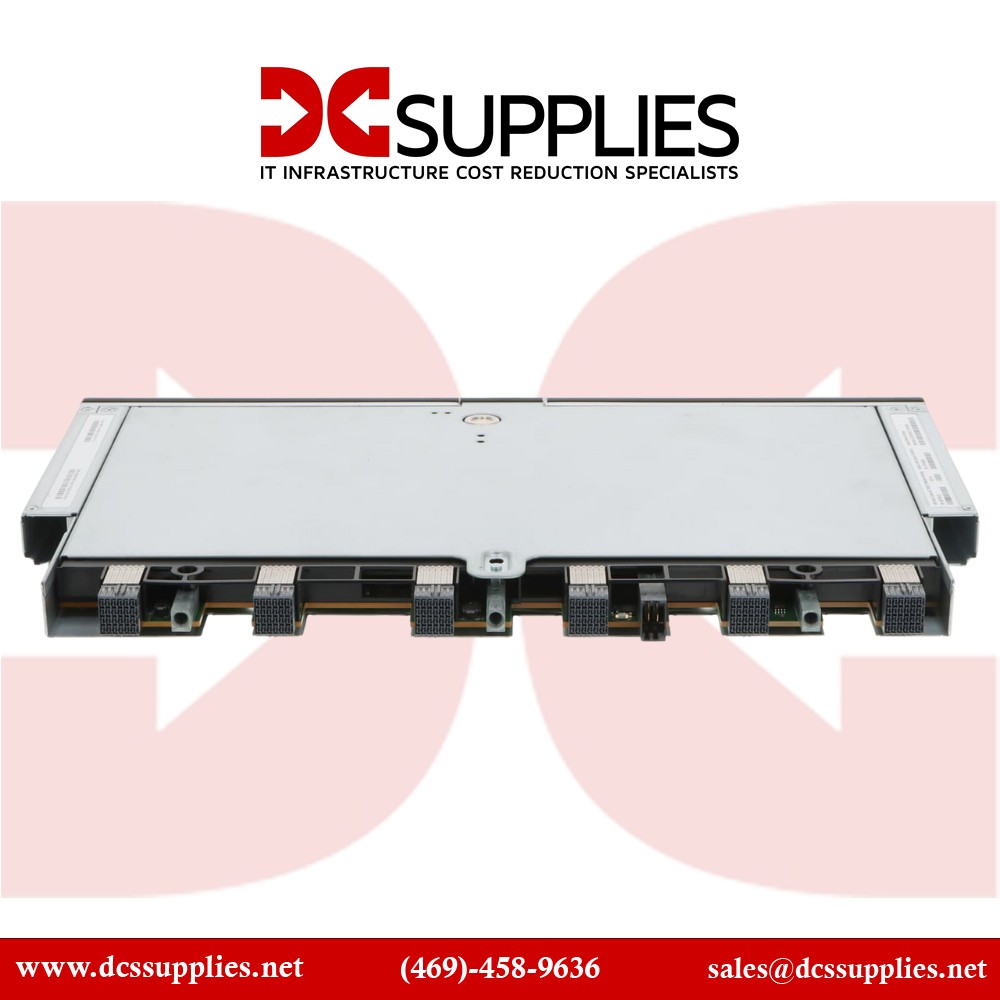

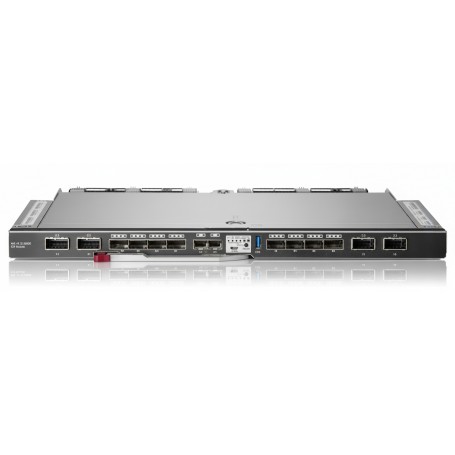

HPE 867796-B21 Virtual Connect SE 100Gb F32 Module for Synergy
Overview
The HPE 867796-B21 is a high-performance interconnect expansion module purpose-built for HPE Synergy composable infrastructure. It delivers unified, high-bandwidth connectivity for compute modules by consolidating network and storage traffic over a flexible, software-defined fabric. Designed to simplify scale-out architectures, it provides multi-rate uplink capability, advanced fabric switching, and intelligent workload-aware bandwidth allocation. The module supports Ethernet, Fibre Channel, FCoE, iSCSI, and RDMA overlays, enabling customers to deploy converged environments without complex external switching configurations. With a 6.4 Tb/s fabric backplane, hot-swap capability, and seamless Synergy frame integration, it ensures efficient data center operations, reduced cabling, and consistent, low-latency interconnect performance across growing workloads.
Key Features
Supports 100 Gb Ethernet uplinks with flexible speed modes
Multi-protocol fabric with Ethernet, FC, FCoE, and iSCSI support
6.4 Tb/s internal fabric throughput for high-density Synergy environments
Flexible network partitioning and workload-oriented bandwidth allocation
Hot-swappable and fully integrated with HPE Synergy architecture
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 867796-B21 |
| Product Type | Virtual Connect SE 100Gb F32 Interconnect Module |
| Processor Installed | Not applicable |
| Processor Supported (Max) | Not applicable |
| Memory Installed | Not applicable |
| Memory Slots | Not applicable |
| Maximum Memory Supported | Not applicable |
| Drive Bays | None |
| Storage Controller | Integrated fabric supports storage protocols (FC/FCoE/iSCSI) |
| Network Adapter | Supports 25/50/100 Gb Ethernet and storage overlays |
| Form Factor (H × W × D in inches) | Approx. 2.0 × 10.5 × 11.5 inches |
| Weight (lbs) | Approx. 6.2 lbs |
| Power Supply | Powered via Synergy frame midplane |
| Rack Units | Fits Synergy interconnect bay (0U external footprint) |
