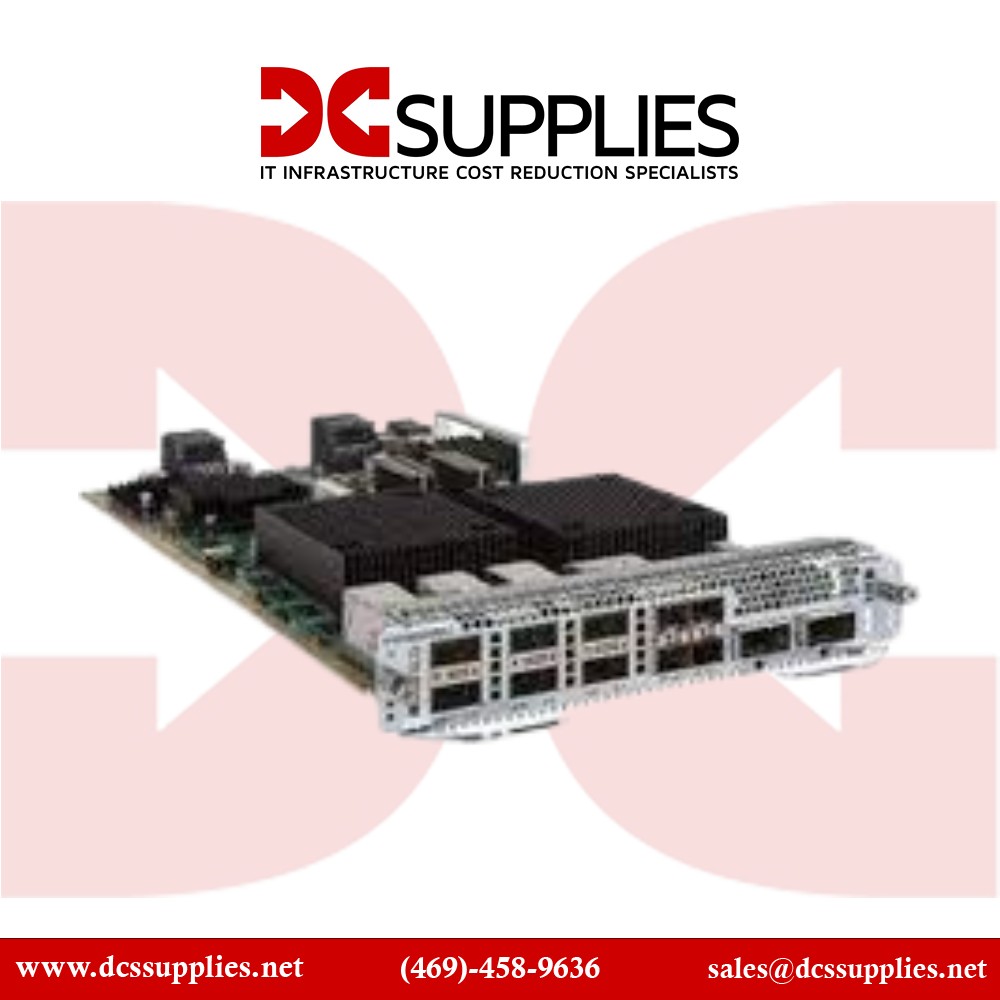

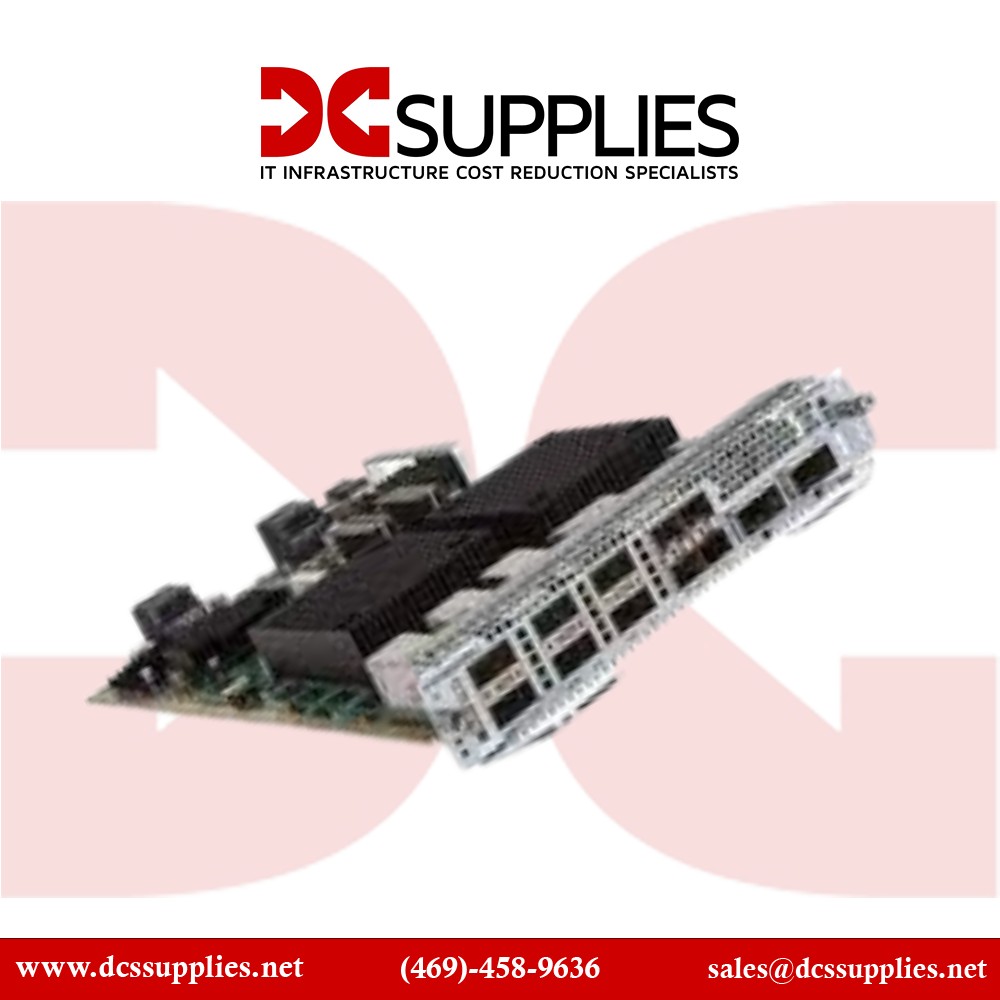

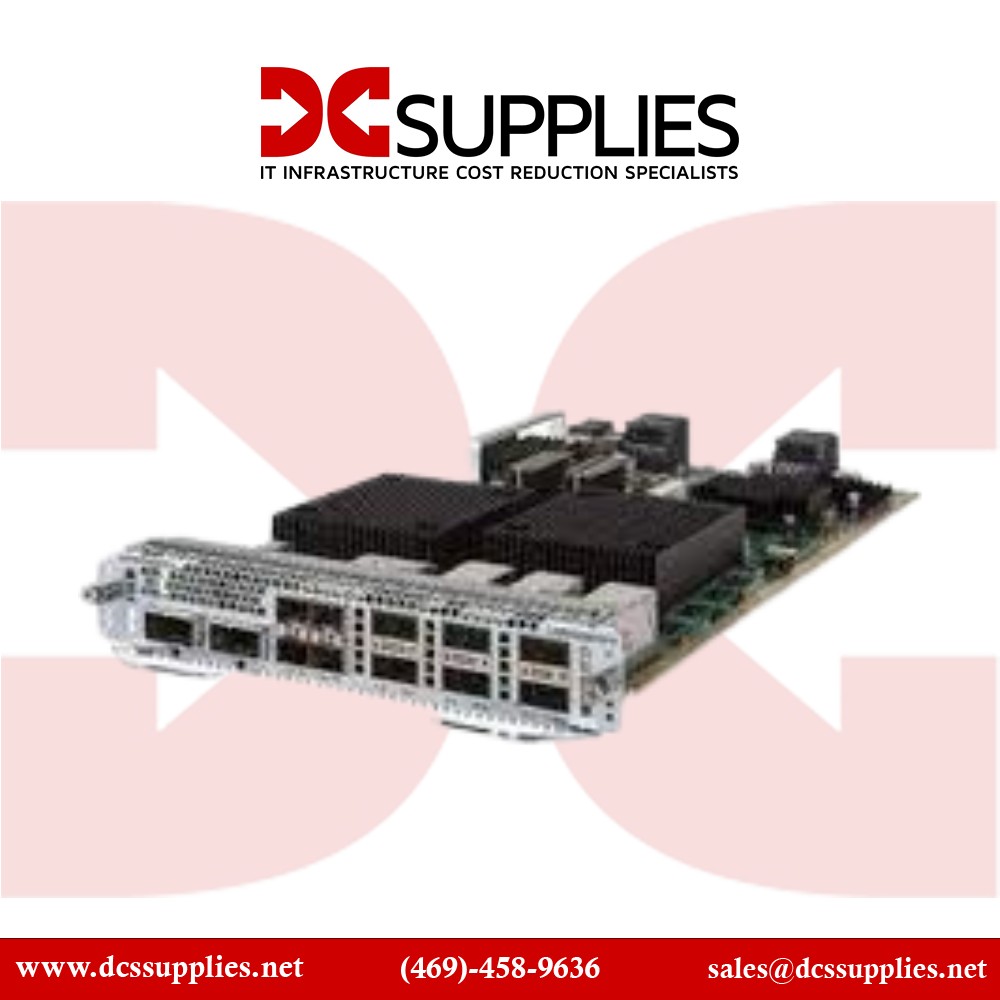

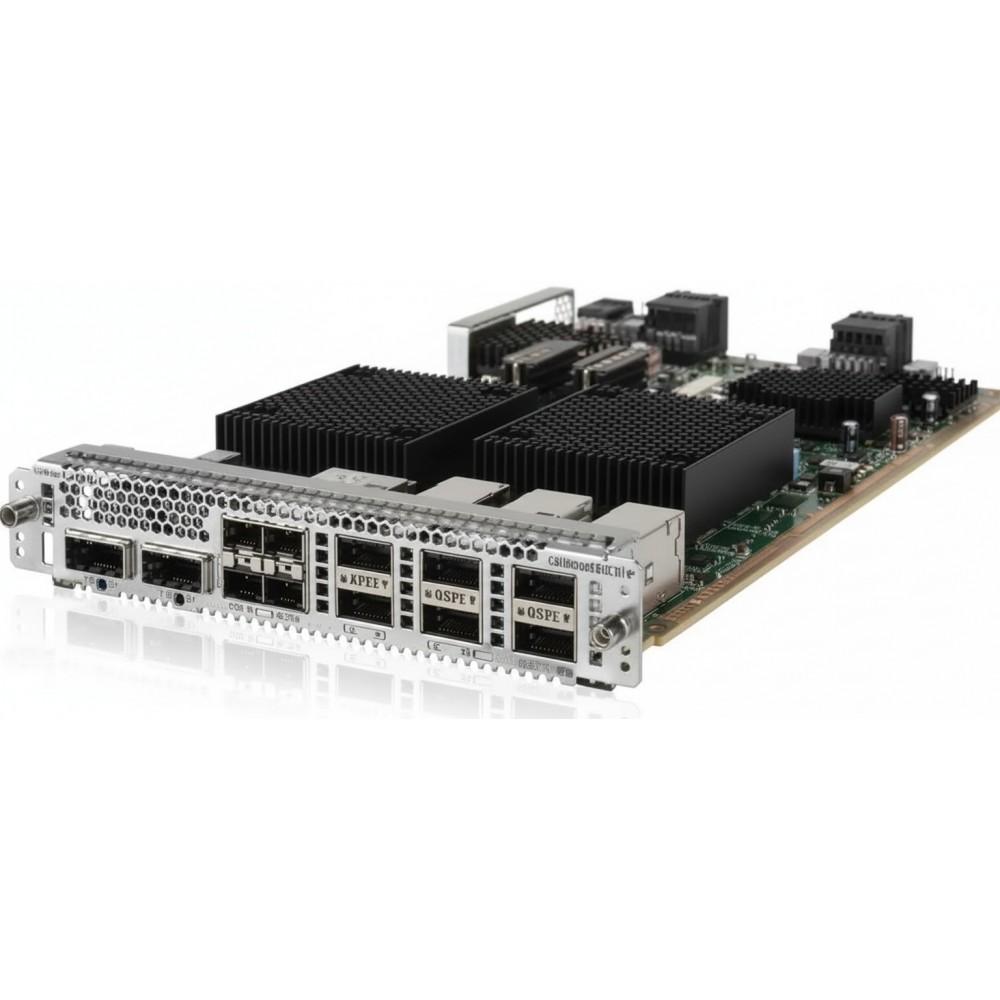

HPE JH002A FF 7900 2Port 100G 6P 40G 4P 10G FX Expansion Module View larger

HPE JH002A FlexFabric 7900 2P 100G 6P 40G 4P 10G FX Module

New

Multi-rate FlexFabric I/O module for 7900 switch
×




  • New

Detailed Specifications

HPE JH002A FlexFabric 7900 FX Module (100G / 40G / 10G)

Overview

The HPE JH002A is an expansion module for the HPE FlexFabric 7900 switch chassis. It offers a blend of high-speed ports — two 100 GbE CXP, six 40 GbE QSFP+, and four 10 GbE SFP+ — making it a versatile solution for aggregation, core, and spine deployment in data centers. The module is hot-pluggable into the I/O slots of the 7900 chassis, enabling scalable bandwidth while minimizing disruption. It supports advanced virtualization and overlay network architectures, fitting into environments demanding high density and flexible fabric design.

Key Features

  • 2 × 100 GbE CXP ports for high-bandwidth backbone links

  • 6 × 40 GbE QSFP+ ports for high-speed aggregation

  • 4 × 10 GbE SFP+ ports for legacy or access connectivity

  • Hot-swappable module for non-disruptive chassis upgrades

  • Designed to support overlay networking (e.g., VXLAN) for modern virtualized architectures

Technical Specifications

SpecificationDetails
Brand HPE
Part Number JH002A
Product Type FlexFabric Expansion Module
Compatible Switch Family HPE FlexFabric 7900 series
Port Types 2 × 100 GbE (CXP) / 6 × 40 GbE (QSFP+) / 4 × 10 GbE (SFP+)
Data Rates 100 Gb/s, 40 Gb/s, 10 Gb/s per respective port
Hot-Plug Yes
Management Through parent chassis control-plane
Form Factor Plug-in I/O module for 7900 chassis
Application Data center aggregation, Core/Spine, Overlay networking
