Detailed Specifications

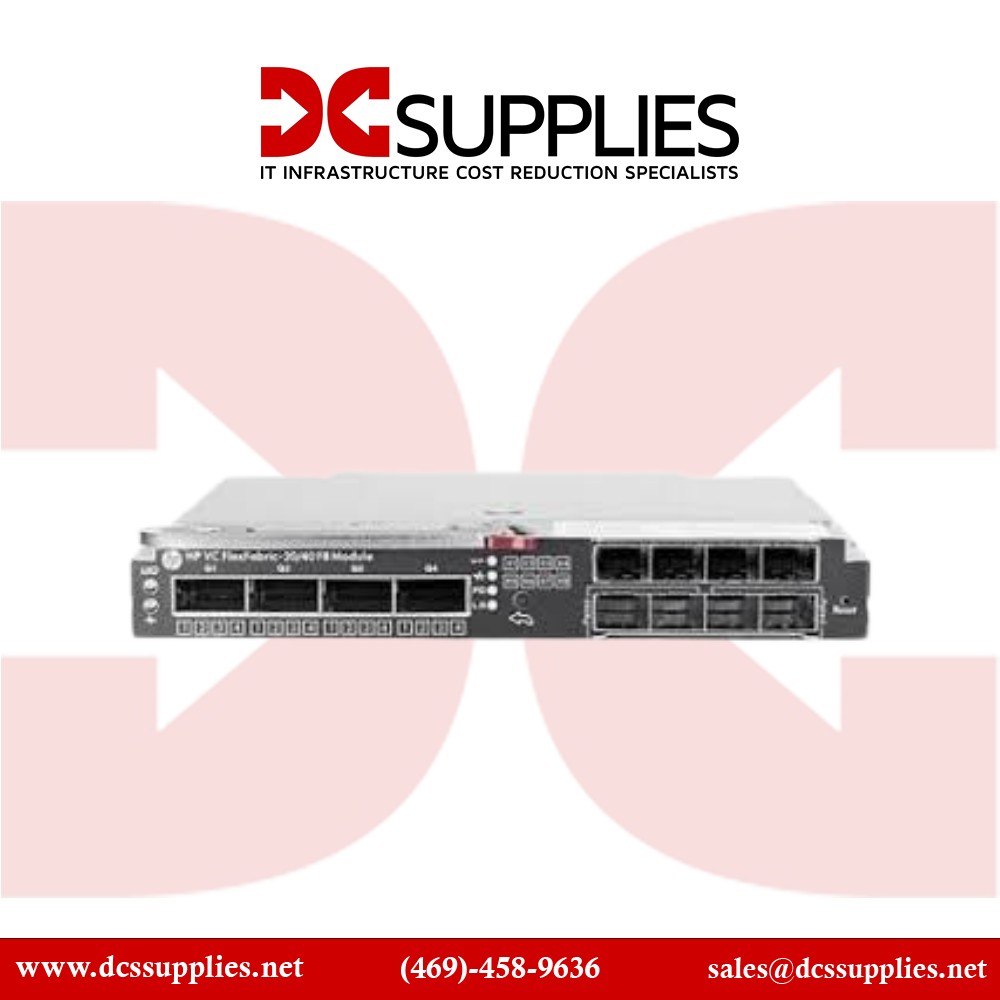

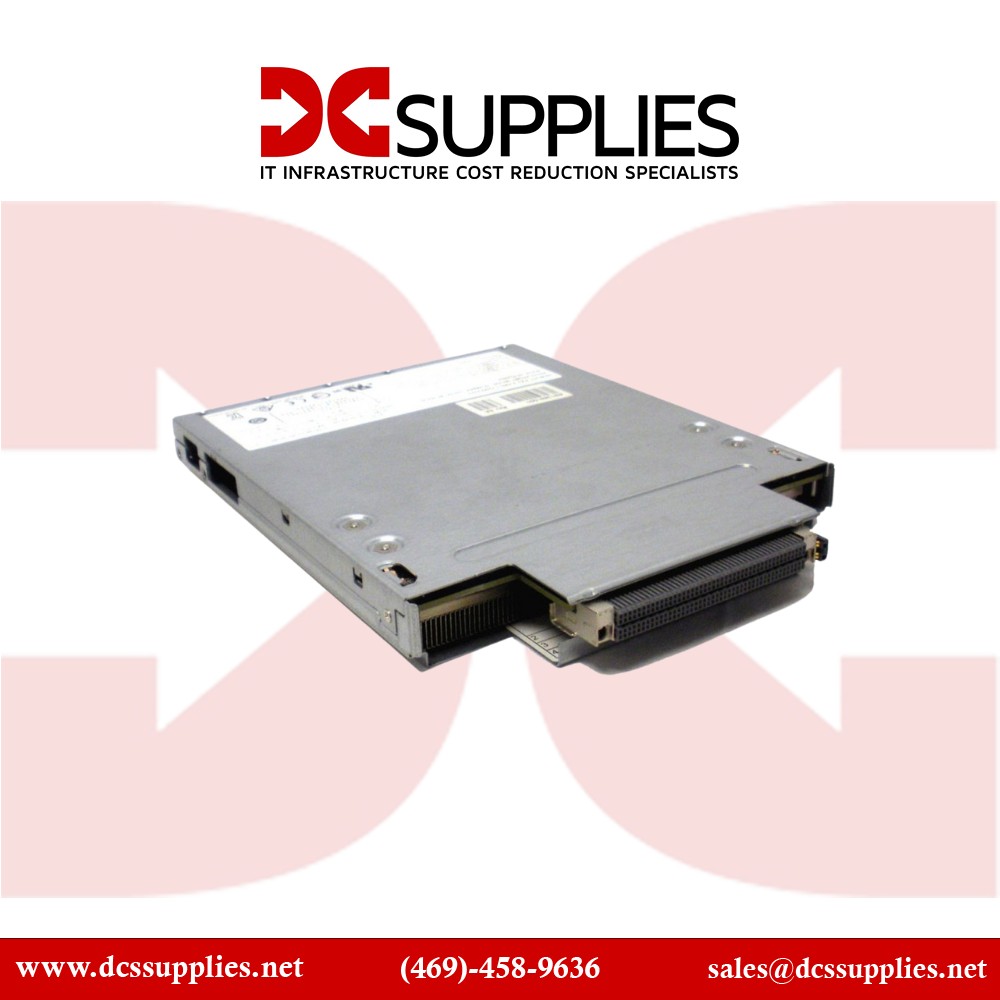

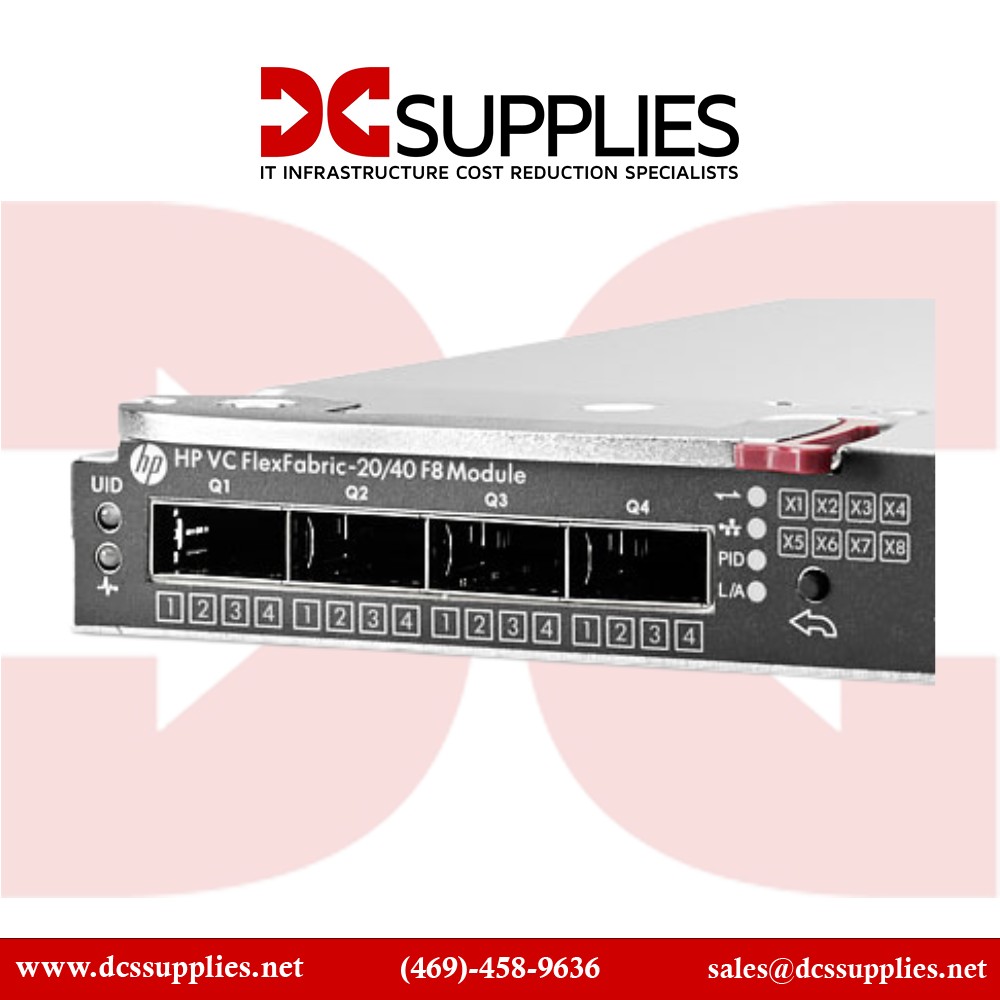

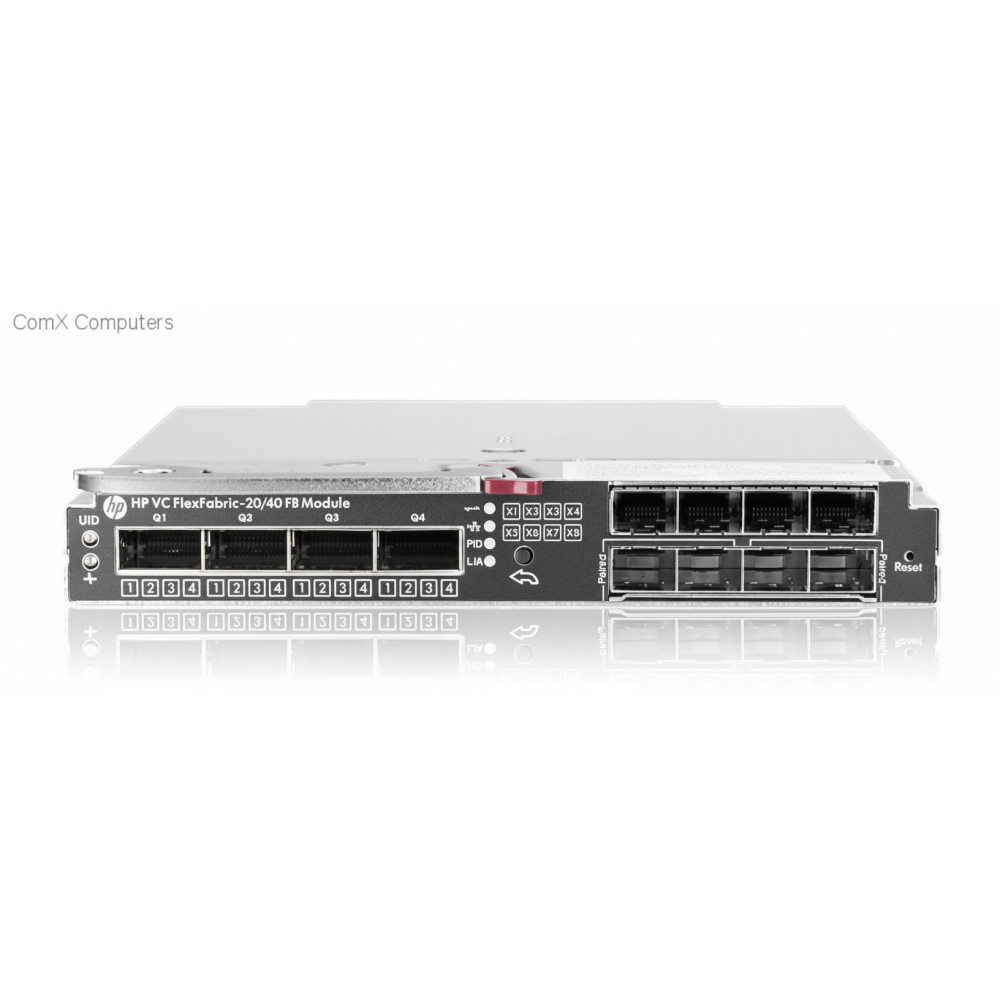

HPE 691367-B21 Virtual Connect FlexFabric-20/40 F8 Module
Overview
The HPE 691367-B21 is a Virtual Connect FlexFabric module for HPE BladeSystem c-Class enclosures. It provides 16 downlink FlexFabric ports (10/20 Gb), 8 SFP+ uplinks, 4 QSFP+ uplinks, and 2 cross-connect 20 Gb links. This enables converged network and storage fabrics, reducing cabling and increasing flexibility in data-center blade deployments. It supports rich management via SNMP, CLI, and HTTPS and integrates into BladeSystem management frameworks for scalable and efficient Blade fabric design.
Key Features
16 × 10/20 Gb FlexFabric downlink ports
8 × SFP+ uplink ports for 10 GbE connectivity
4 × QSFP+ uplink ports for 40 GbE aggregation
2 × 20 Gb cross-connect links for high-speed internal interconnect
Management via SNMP v1/v2, HTTPS, SM-S, and CLI
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 691367-B21 |
| Product Type | Virtual Connect Interconnect Module |
| Downlink Ports | 16 × FlexFabric (10/20 Gb) |
| Uplink Ports (SFP+) | 8 × 10 Gb SFP+ |
| Uplink Ports (QSFP+) | 4 × 40 Gb QSFP+ |
| Cross-Connect Links | 2 × 20 Gb |
| Fabric Throughput | ~1.2 Tb/s |
| Jumbo Frame Support | Up to 9,216 bytes |
| Management | SNMP, HTTPS, CLI |
| Supported Standards | IEEE 802.1Q, 802.1Qbb, 802.1Qaz, 802.3ae, 802.3ad, 802.1ab |
| Compatible Enclosures | HPE c-Class BladeSystem |
| Operating Temperature | Typical BladeSystem module range |
