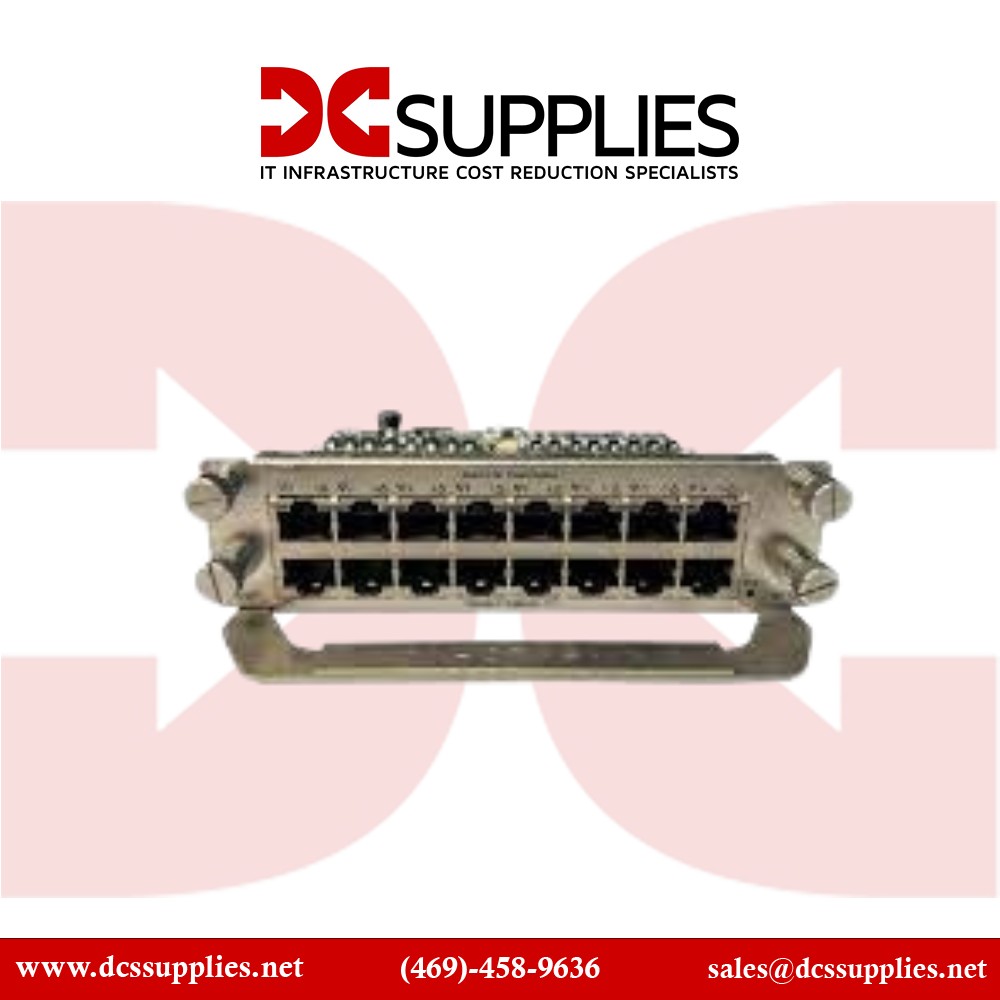

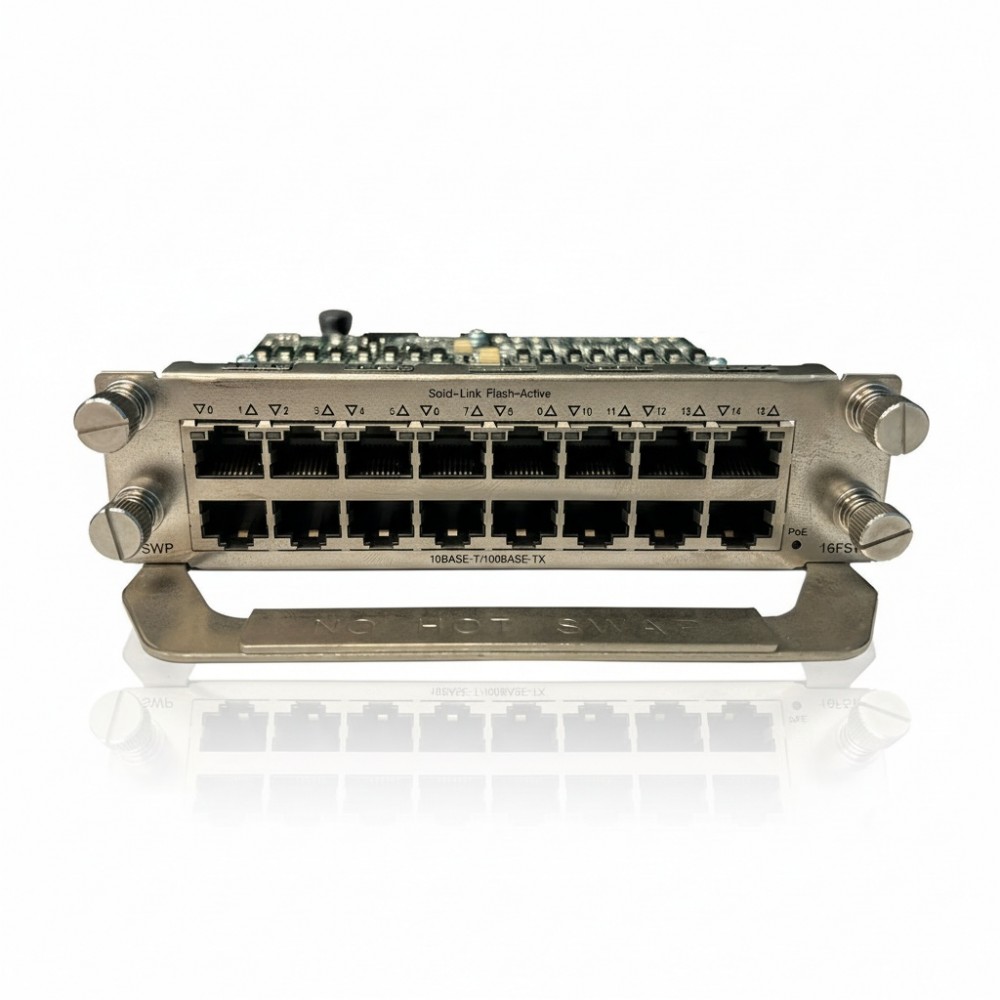

HPE JD618A 16-Port 10/100 PoE MIM Expansion Module for MSR Routers View larger

HPE JD618A 16-Port Multi-Function MSR PoE Module

New

In Stock

16‑port 10/100 PoE MIM module
×




$655.00

  • New
  • Refurbished

Detailed Specifications

HPE JD618A 16‑Port 10/100Base‑TX PoE Multifunction Interface Module

Overview

The HPE JD618A is a multifunction interface module (MIM) designed for HPE MSR router series (e.g., MSR30). It provides 16 RJ‑45 ports supporting 10/100Base‑TX Ethernet with PoE (Power over Ethernet), enabling deployment of IP phones, wireless access points, security cameras, and other powered devices directly from the router chassis. The module helps consolidate data and power delivery while keeping cabling simple. It is designed to plug into the router’s MIM expansion slot and integrates with HPE’s router management firmware.

Key Features

  • 16 × 10/100Base‑TX RJ‑45 PoE ports

  • Multifunction Interface Module (MIM) form factor for HPE MSR routers

  • Supports Fast Ethernet speeds for legacy and modern devices

  • PoE capability simplifies deployment of powered endpoints

  • Designed for modular, scalable branch / edge network deployments

Technical Specifications

SpecificationDetails
Brand HPE
Part Number JD618A
Product Type Multifunction Interface Module (MIM)
Number of Ports 16
Port Type RJ‑45 10/100Base‑TX
Data Rate 100 Mbps (Fast Ethernet)
Power over Ethernet Yes (PoE)
Compatible Platform HPE MSR series routers (MSR30‑series)
Interface Slot MIM slot on MSR router
Form Factor Plug-in Module
Operating Temperature 0 °C to 45 °C (typical for MSR modules)
Compliance Ethernet 802.3, PoE standards, RoHS
