Detailed Specifications

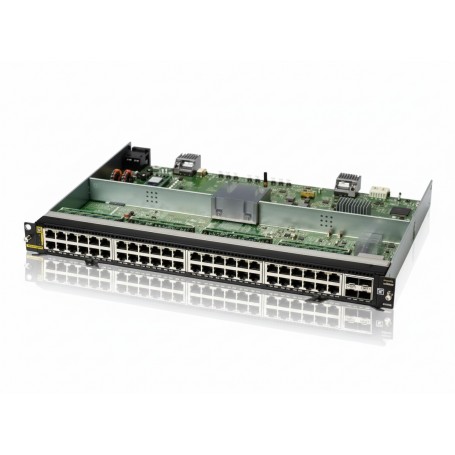

HPE R0X39-61001 Aruba CX 6400 48-Port PoE+ / 4-Port SFP56 Line Card
Overview
The HPE R0X39-61001 is a plug-in expansion module for the Aruba CX 6400 chassis family. It delivers 48 RJ-45 Gigabit PoE+ ports powered at Class 4, plus four SFP56 uplink ports that support 1/10/25/50 GbE. It is optimized for high-density edge deployments such as IP cameras, access points, or IoT devices. The module integrates with the Aruba AOS-CX operating system and supports VSX for high-availability topologies.
Key Features
48 × 1 Gb RJ-45 ports with Class 4 PoE+ support
4 × SFP56 uplink ports supporting up to 50 Gb/s
Hot-swappable line card for CX 6400 chassis
Fully managed via AOS-CX with VSX, Dynamic Segmentation
High PoE capacity suited for dense edge deployments
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X39-61001 |
| Product Type | Expansion Module / Line Card |
| Compatible Chassis | Aruba CX 6400 (5- or 10-slot) |
| RJ-45 Ports | 48 × 1 Gb Ethernet |
| PoE Class | Class 4 (IEEE 802.3at) |
| SFP56 Ports | 4 × 1/10/25/50 GbE |
| Switching ASIC | Gen7 (same as CX 6400 chassis) |
| Management OS | AOS-CX |
| Hot-Swap | Yes |
| Power-Supply Dependency | Power provided through host chassis PSUs |
| Weight | ~3.18 lbs (1.44 kg) |
| Operating Temperature | 0 °C - 40 °C |
| Standards Compliance | IEEE 802.3af/at, SFP56 specification |
