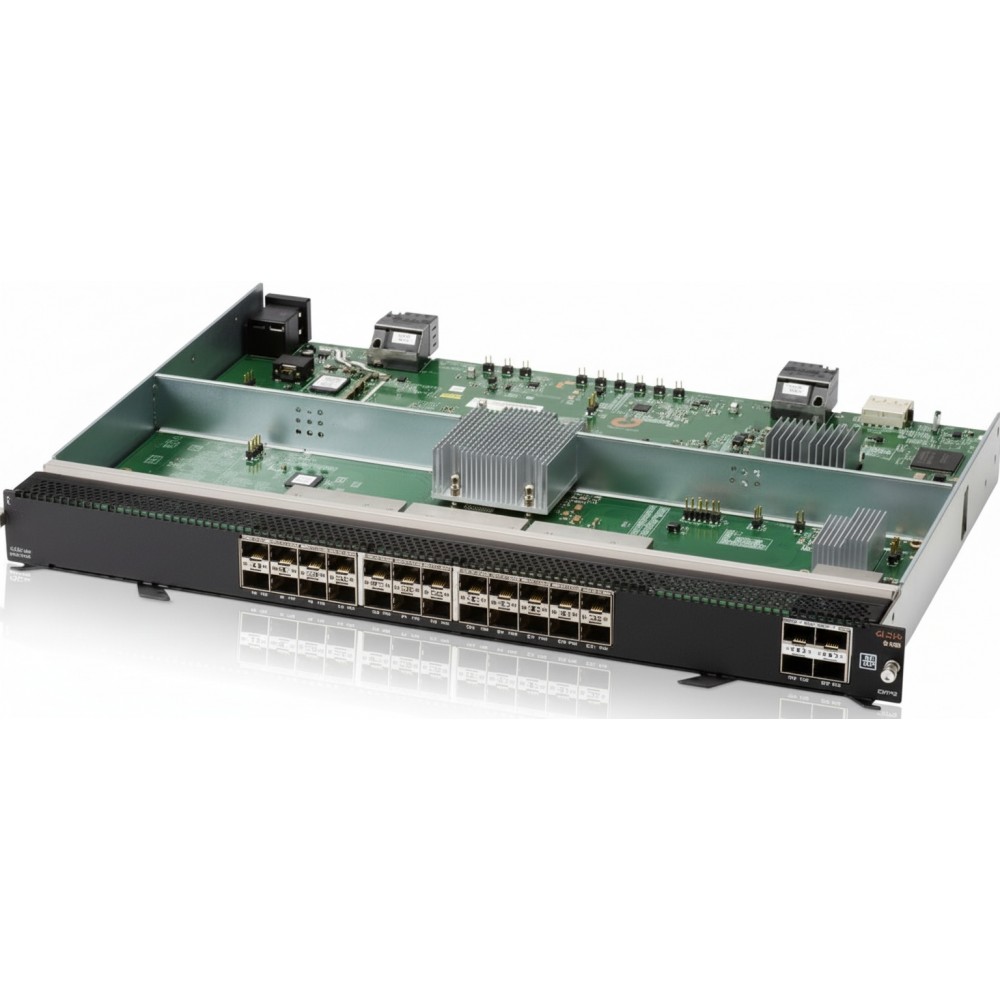

HPE Aruba R0X43-61001 6400 24SFP+ & 4SFP56 Expansion Module View larger

HPE R0X43-61001 Aruba 6400 24-Port SFP+ and 4-Port SFP56 Module

New

24‑port SFP+ and 4‑port SFP56 expansion module for Aruba 6400 series
×




  • New

Detailed Specifications

HPE R0X43‑61001 Aruba 6400 Series 24 × 10G SFP+ / 4 × 25/50G SFP56 Module

Overview

The R0X43‑61001 is an expansion module designed for the Aruba 6400 switch platform, targeting environments that require increased uplink density and speed. It provides 24 SFP+ ports supporting 10 Gb and 4 SFP56 ports supporting up to 25/50 Gb connections, enabling integration of higher‑speed aggregation or uplink links. The module is intended for data‑centre edge or campus core switch chassis where the Aruba 6400 chassis is deployed. It plugs into a compatible expansion slot and is managed under the same operating software and fabric services as the base chassis.

Key Features

  • 24 SFP+ ports for 10 Gb networking on fiber or DAC links

  • 4 SFP56 ports for 25/50 Gb uplink or stacking connectivity

  • Plug‑in module form‑factor suited to Aruba 6400 chassis environments

  • Enables seamless speed upgrade without full chassis replacement

  • Maintains unified management under Aruba AOS‑CX or equivalent platform

Technical Specifications

SpecificationDetails
Brand HPE
Part Number R0X43‑61001
Product Type Expansion module for Aruba 6400 series
Network Adapter 24 × 10 Gb SFP+ ports + 4 × 25/50 Gb SFP56 ports
Form Factor (H × W × D in inches) 1.73 × 15.4 × 18.7 in (approx)
Weight (lbs) ≈ 5.0 lbs
Power Supply Module powered via host chassis
Rack Units Module mounts within chassis
