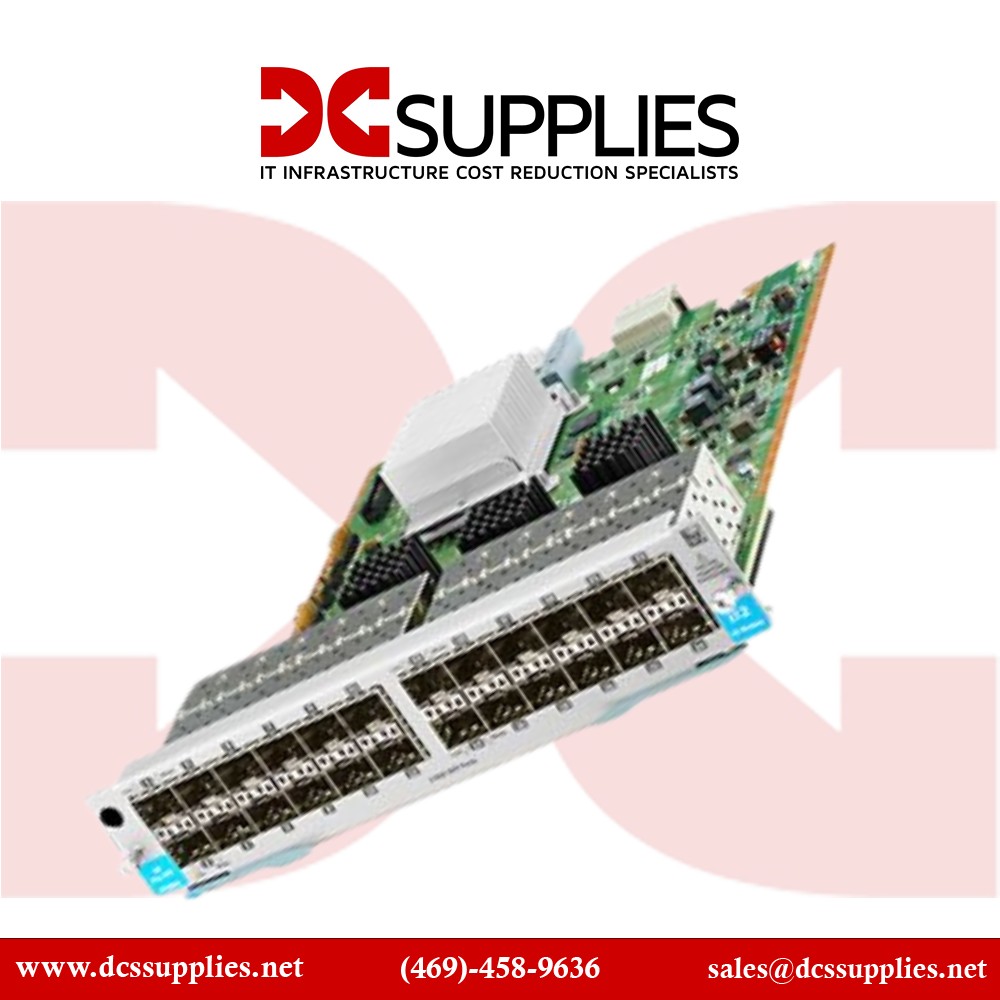

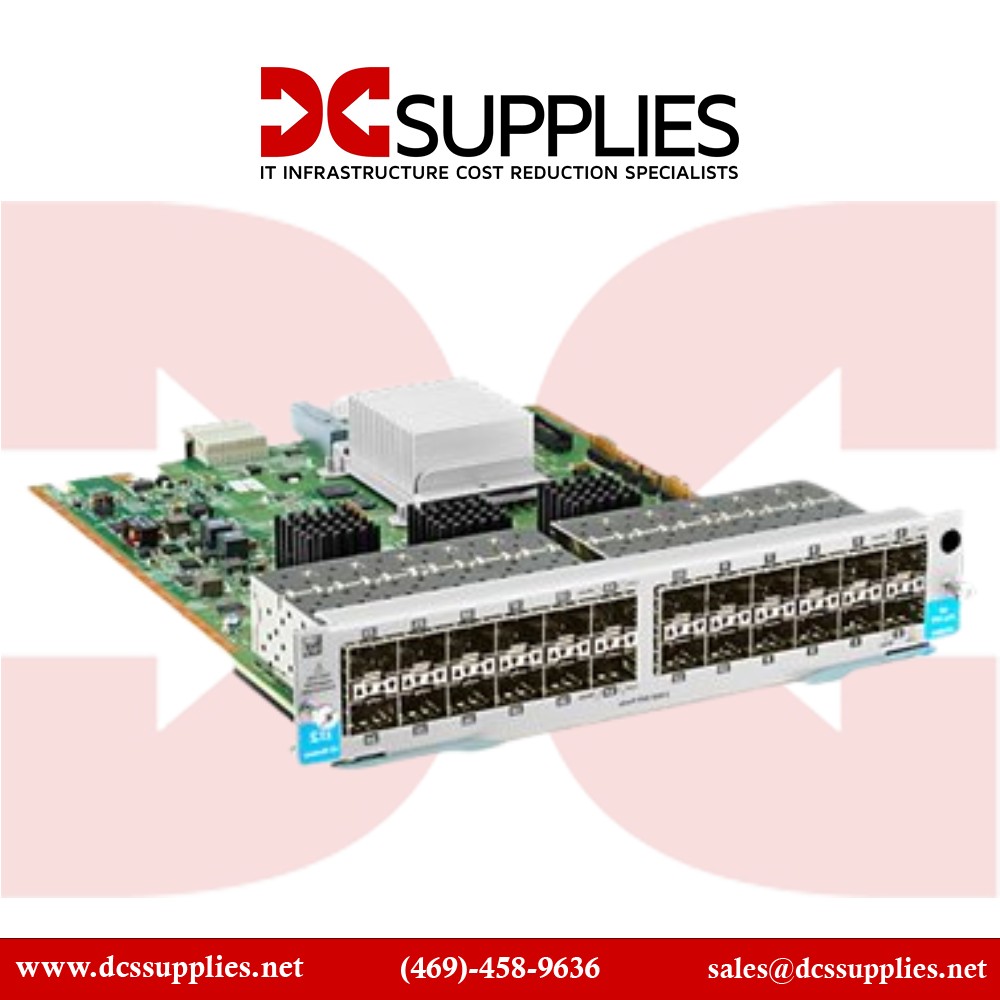

HPE 790957-001 Virtual Connect expansion module 24 Port View larger
Previous Next

HPE 790957-001 Virtual Connect 16Gb 24-Port Fibre Channel Module

790957-001

New

High-performance 24-port 16Gb/s

×




Detailed Specifications

HPE 790957-001

Virtual Connect 16Gb 24-Port Fibre Channel Module

The HPE 790957-001 Virtual Connect 16Gb 24-Port Fibre ChannelModule is a high-performance, low-latency connectivity solution designed for HPE c-Class BladeSystem enclosures. This module enables seamless integration between server blades and SAN fabrics, providing 24 Fibre Channel ports with 16Gb/s throughput. Ideal for enterprises requiring robust storage connectivity, it supports auto-negotiation, trunking, and full-duplex mode, ensuring efficient data transfer and minimal downtime.

Features

Designed for scalability and flexibility, the HPE 790957-001 module supports various Fibre Channelprotocols, including FC-AL, FC-AL-2, FC-FG, and FC-GS, among others. Its plug-in module form factor allows for easy installation and maintenance within HPE  BladeSystem enclosures. With a maximum frame size of 2148 bytes and a fabric latency of 700 ns, it delivers high-performance connectivity suitable for demanding applications and virtualized environments.

Advanced Options

The HPE 790957-001 module is engineered for high availability and performance. Its robust design ensures continuous operation, even in the event of component failure. The module's high throughput and low latency make it suitable for demanding applications

Product Key Features

  • High Port Density: 24 x 16Gb/s FFibre Channel ports

  • Flexible Connectivity: Supports various Fibre Channell protocols

  • Enhanced Performance: Maximum frame size of 2148 bytes

  • Low Latency: Fabric latency of 700 ns

  • Easy Installation: Plug-in module form factor

  • Advanced Features: Supports auto-negotiation, trunking, and full-duplex mode

Reliability & Performance

that require rapid data processing and minimal delay. Its support for various Fibre Channel protocols provides flexibility in network design and integration.

Key Features :

  • High Port Density: 24 x 16Gb/s FFibre Channelports

  • Flexible Connectivity: Supports various Fibre Channelprotocols

  • Enhanced Performance: Maximum frame size of 2148 bytes

  • Low Latency: Fabric latency of 700 ns

  • Easy Installation: Plug-in module form factor

  • Advanced Features: Supports auto-negotiation, trunking, and full-duplex mode

SpecificationDetails
Model Number 790957-001
Type Fibre Channel Module
Ports 24 x 16Gb/s Fibre Channel
Form Factor Plug-in Module
Max Frame Size 2148 bytes
Fabric Latency 700 ns
Protocols Supported FC-AL, FC-AL-2, FC-FG, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI
Auto-Negotiation Yes
Trunking Yes
Full Duplex Mode Yes
