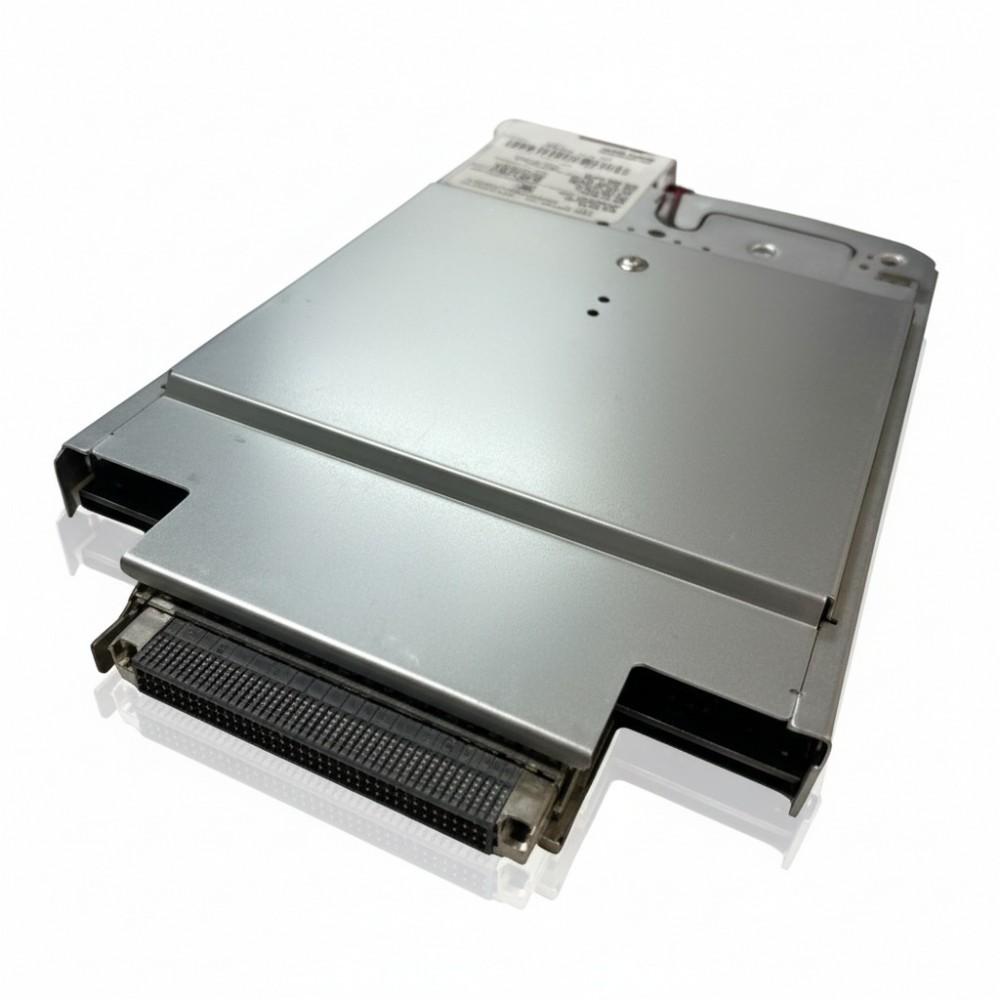

HPE P08476-B21 Virtual Connect 16GB 24 Port expansion module View larger

HPE P08476-B21 Virtual Connect 16Gb 24-Port Fibre Channel Expansion Module

New

24‑port 16 Gb/s Fibre Channel SAN module
×




  • New

Detailed Specifications

HPE P08476‑B21 Virtual Connect 16 Gb 24‑Port Fibre Channel Module

Overview

The HPE P08476‑B21 is a high‑density Fibre Channel interconnect module designed for integration within the HPE BladeSystem c‑Class infrastructure and compatible Virtual Connect chassis. It provides 24 Fibre Channel ports operating at up to 16 Gb/s per port, enabling large‑scale SAN connectivity between blade servers and external storage fabrics. As a fully modular blade‑insertable switch module, it supports server‑to‑SAN connections, zoning for virtual machines, and simplifies SAN fabric design in converged compute‑storage environments. The module is suited for enterprise data‑centre deployments where multiple servers require high‑throughput, low‑latency fibre channel connectivity, and fits directly into the server blade mid‑plane infrastructure. It integrates with HPE Virtual Connect management tools for fabric abstraction and supports the consolidation of SAN links in blade‑based compute clusters.

Key Features

  • 24 × 16 Gb/s Fibre Channel ports for high‑throughput SAN links

  • Blade‑insertable module for HPE BladeSystem c‑Class / Virtual Connect chassis

  • Supports VM‑aware SAN zoning and fabric simplification

  • Designed for converged server‑storage blade infrastructure with high port density

Technical Specifications

SpecificationValue
Brand HPE
Part Number P08476‑B21
Product Type Virtual Connect 16 Gb 24‑Port FC Module
Fibre Channel Port Speed Up to 16 Gb/s per port
Port Count 24
Module Form Factor Blade‑insertable module
Compatible Platform HPE BladeSystem c‑Class / Virtual Connect chassis
Zoning Support VM‑aware SAN zoning
Media Type Fibre Channel optical
Switching Fabric Capability High‑density port fabric module
Dimensions (W×D×H) ~7.6″ × ~10.6″ × ~1.1″
Weight ~3.3 lb
Use Case SAN connectivity in converged infra
Status Retired/End‑of‑life
Compliance TAA‑compliant version available
Module Slot Interface Chassis mid‑plane interconnect bay
