Detailed Specifications

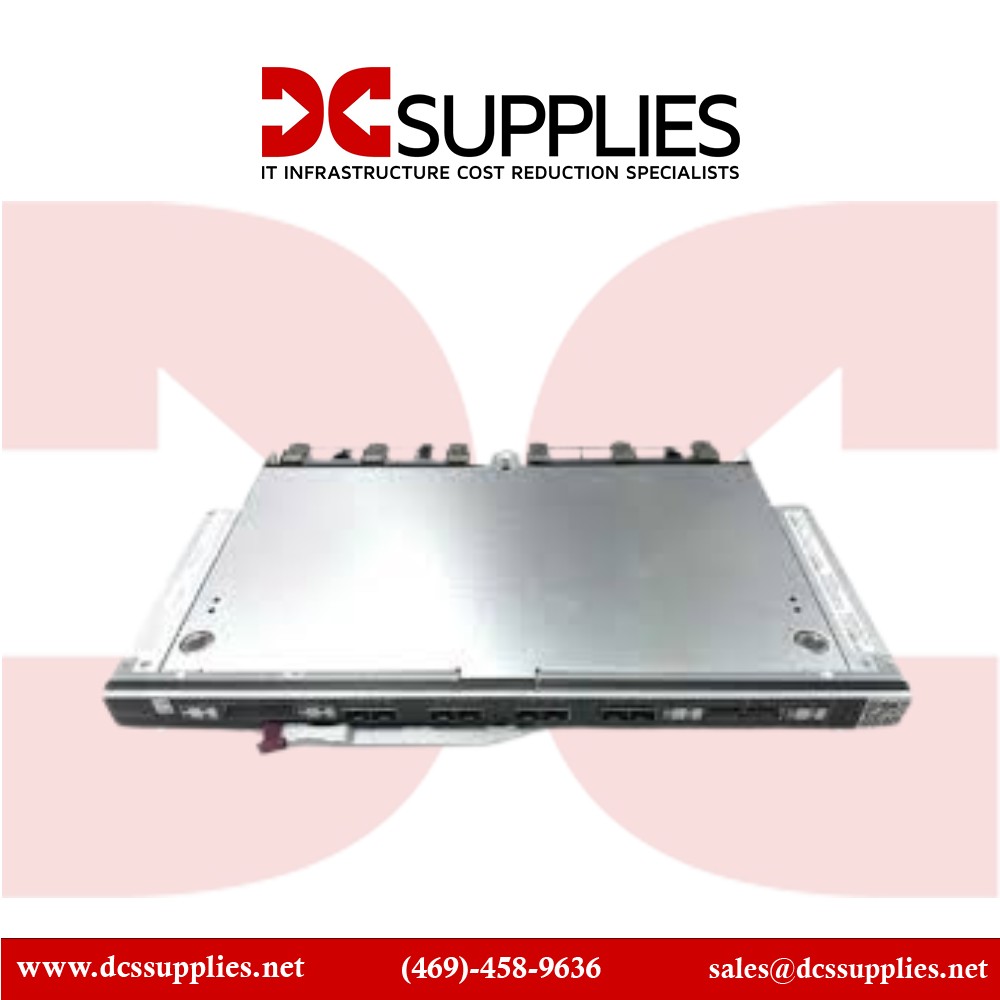

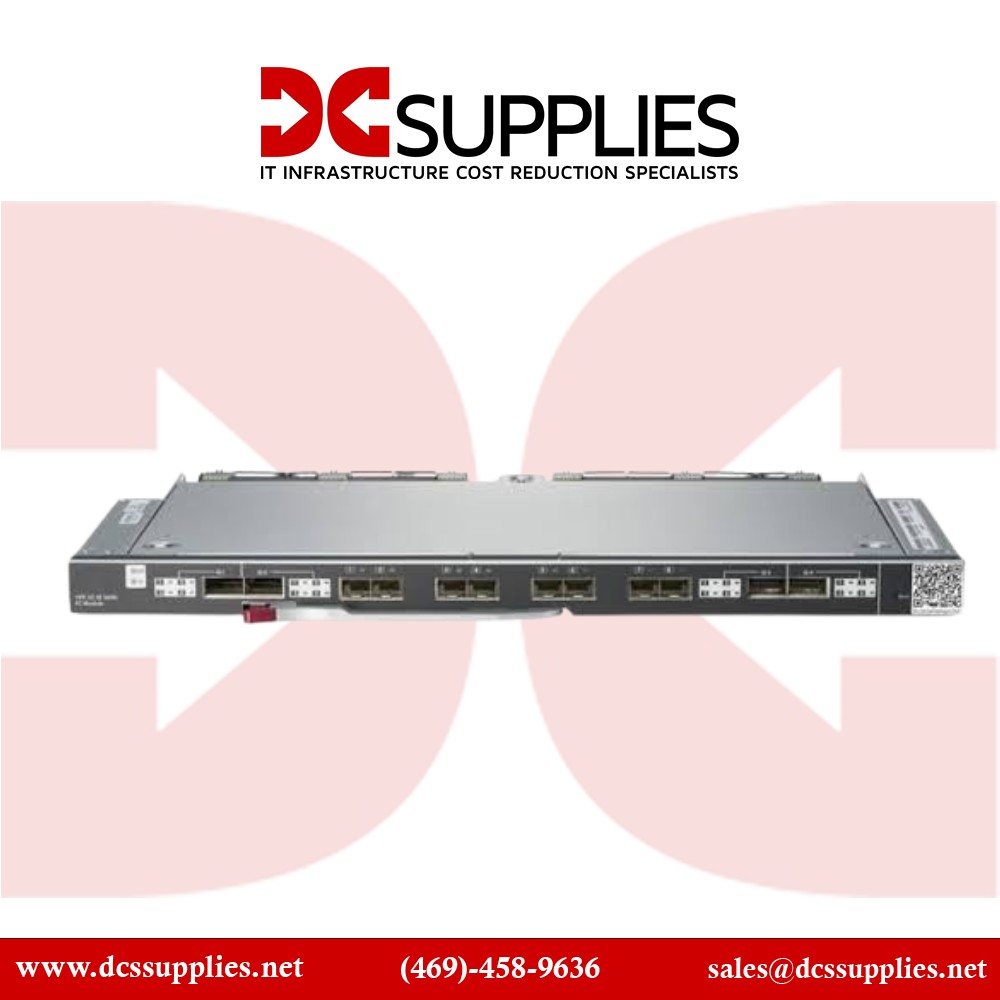

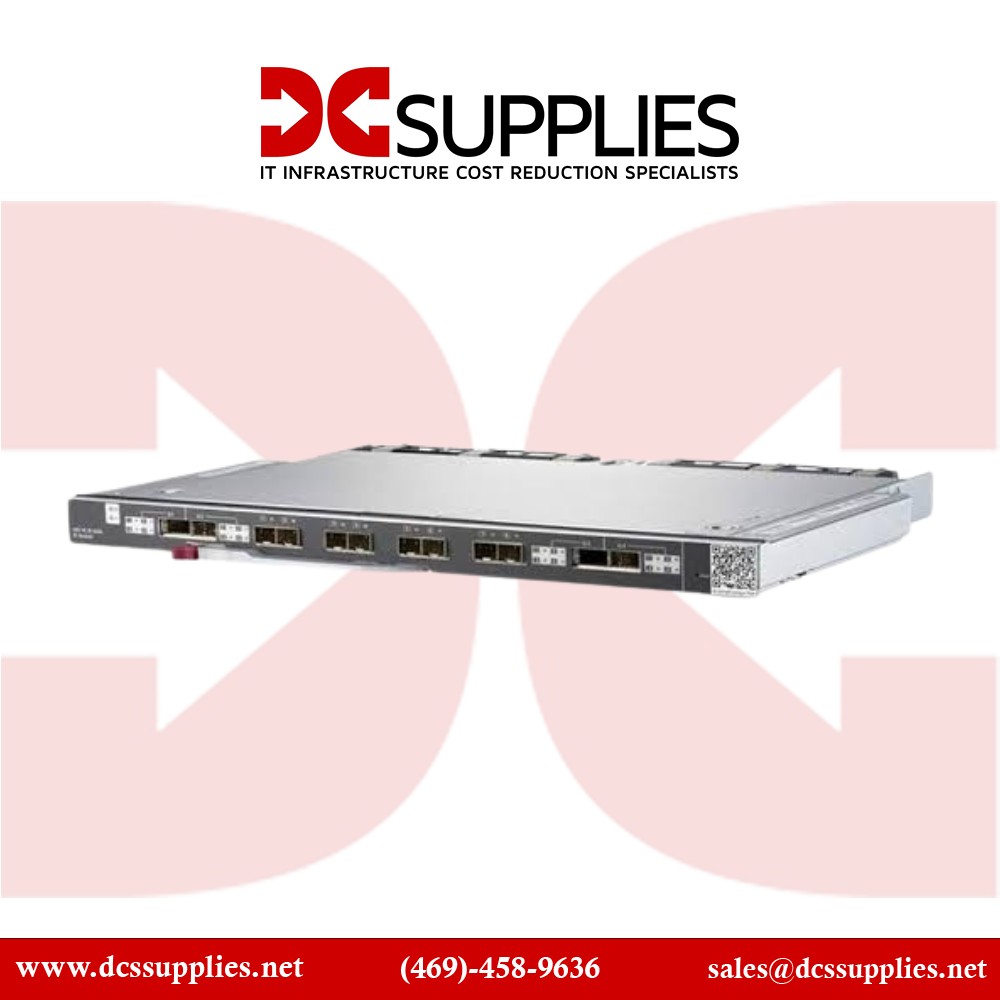

HPE 785338-001 Virtual Connect SE 16 Gb FC Module
Overview
The HPE 785338-001 is a high-density Fibre Channel switch module designed for use within the HPE Synergy / Virtual Connect SE chassis family in data-centre storage fabrics. It delivers 16 Gb/s per port across up to 24 active Fibre Channel ports (via four quad SFP+ or equivalent zones), enabling large-scale SAN connectivity for storage arrays, servers and backup systems. The module plugs into a chassis back-plane and supports zoning, virtual machine awareness and SAN switching in converged infrastructure environments. The unit is intended for enterprise SAN deployments where blade-based compute, converged infrastructure and simplified SAN topology are required.
Key Features
Up to 24 Fibre Channel ports at 16 Gb/s each (in supported configuration)
Designed for HPE Synergy / Virtual Connect SE modular chassis
VM-aware zoning and SAN fabric integration for converged compute/storage environments
High-port-density module supports blade-infrastructure SAN connectivity
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 785338-001 |
| Product Type | Virtual Connect SE 16 Gb Fibre Channel Module |
| Fibre Channel Speed | 16 Gb/s per port |
| Maximum Device Ports | Up to 24 ports (based on module slot and optics) |
| Module Form Factor | Chassis-insertable blade for Virtual Connect SE |
| Typical Use Case | SAN fabric module in converged infrastructure |
| Zoning Support | VM-aware SAN zoning |
| Port Media | Fibre Channel optical (SFP+/QSFP etc) |
| Compatible Platform | HPE Synergy / Virtual Connect SE chassis family |
| Port Density Advantage | High-density SAN ports in modular data-centre design |
