Detailed Specifications

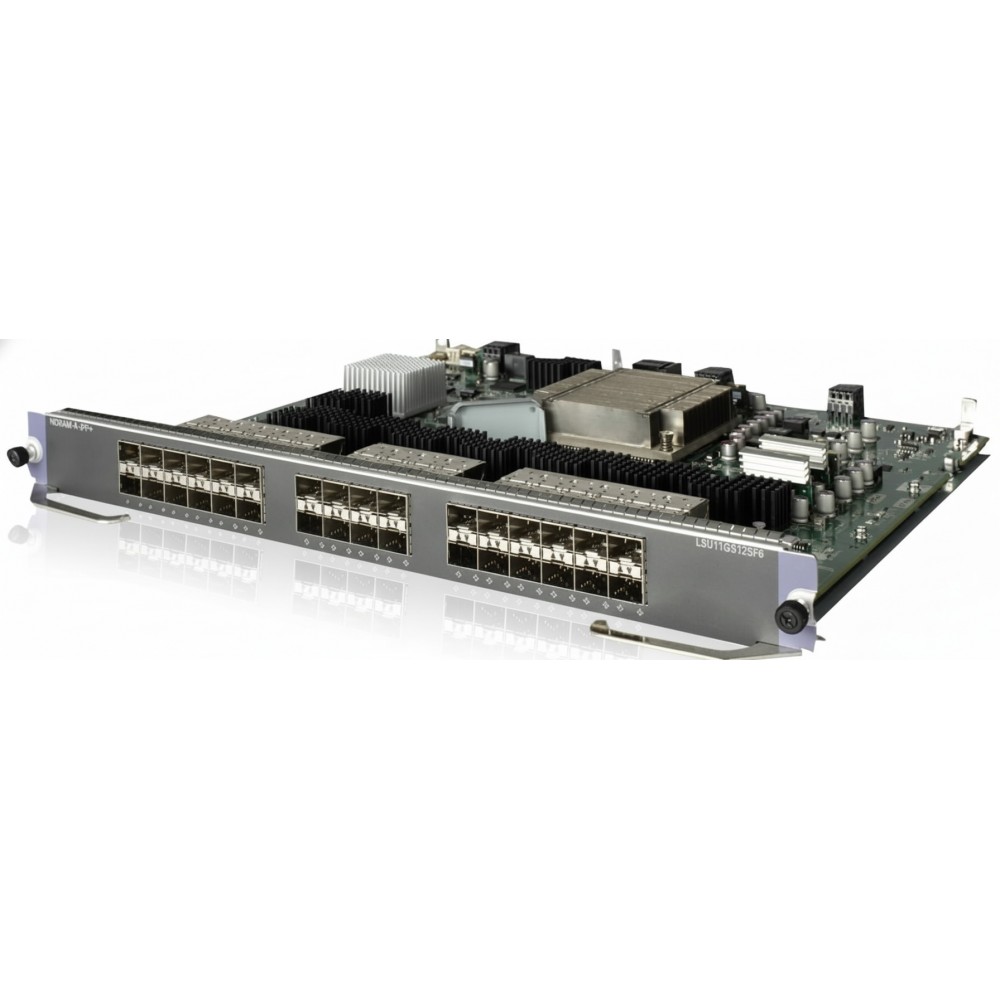

HPE JC755A 10GbE 32-Port SFP+ Switch Module
Overview
The HPE JC755A is an expansion module designed for the HPE FlexNetwork 10500 series chassis, providing 32 active 10 Gigabit Ethernet SFP+ ports to significantly scale uplink or aggregation bandwidth in enterprise core or distribution switches. It enables network engineers to support high-density 10 Gb traffic, optically link multiple wiring closets or data-centre pods, and maintain full line-rate performance across all ports. The module inserts into the 10500 chassis slot and integrates with the chassis fabric, making it suitable for campus core, high-capacity aggregation or small data-centre core roles where modular expansion is required.
Key Features
32 × 10 Gb/s SFP+ ports for high-density optical connectivity
Designed for the HPE FlexNetwork 10500 series chassis platform
Full line-rate 10 Gb performance across all ports
Optimised for core/aggregation deployments needing modular scalability
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JC755A |
| Product Type | Expansion Module - 10 GbE Switch Module |
| Port Count | 32 |
| Port Type | 10 Gb/s SFP+ |
| Compatible Chassis | HPE FlexNetwork 10500 series |
| Maximum Link Speed | 10 Gb/s per port |
| Switching Capacity | Full-line-rate at 10 Gb per port |
| Dimensions (W×D×H) | 20.7″ × 21.3″ × 8.3″ (≈ 52.58 cm × 54.1 cm × 21.08 cm) |
| Weight | ~14 lb (~6.34 kg) |
| Form Factor | Hot-plug chassis-insertable module |
| Port Media Type | SFP+ (optical or DAC) |
| Typical Use Case | Core/aggregation in modular switch chassis |
