Detailed Specifications

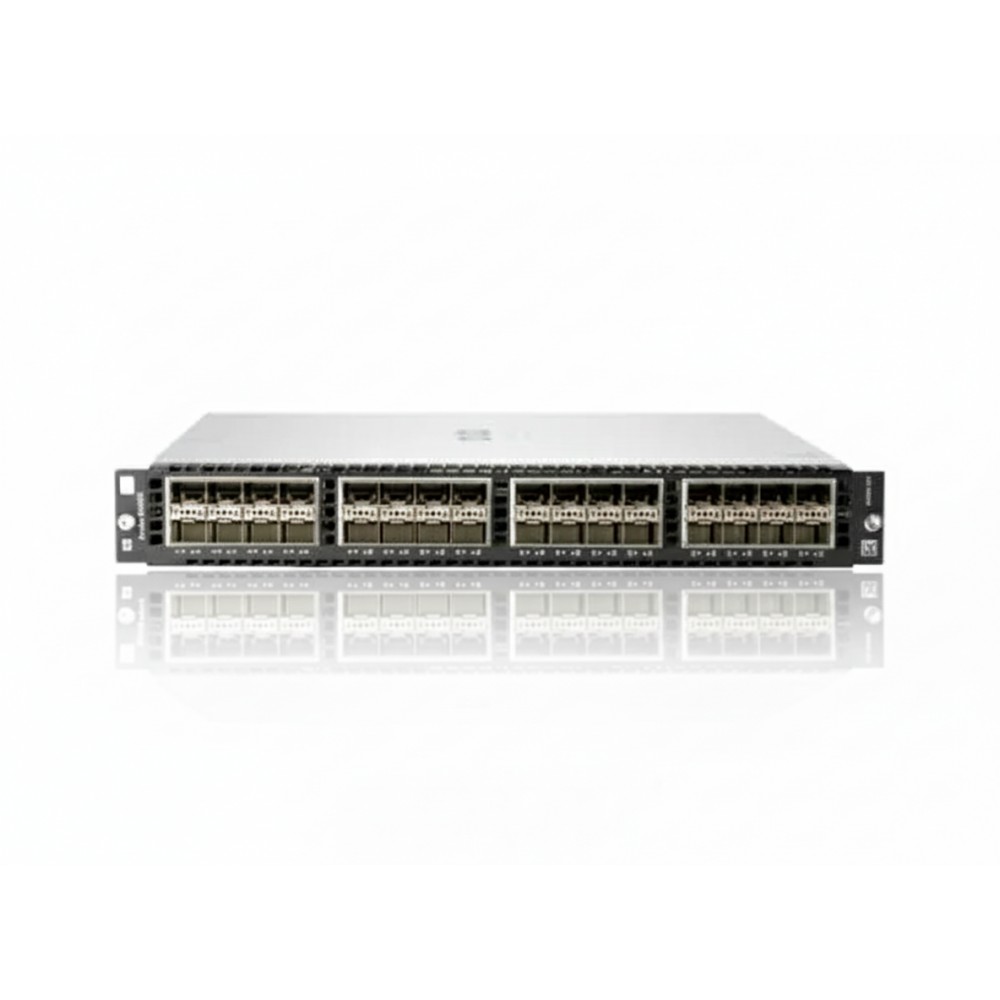

HPE Aruba JL687A - 8400X-32Y 32-Port 1/10/25G SFP/SFP+/SFP28 Module
Overview :
The HPE JL687A is a line-module expansion card designed for use in the HPE/Aruba 8400 series chassis, used by network engineers to extend port density with high-speed optics. It provides 32 ports that support 1G, 10G and 25G connectivity via SFP, SFP+ or SFP28 interfaces, enabling flexible upgrade paths and mixed-speed deployments. The module targets campus core and data-centre aggregation or leaf/spine deployments where high throughput and future-proofing are required. It integrates into the 8-slot 8400X chassis and leverages the AOS-CX operating system for programmability, telemetry and automation.
Key Features :
32 ports supporting 1/10/25 GbE via SFP/SFP+/SFP28
Supports 25GBase-X optics and DAC/SFP28 cables
Compatible with Aruba 8400X chassis and AOS-CX architecture
Full line-rate switching performance in slot module design
Enables high-density aggregation in campus or data-centre environments
Specifications :
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL687A |
| Product Type | Expansion Module |
| Number of Ports | 32 ports |
| Supported Speeds | 1 Gb/s, 10 Gb/s, 25 Gb/s |
| Interface Type | SFP, SFP+, SFP28 |
| Module Form Factor | Plug-in line card |
| Dimensions (inches) | 1.7″ H × 11.9″ W × 16.6″ D (approx) |
| Weight (lbs) | ~10.8 lbs (approx) |
| Compatible Chassis | Aruba/HPE 8400 8-slot chassis |
| Cooling Requirement | Air-cooled rack-mount chassis |
| Transceiver Support | SFP/SFP+/SFP28 up to 25GBase-X |
| Slot Switching Capacity | 1.2 Tbps/slot (8400 chassis spec) |
| Module VoQ Memory | 4 GB for JL687A module |
| Rack Mounting | Fits EIA-standard 19″ rack |
