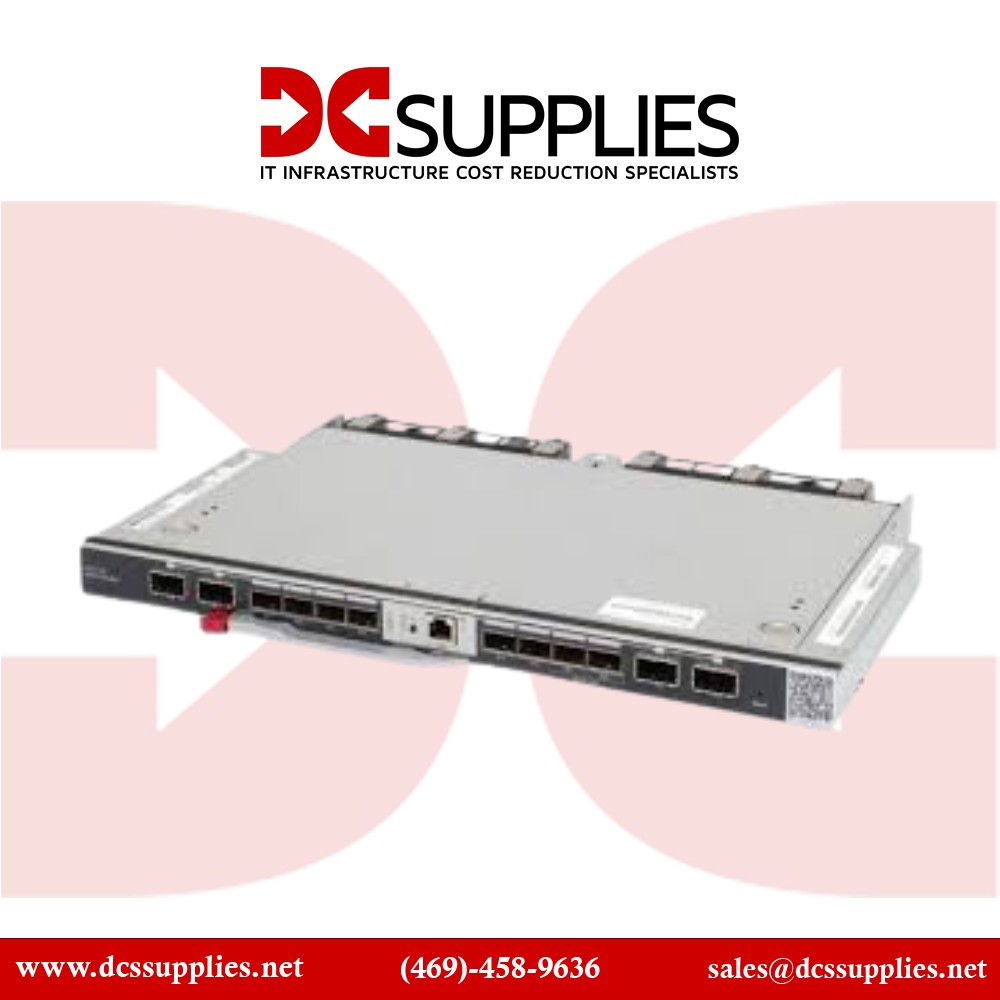

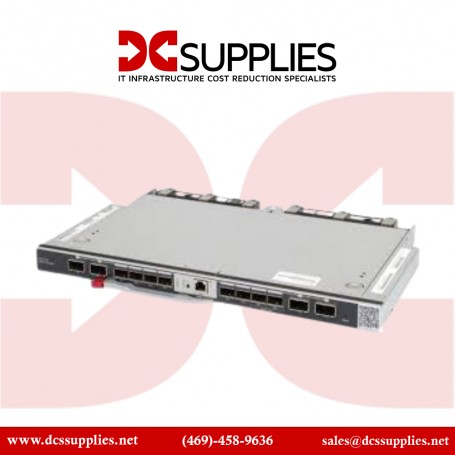

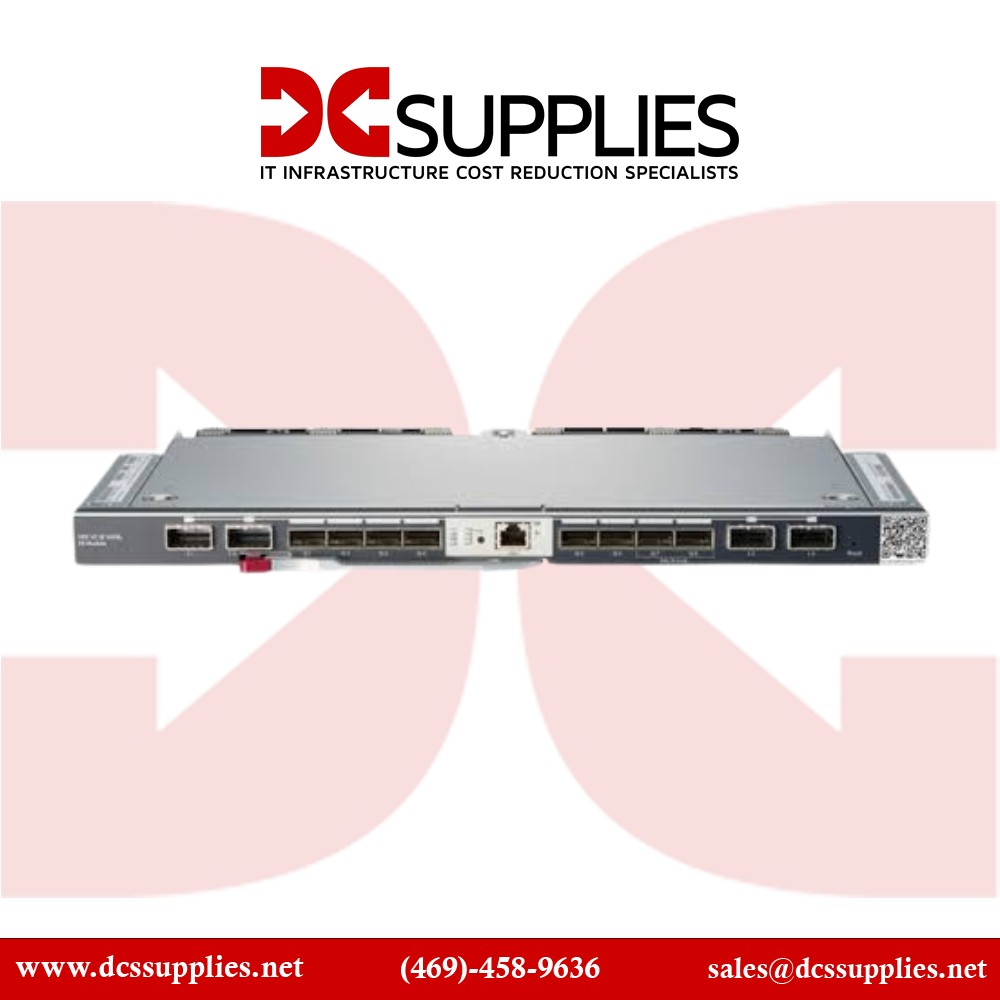

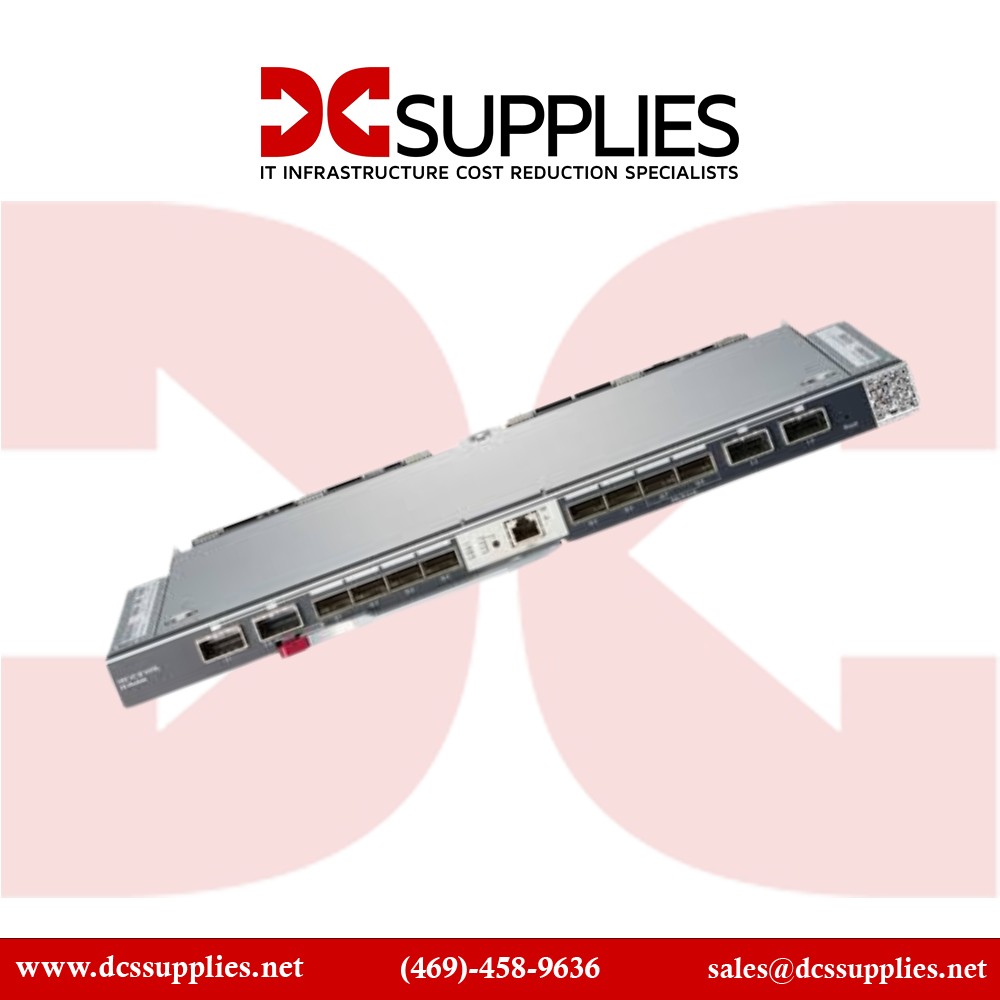

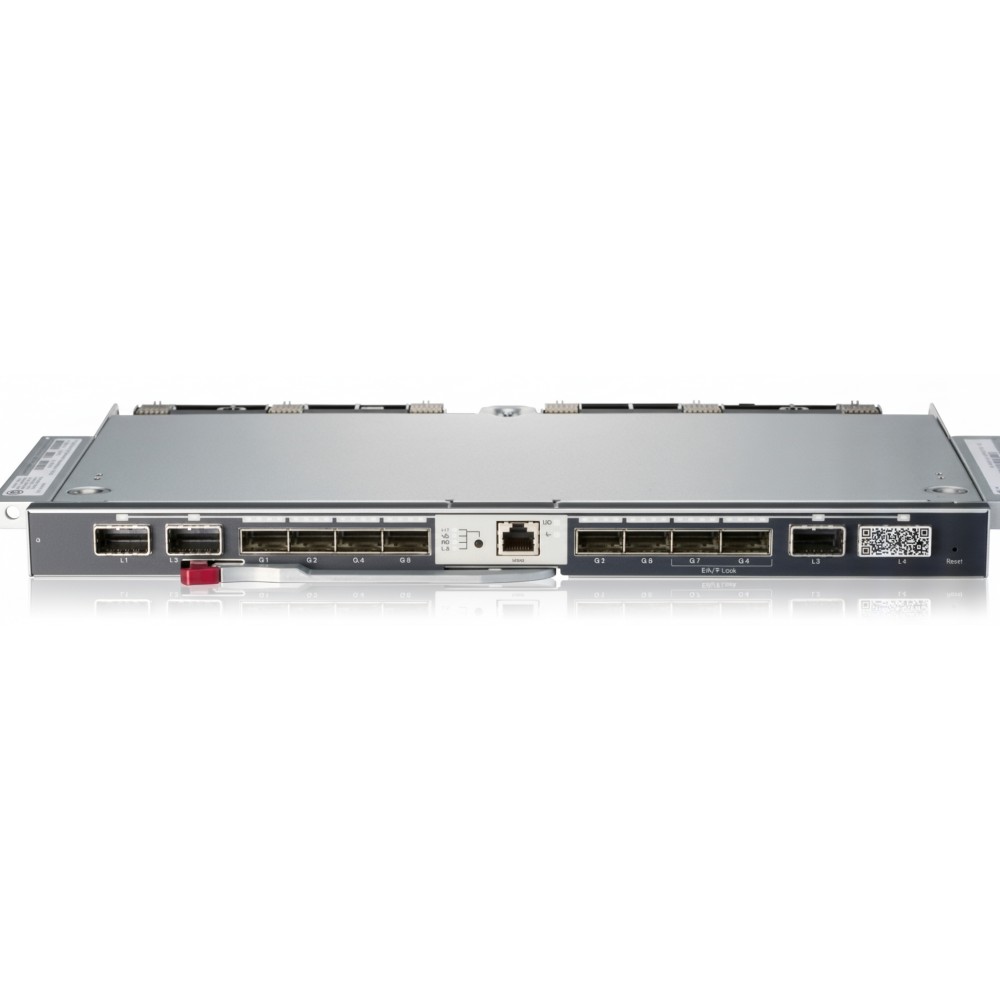

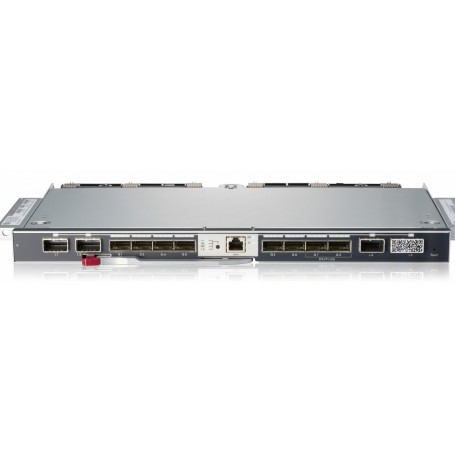

HPE794502-B23

Virtual Connect SE 40 Gb F8 Expansion Modulefor Synergy

The HPE794502-B23 Virtual Connect SE 40 Gb F8 module is a high-performance, managed switch blade designed for seamless integration into HPESynergy composable infrastructure frames. Serving as the master switching fabric, it provides scalable, low-latency east-west traffic consolidation across up to six Synergy frames using the master/satellite architecture. Supporting comprehensive FlexFabric capabilities, it converges LAN and Fibre Channel traffic from compute modules, vastly reducing cabling complexity and eliminating redundant top-of-rack switches. With twelve 10/20 Gb downlinks to server mezzanine NICs and six configurable QSFP+ uplink ports, this module is ideal for virtualized enterprise workloads, large-scale storage fabrics, and scalable cloud platforms.

Features

Plugged into a Synergy 12000 frame's interconnect bay, the 794502-B23 module offers a non-blocking 2.56 Tbps fabric with sub-microsecond latency (~1 μs at 100 Mb/s). It features twelve midplane downlinks supporting dual-port Converged Network Adapters at 10 Gb or 20 Gb speeds×each downlink capable of flex-NIC/flex-HBA virtualization to split I/O lanes across multiple virtual functions via Flex-10/20 virtualization standards The module supports optional Fibre Channel traffic via licensed FlexHBA/FC paths.

Advanced Options

Upstream, six QSFP+ external uplinks can be configured as 40 Gb links or split into four 10 Gb connections using QSFP-to-SFP+ breakout cables. Additionally, two QSFP+ ports can be designated for M-LAG redundancy. Four interconnect link ports (120 Gb) enable seamless networking across satellite frames via Virtual Connect stack architecture . The module enables jumbo frames up to 9216 bytes and maintains a 288,000 MAC address table for large fabric deployments It integrates into HPEOneView for orchestration and provisioning, eliminating manual reconfiguration during server or compute node swaps. The module supports jumbo frames, LACP, VLAN segmentation, and full fabric visibility via Composer and OneView×enabling predictable operation under dynamic compute configurations. With robust optical interconnects and low failure points, the module delivers high availability and reduced hardware sprawl. Its modular, plug-and-play design simplifies upgrades and frame expansion, while maintaining uptime and minimizing reconfiguration risk.

Product Key Features

• 12 × 10/20 Gb Ethernet downlink ports to Synergy compute nodes

• 6 × Configurable QSFP+ uplink ports (40 Gb or split 4×10 Gb)

• 2 × QSFP+ ports for 40 Gb M-LAG redundancy

• 4 × 120 Gb interconnect links for multi-frame scaling

• 2.56 Tbps non-blocking fabric; ~1 µs latency

• Supports jumbo frames (up to 9216 bytes), VLAN, SNMP management

---

Reliability & Performance

Engineered for composable infrastructure, this module delivers enterprise-grade reliability within Synergy environments. Its non-blocking 2.56 Tbps switching fabric enables consistent performance under high VM density or storage workload conditions. The ultra-low latency (~1 µs) between server and network uplinks improves application responsiveness and reduces inter-node communication delays With built-in management via HPEOneView and SNMP support, network provisioning is automated and scalable. Master/satellite pairing enables network fabric extension across up to three Synergy frames, reducing the need for external switches and simplifying administration. Flex-10/20 virtualization and split uplinks support fine-grained resource allocation, maximizing port utilization without sacrificing throughput.

Key Features :

• 12 × 10/20 Gb downlink ports

• QSFP+ uplinks (6 external + 2 M-LAG)

• 4 × 120 Gb interconnect links for satellite expansion

• 2.56 Tbps non-blocking switching fabric

• Low ~1 μs latency, jumbo frame support

• Automated provisioning via OneView, SNMP

Specification	Details
Model Number	794502-B23 (also 813174-001)
Product Type	40 Gb Managed FlexFabric Switch Expansion Module
Downlink Ports	12 × 10/20 Gb Ethernet to Synergy compute nodes
Uplink Ports	6 × QSFP+ configurable (40 Gb or split 10 Gb)
M-LAG Ports	2 × 40 Gb QSFP+ for redundancy
Interconnect Links	4 × 120 Gb links to satellite frames
Fabric Throughput	2.56 Tbps non-blocking switch fabric
Latency	~1 µs at 100 Mb/s
MAC Address Table Capacity	~288,000 entries
Jumbo Frames	Up to 9216 bytes
Management Interfaces	HPEOneView, SNMP v1/v2
Power Consumption	~240 W
Dimensions (shipping)	19.5″ × 15.5″ × 5.75″; weight ~5.4 kg
Operating Temperature	10 °C to 40 °C
Compatible Platforms	HPESynergy 12000 Frames with Virtual Connect architecture
