Detailed Specifications

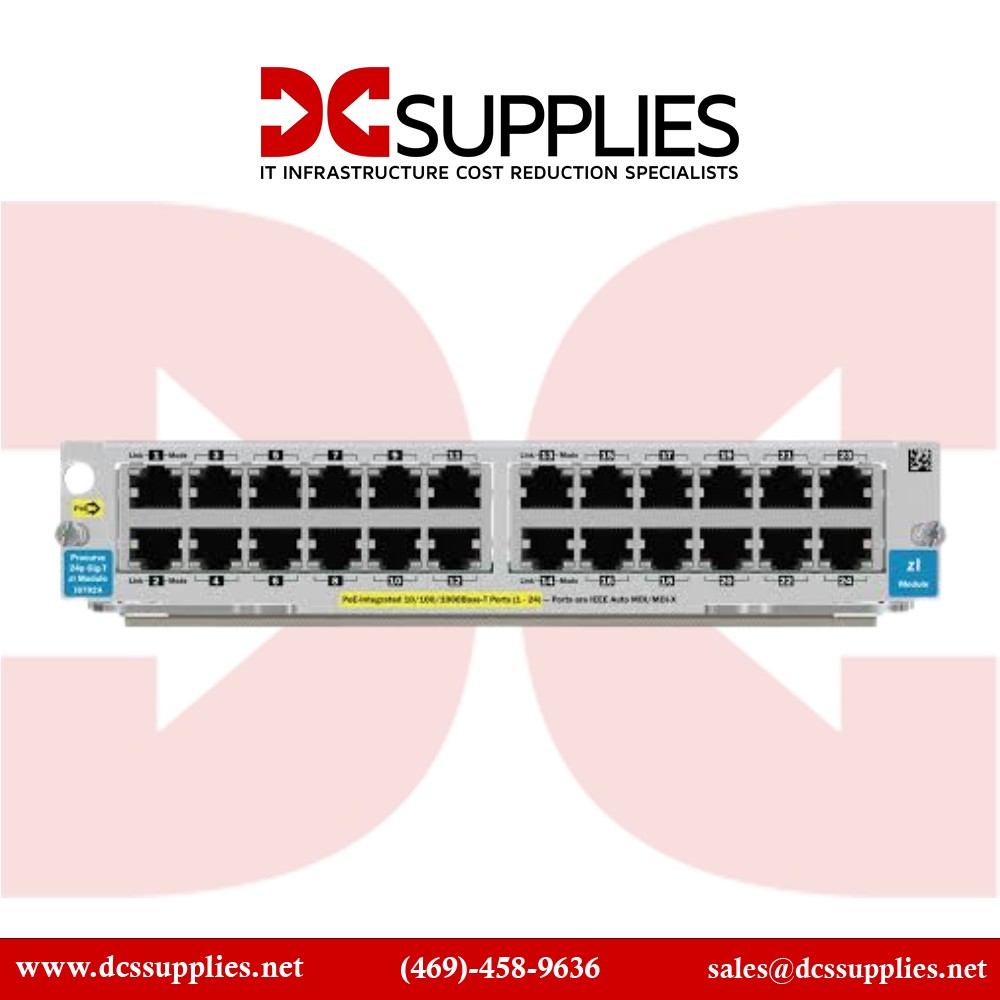

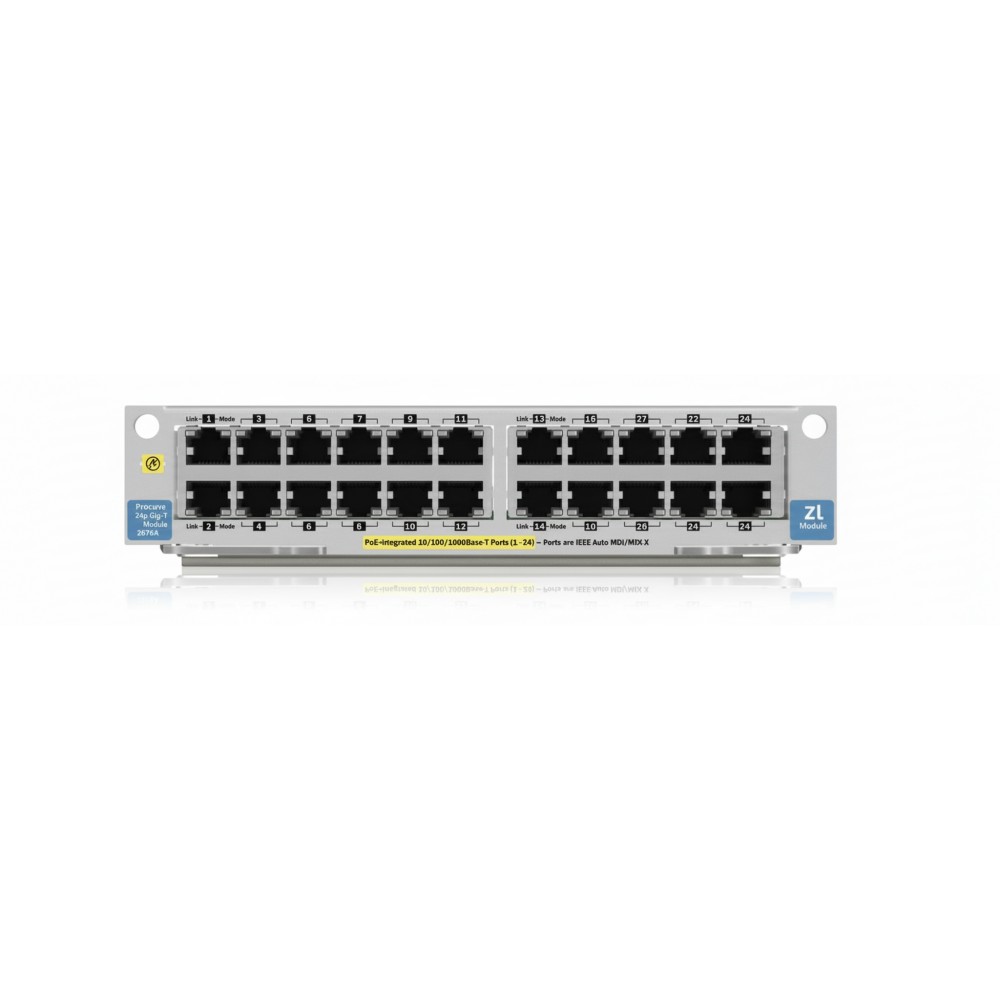

HP J8702A - 24-Port 10/100/1000 PoE zl Module
Overview :
The HP J8702A is an expansion module designed for the HP ProCurve 5400zl modular switch chassis, intended for network engineers deploying high-density PoE connectivity in enterprise access or wiring-closet environments. It offers 24 autosensing RJ-45 ports supporting 10/100/1000 Mbps speeds with IEEE 802.3af Power-over-Ethernet capability, providing both data and power delivery over the same cable. This module fits into a 5400zl chassis slot and is suitable for campus wiring closets, branch offices, or edge aggregation where PoE for devices such as IP phones or wireless access points is required. The module operates under the same management and monitoring infrastructure as the chassis, allowing integration into existing HP network architectures.
Key Features :
24 autosensing Gigabit RJ-45 ports with PoE support
Auto-MDI/MDIX on all 24 copper ports
Full-duplex only at 1000Base-T, half or full at 10/100
Form-factor compatible with HP 5400zl series chassis
Weight approximately 2.16 lbs, dimensions ~10.3″ × 8.1″ × 1.8″
Specifications :
| Specification | Detail |
|---|
| Brand | HP |
| Part Number | J8702A |
| Product Type | 24-Port 10/100/1000 PoE zl Module |
| Port Count | 24 RJ-45 ports |
| Supported Speeds | 10/100/1000 Mbps |
| PoE Standard | IEEE 802.3af |
| Auto-MDI/MDIX | Yes |
| Dimensions (W×D×H) | 8.1 in × 10.3 in × 1.8 in |
| Weight | 2.16 lbs |
| Media Type | Category 5 (5e recommended) UTP/STP |
| Compatible Chassis | HP 5400zl series |
| Duplex Mode | Half/full at 10/100; full only at 1000Base-T |
| Temperature Range | 32 °F to 131 °F (0 °C to 55 °C) |
| IEEE Standards | 802.3, 802.3u, 802.3ab |
| Data Sheet Revision | Access via HP 5400zl QuickSpecs |
