QNAP TL-D1600S-US 12-Bay SATA 6Gbps JBOD Desktop Expansion Enclosure

QNAP TL-D1600S-US – SATA JBOD Enclosure

Overview

The QNAP TL-D1600S-US is a high-capacity 16-bay desktop storage expansion enclosure designed to provide high-speed SATA connectivity for QNAP NAS, Windows, and Ubuntu servers. It utilizes SFF-8088 multi-lane SATA 6Gb/s connectivity rather than USB, ensuring that each drive operates at its full potential without the latency or overhead often found in traditional expansion units.

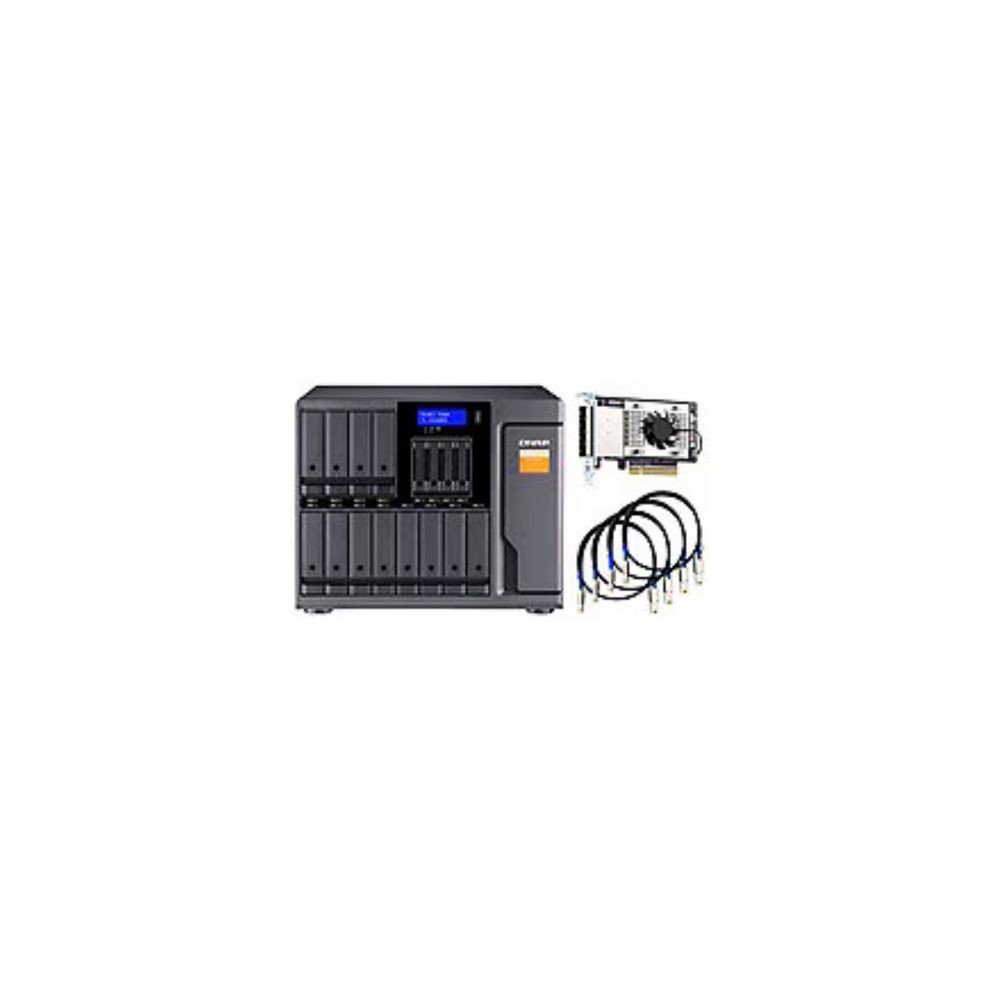

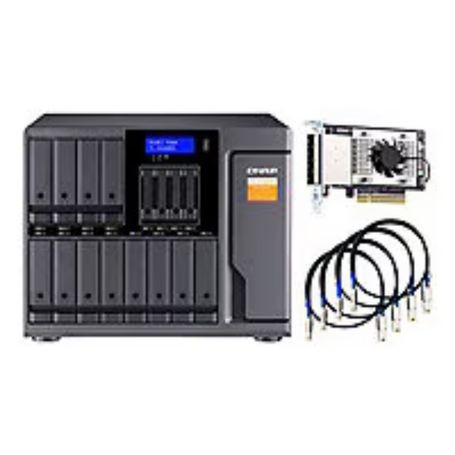

Technically, the unit features a hybrid drive bay layout, consisting of twelve 3.5-inch bays for high-capacity hard drives and four 2.5-inch bays specifically for high-speed SSDs. This allows for tiered storage configurations or high-performance caching in an expanded footprint. The enclosure is bundled with a QXP PCIe expansion card and SFF-8088 cables, providing a dedicated 64Gb/s link between the host and the storage unit.

Deployment is intended for professional creative studios and data-heavy workstations that require desktop-form-factor scaling. The TL-D1600S supports the QNAP JBOD Manager utility, allowing users to monitor disk health, fan speeds, and thermal status. This makes it an ideal solution for large-scale media archives, virtualization storage, and massive backup repositories where rack space is not available.

Do not attempt to use this as a standalone NAS; it has no network interface or CPU and requires a direct connection to a host via the included PCIe card. For maximum performance, ensure the QXP card is installed in a PCIe Gen 3 x8 slot on the host system to accommodate the full bandwidth of 16 SATA drives.

Key Features

• Hybrid 16-Bay Design: 12 x 3.5-inch and 4 x 2.5-inch bays for versatile HDD/SSD storage.

• SFF-8088 Connectivity: Multi-lane SATA 6Gb/s interface ensures raw drive performance.

• Bundled QXP Card: Includes a dedicated PCIe expansion card for seamless host integration.

• High-Speed Scaling: Provides up to 64Gb/s total bandwidth across all drive bays.

• Advanced Monitoring: QNAP JBOD Manager allows for granular hardware health tracking.

Specifications
