Detailed Specifications

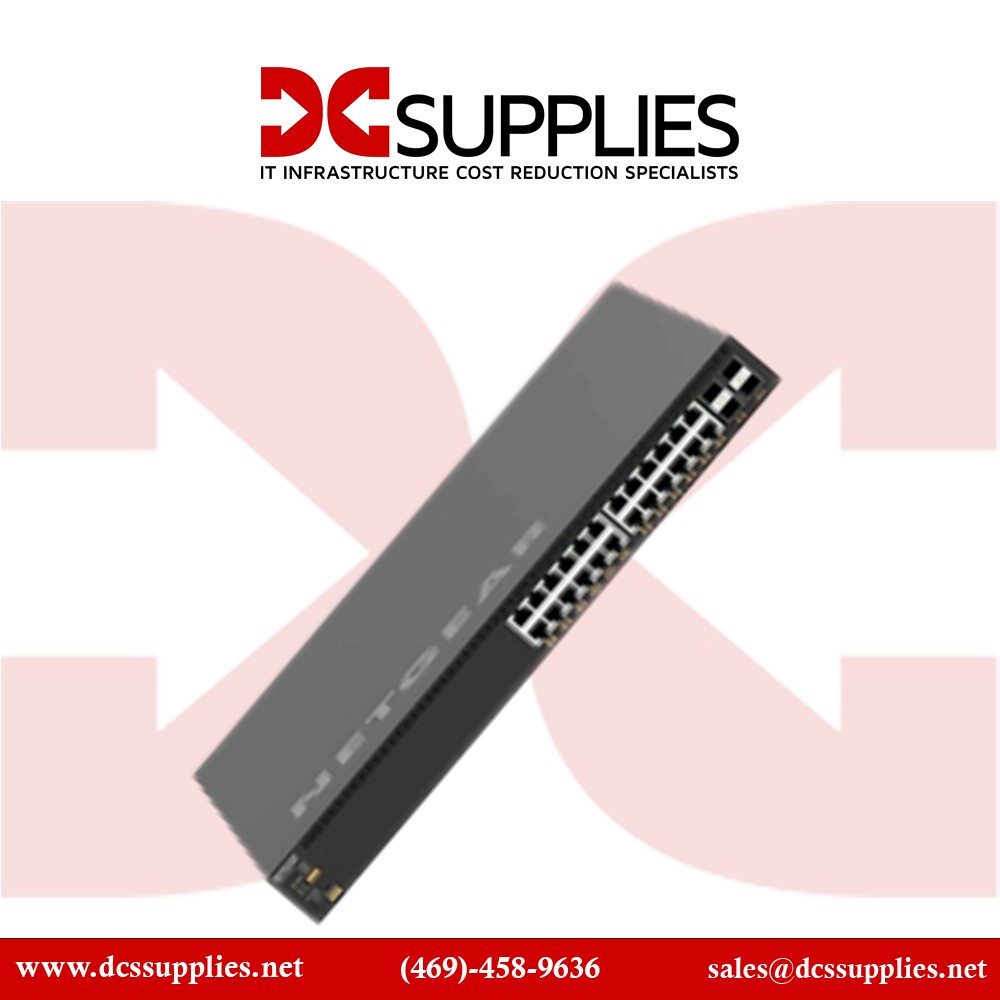

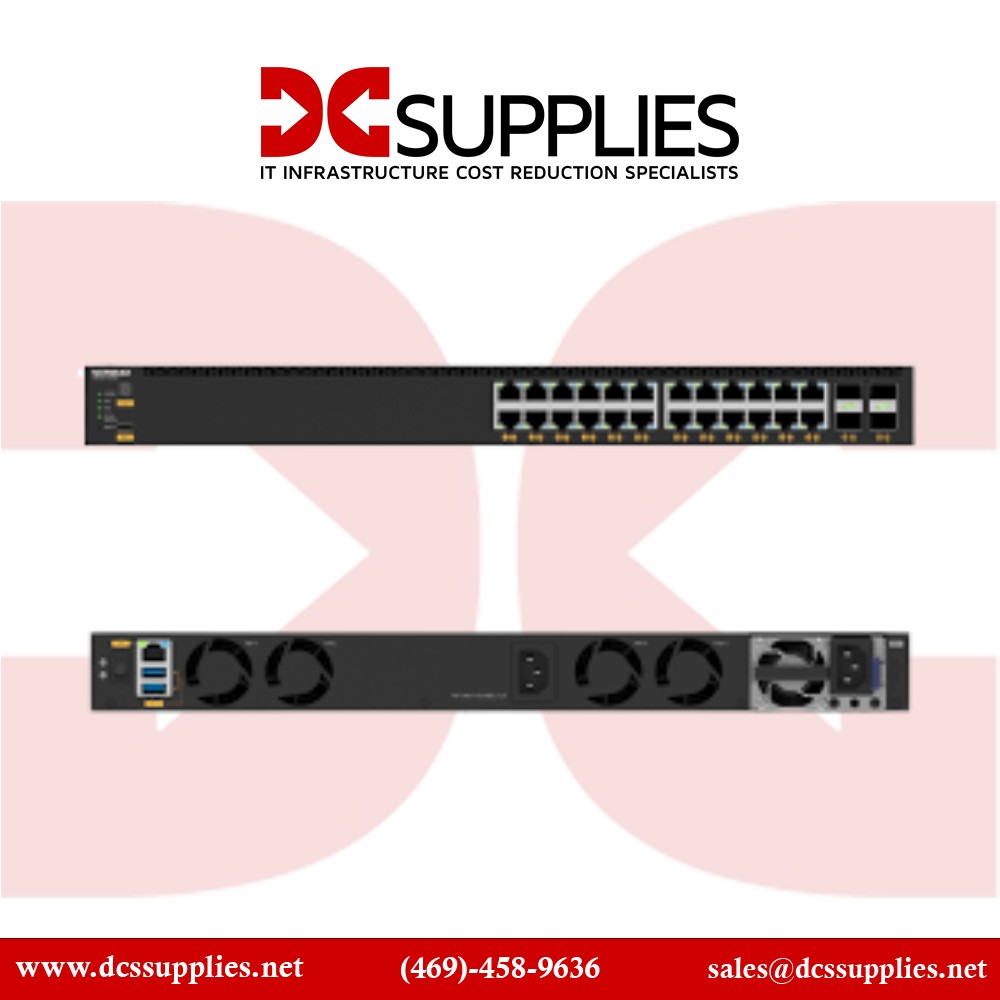

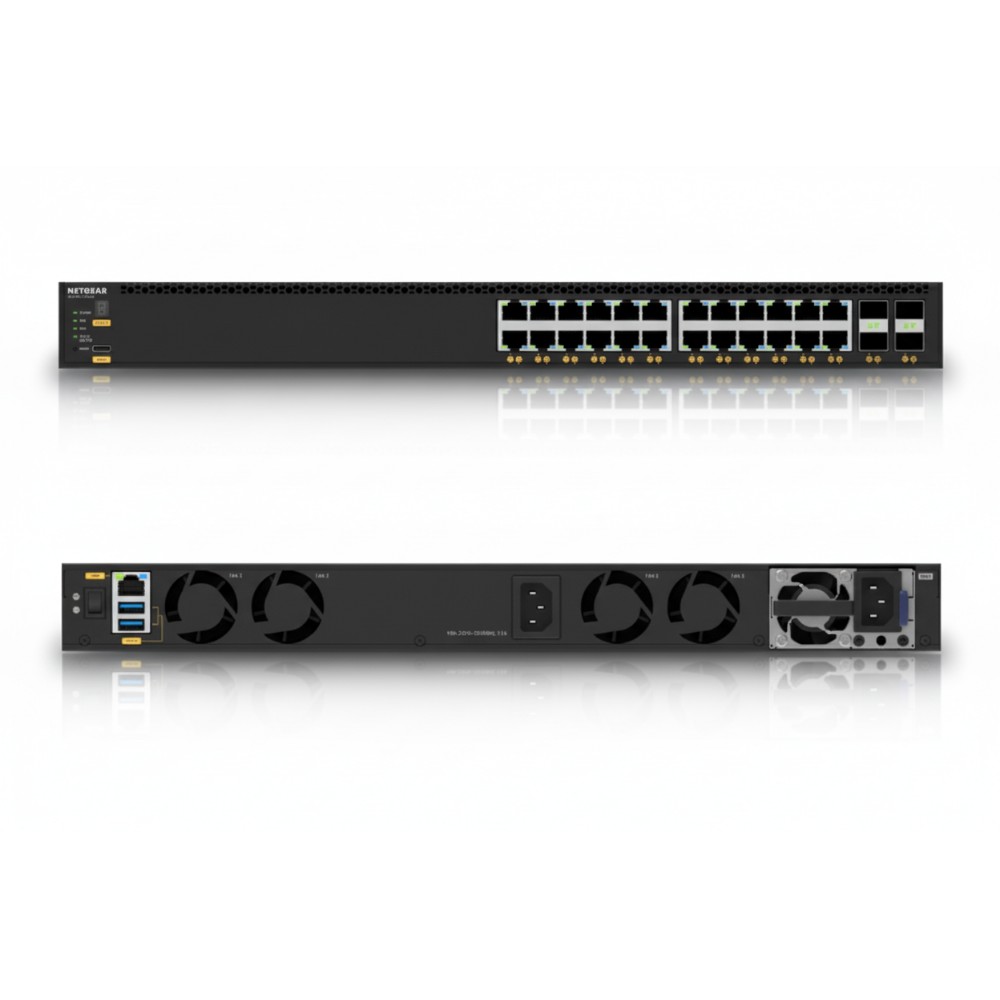

Netgear XSM4328CV-TAANES - Multi-Gig PoE Managed Switch
Overview :
The Netgear XSM4328CV-TAANES is a fully managed multi-gigabit switch designed for professional AV and IT deployments. It serves integrators, network engineers, and AV professionals needing high-density PoE to power devices like cameras, displays, and access points. It supports 24 RJ-45 ports capable of 1/2.5/5/10 Gbps with PoE budget, plus 4 SFP28 (25 Gbps) uplinks. It fits in enterprise wiring closets, AV racks, or edge distribution nodes. It also integrates with Netgear's management platforms and AV control environments under its M4350 series tooling.
Key Features :
24 RJ-45 multi-gig PoE++ ports (1-10 Gbps)
4 SFP28 25 Gbps uplink slots
576 W base PoE power budget
Modular internal PSU design with 1+1 redundancy option
Specifications
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | XSM4328CV-TAANES |
| Product Type | Fully managed multi-gig PoE switch |
| Port Configuration | 24 × RJ-45 (1/2.5/5/10 Gbps), 4 × SFP28 (25 Gbps) |
| Switching Capacity | 680 Gbps |
| Forwarding Rate | 505.92 Mpps |
| PoE Budget (base) | 576 W |
| Supported PoE Standard | IEEE 802.3at/af/at++ (PoE++) |
| Power Supply | Internal PSU, modular slot for optional redundant unit |
| Operating Temperature Range | 0 °C to 40 °C |
| Dimensions (HxWxD) | 43.1 × 440 × 450 mm |
| Weight | ~11.8 kg |
