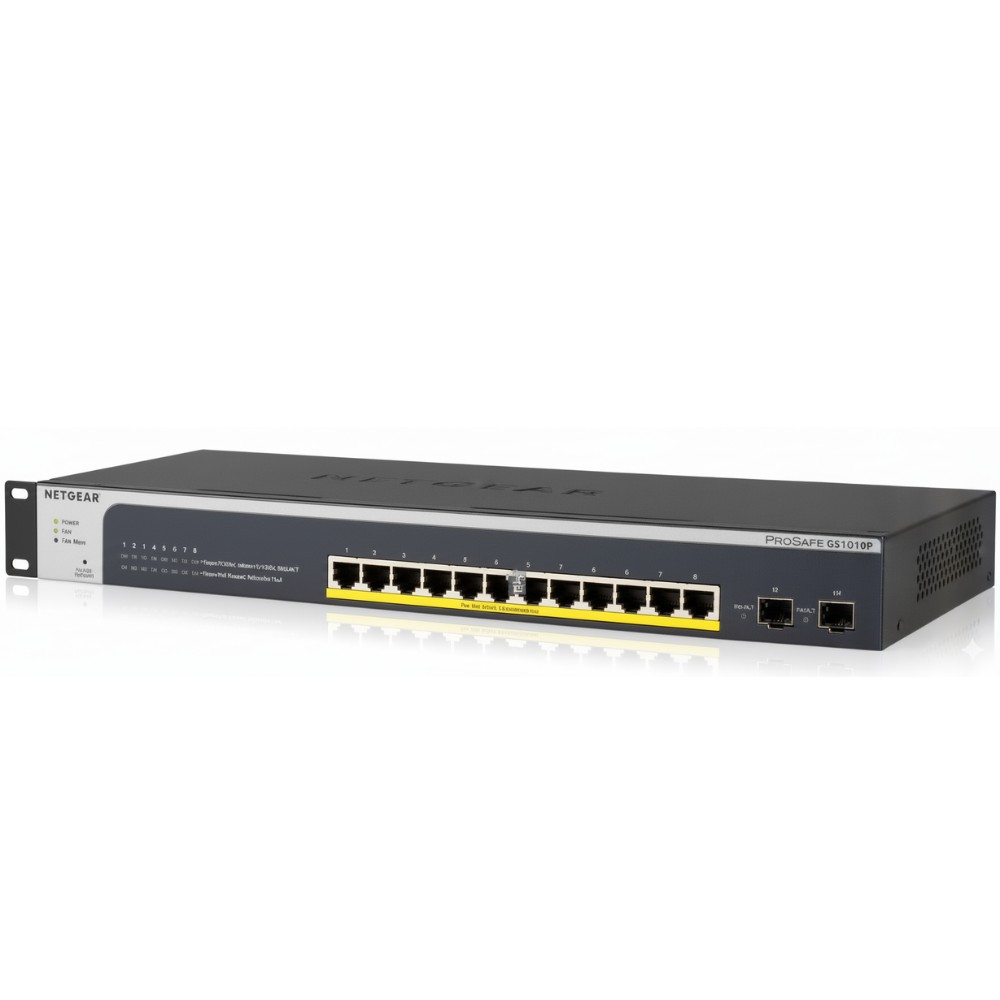

NETGEAR GS510TPP ProSAFE 8-Port 190W Ethernet Switch View larger

Netgear GS510TPP-100NAS 8-Port Gigabit PoE+ Smart Managed Pro Switch

New

In Stock

8-Port PoE+ Smart Switch with 190W
×




$325.00

  • New

Detailed Specifications

Netgear GS510TPP-100NAS 8-Port Gigabit PoE+ Smart Managed Pro Switch

Overview

The Netgear GS510TPP-100NAS is a high-density Gigabit Smart Managed Pro switch engineered for SMBs and branch offices that require significant Power over Ethernet (PoE+) capacity in a compact form factor. Featuring eight dedicated 10/100/1000BASE-T PoE+ ports and two dedicated SFP ports for fiber uplinks, this switch is purpose-built for powering high-draw edge devices. With a robust 190W PoE budget, it effectively supports power-hungry hardware such as WiFi 6 access points, pan-tilt-zoom (PTZ) IP cameras, and high-end VoIP handsets without the need for additional power injectors.

Deployment is highly flexible, making it an ideal choice for wiring closets, retail environments, or as an edge device in distributed campus networks. Management is handled through a comprehensive web-based GUI or the Netgear Insight cloud portal, providing administrators with granular control over VLANs, QoS, and IGMP snooping. This switch bridges the gap between basic unmanaged hardware and complex enterprise-grade systems, offering Layer 2+ features like IPv4 static routing and advanced security protocols. Its internal fan-cooled design ensures thermal stability under full PoE load, providing the reliability required for critical business infrastructure.

Key Features

- 8 Gigabit PoE+ ports with a 190W total power budget.
- Two dedicated SFP ports for long-distance fiber uplinks.
- Advanced Layer 2+ features including IPv4 static routing.
- Remote management via Netgear Insight Cloud portal.

Specifications

Brand Netgear
Part Number GS510TPP-100NAS
Product Type Smart Managed Pro Switch
Port Count 8 x 10/100/1000 Mbps + 2 x SFP
PoE Standard IEEE 802.3at (PoE+)
PoE Budget 190 W
Switching Capacity 20 Gbps
Forwarding Rate 14.8 Mpps
MAC Address Table 16K entries
VLAN Support Up to 256 VLANs
Form Factor Rackmount or Desktop
Dimensions 328 x 169 x 43 mm
Weight 1.83 kg
Power Supply Internal (100-240V AC, 50-60Hz)
Acoustic Noise 32 dBA at 25°C

Frequently Asked Questions

Does this switch support Netgear Insight cloud management?

Yes, the GS510TPP-100NAS supports Netgear Insight for remote monitoring and multi-device configuration, though it can also be managed locally via the standalone web interface.

Can I use the SFP ports for hardware stacking?

No, the SFP ports are dedicated for fiber uplinks or long-distance network extensions and do not support physical hardware stacking.

Is the 190W PoE budget shared across all ports?

Yes, the 190W budget is dynamically allocated across the 8 PoE+ ports, supporting up to 30W per port until the total power budget is reached.

Does this switch have an internal fan?

Yes, due to the high 190W PoE power density, this model includes an internal fan to maintain optimal operating temperatures under heavy loads.
