Detailed Specifications

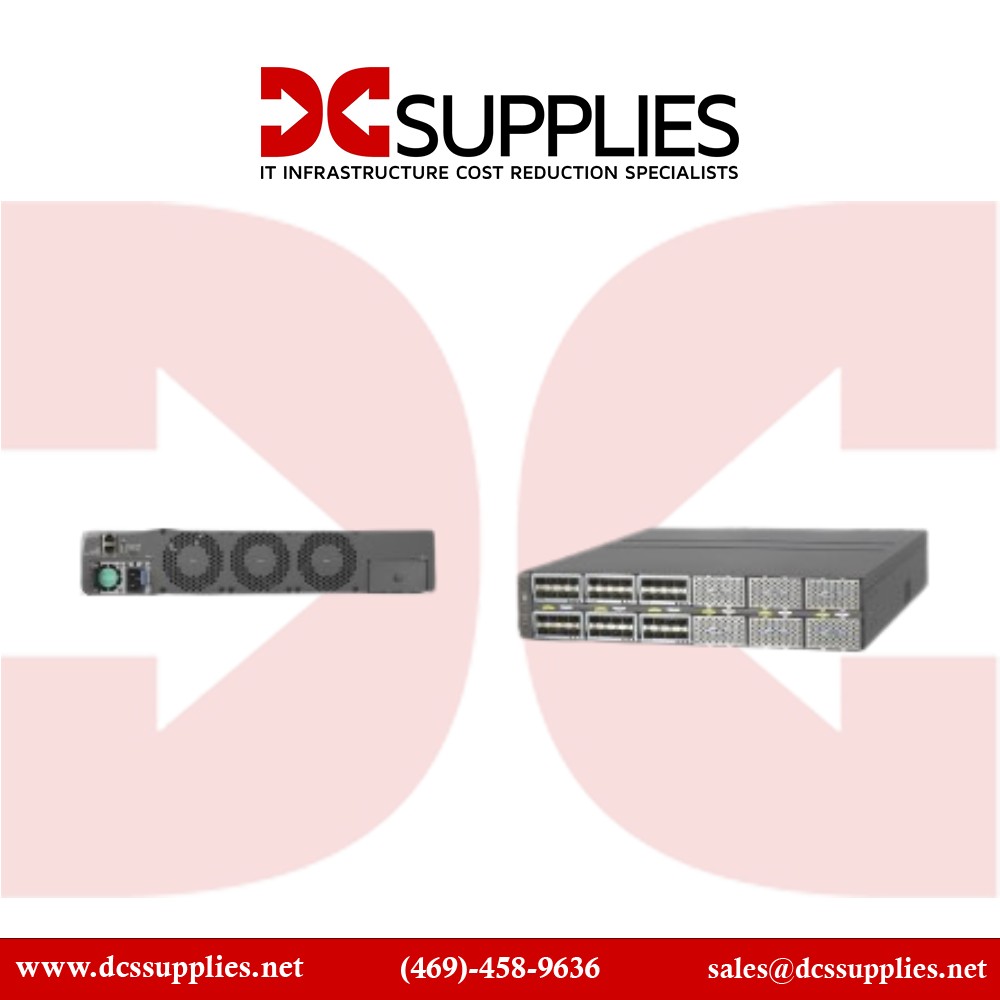

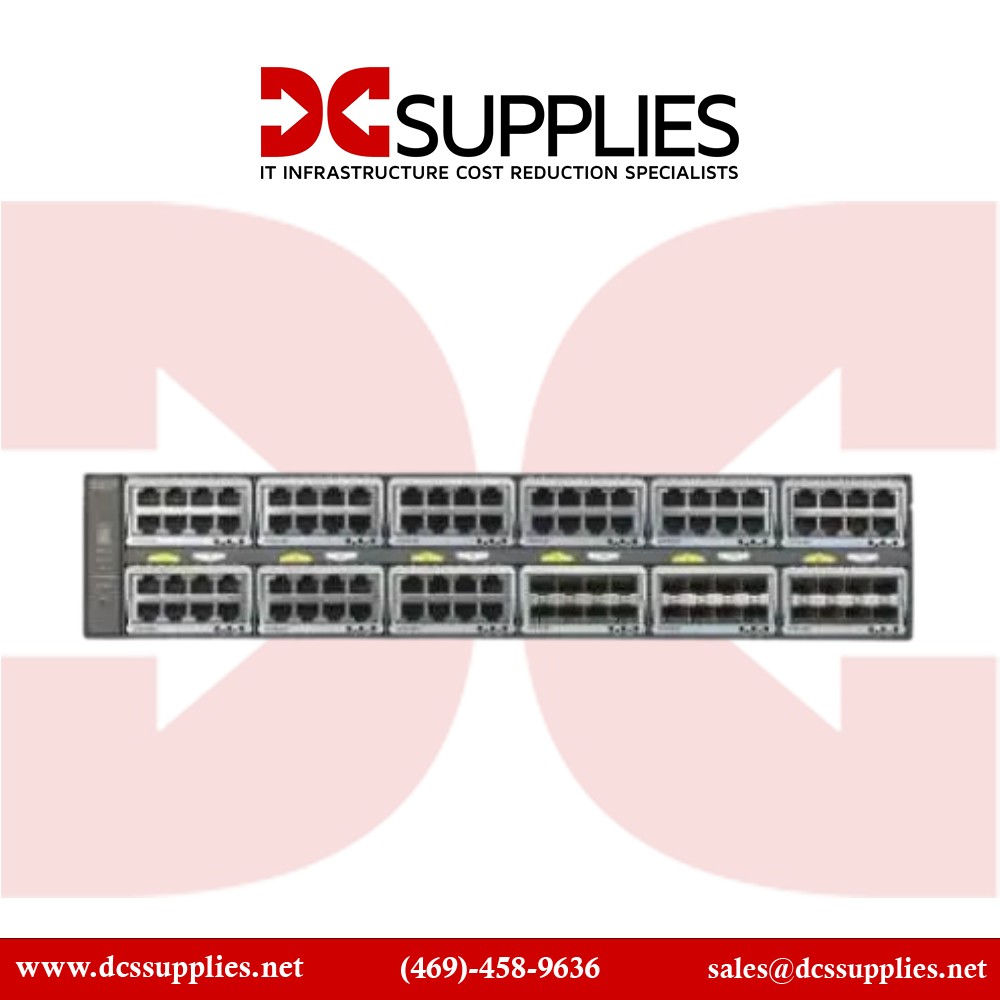

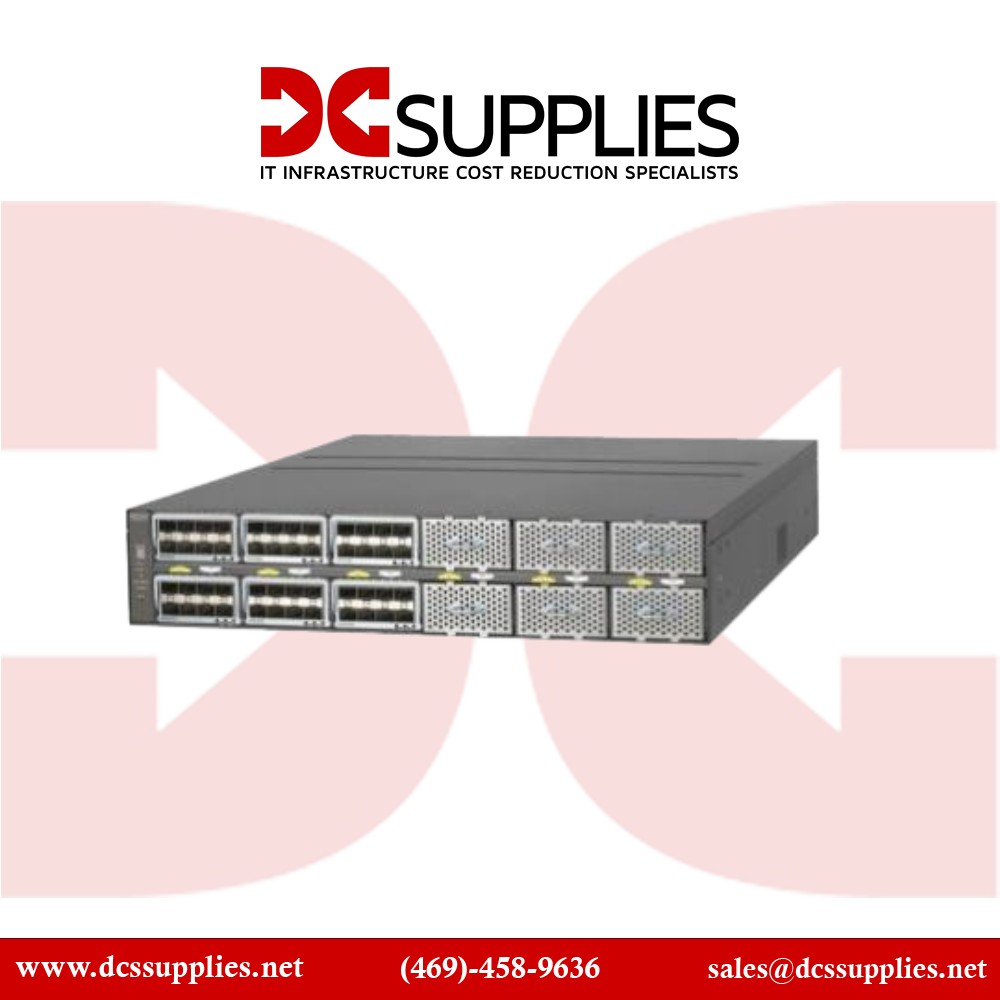

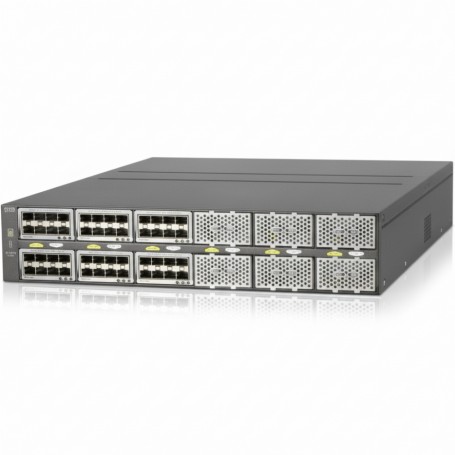

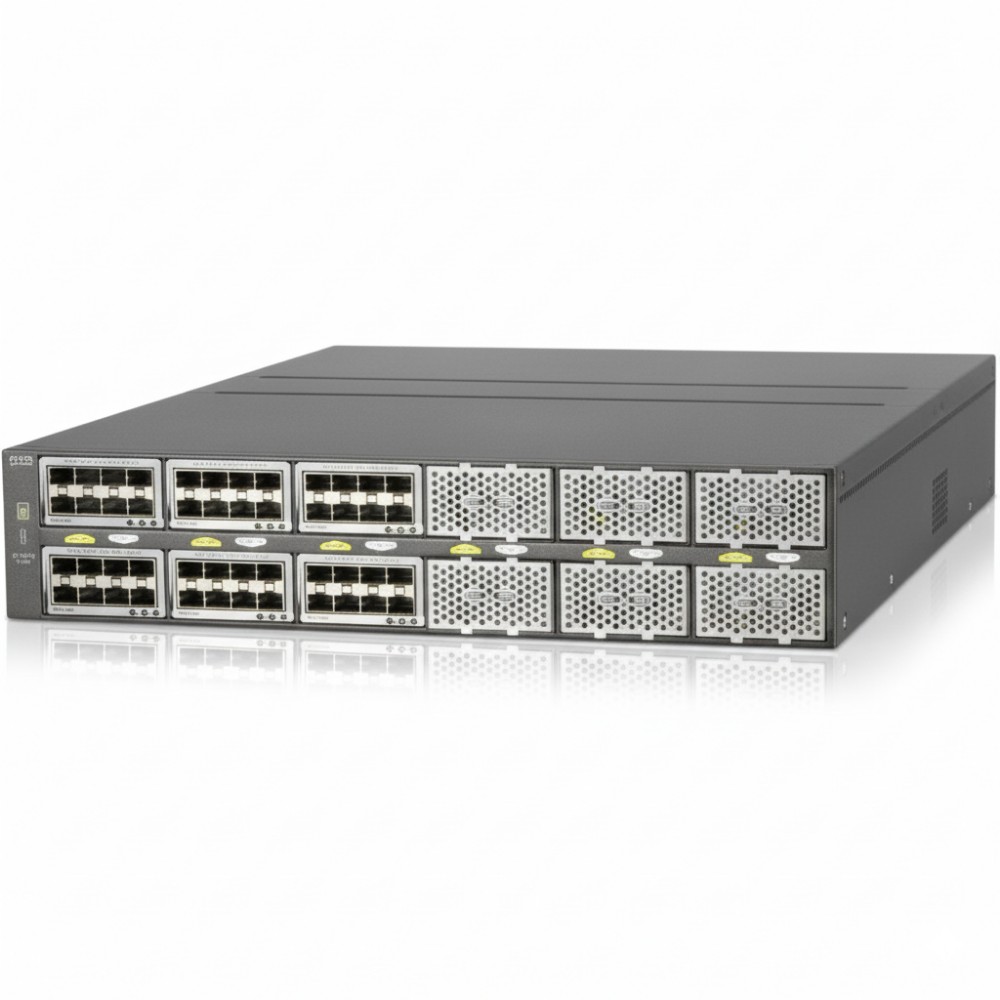

Netgear XSM4396K1-100NES - Modular 10G Switch Kit
Overview :
This is a modular, fully managed chassis switch kit used by network architects and IT infrastructure teams to build high-density 10G aggregation or core fabrics. It includes a 12-slot chassis, a 600 W power supply, and 48 SFP+ ports in its starter configuration. It scales to support up to 96 × 10G or a mix of 10G/40G via expansion modules. This kit is suitable for data center, campus core/distribution, or edge aggregation environments. It integrates into Netgear's M4300 modular line and is manageable via Netgear's CLI, web UI, or out-of-band management interfaces.
Key Features :
12-slot modular chassis with redundant power support
Up to 96 × 10G SFP+ ports via modules
Supports 40G uplink modules/line cards
Hot-swappable line cards and fan modules
Specifications :
| Parameter | Value |
|---|
| Brand | Netgear |
| Part Number | XSM4396K1-100NES |
| Product Type | Modular managed switch kit |
| Chassis Slots | 12 |
| Included Ports | 48 × 10G SFP+ (via installed modules) |
| Power Supply | 1 × 600 W AC PSU (starter kit) |
| Port Expansion | Supports full populate to 96 × 10G or mixed 10G/40G |
| Switching Capacity | 2.88 Tbps (full line rate) |
| Forwarding Rate | 1,072 Mpps |
| Redundancy | Redundant power and fan support (hot-swappable) |
| Form Factor | 2RU chassis |
| Management | CLI, Web UI, SNMP, out-of-band |
| Operating Temperature | 0 °C to 45 °C |
