Detailed Specifications

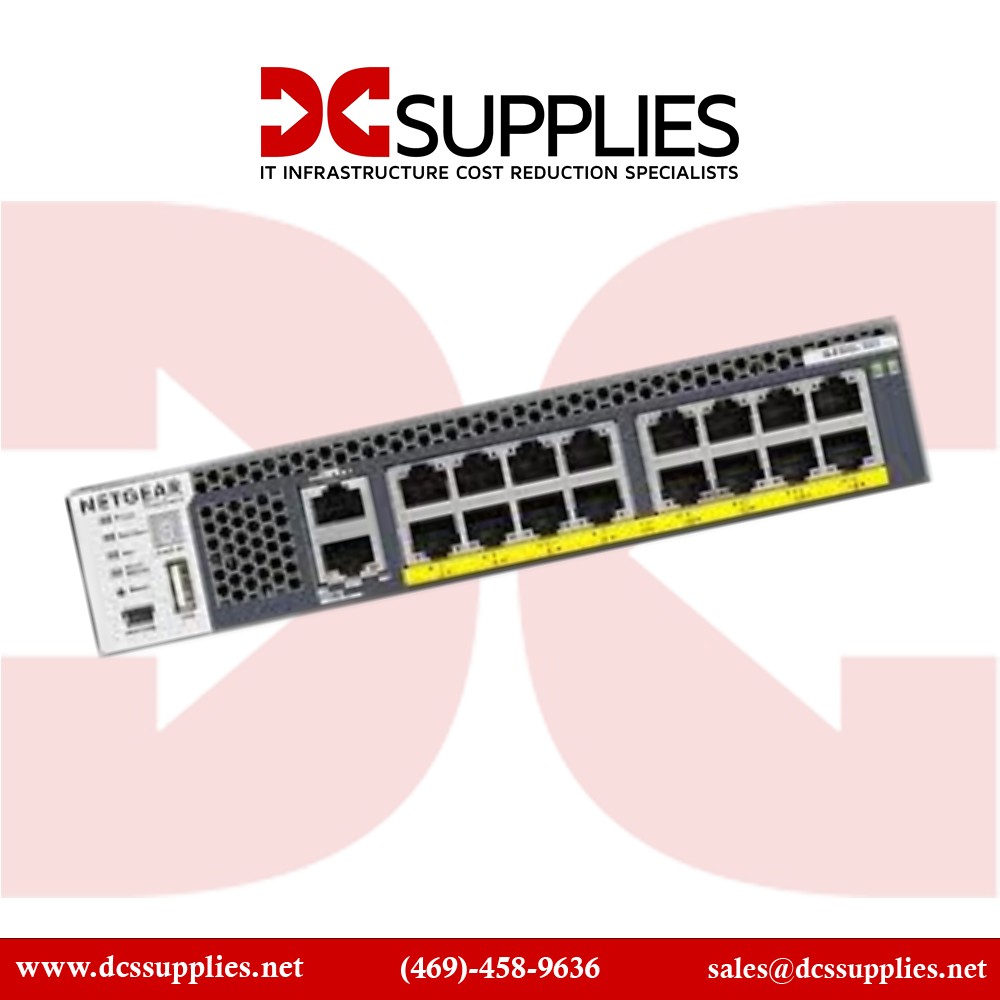

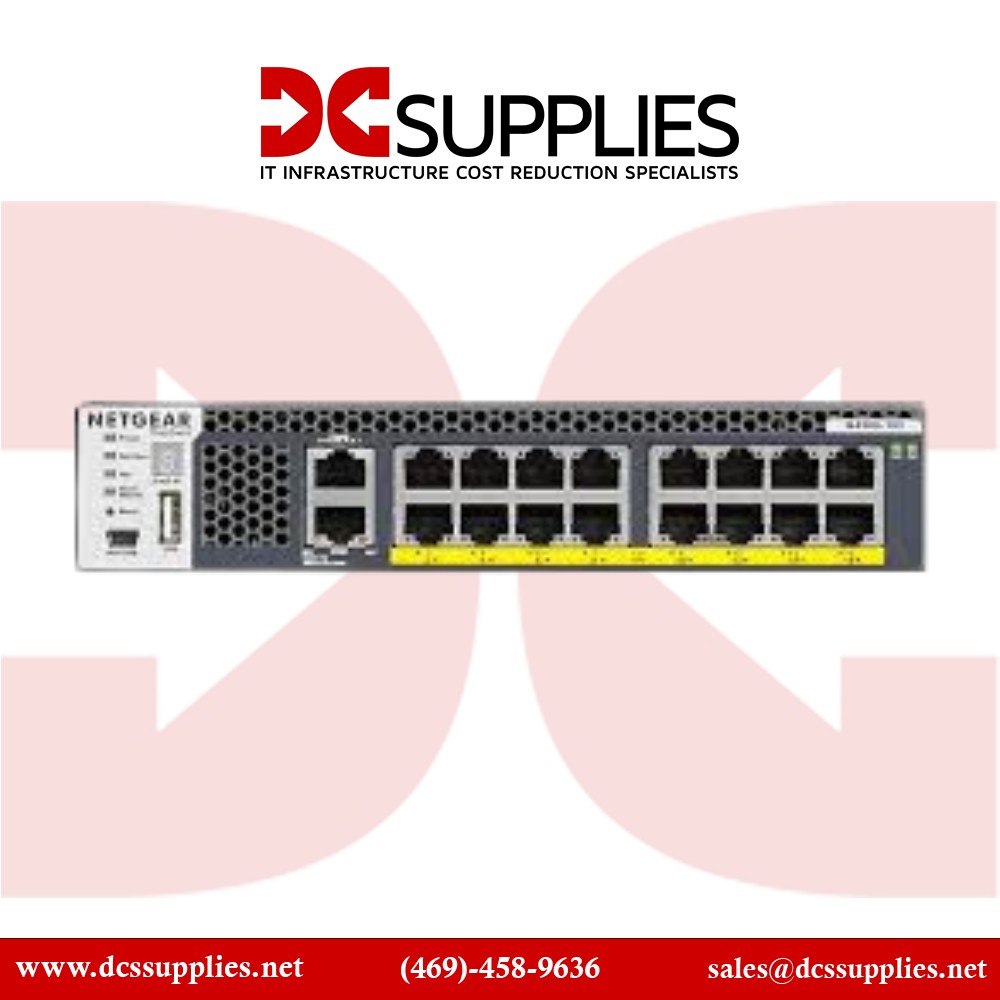

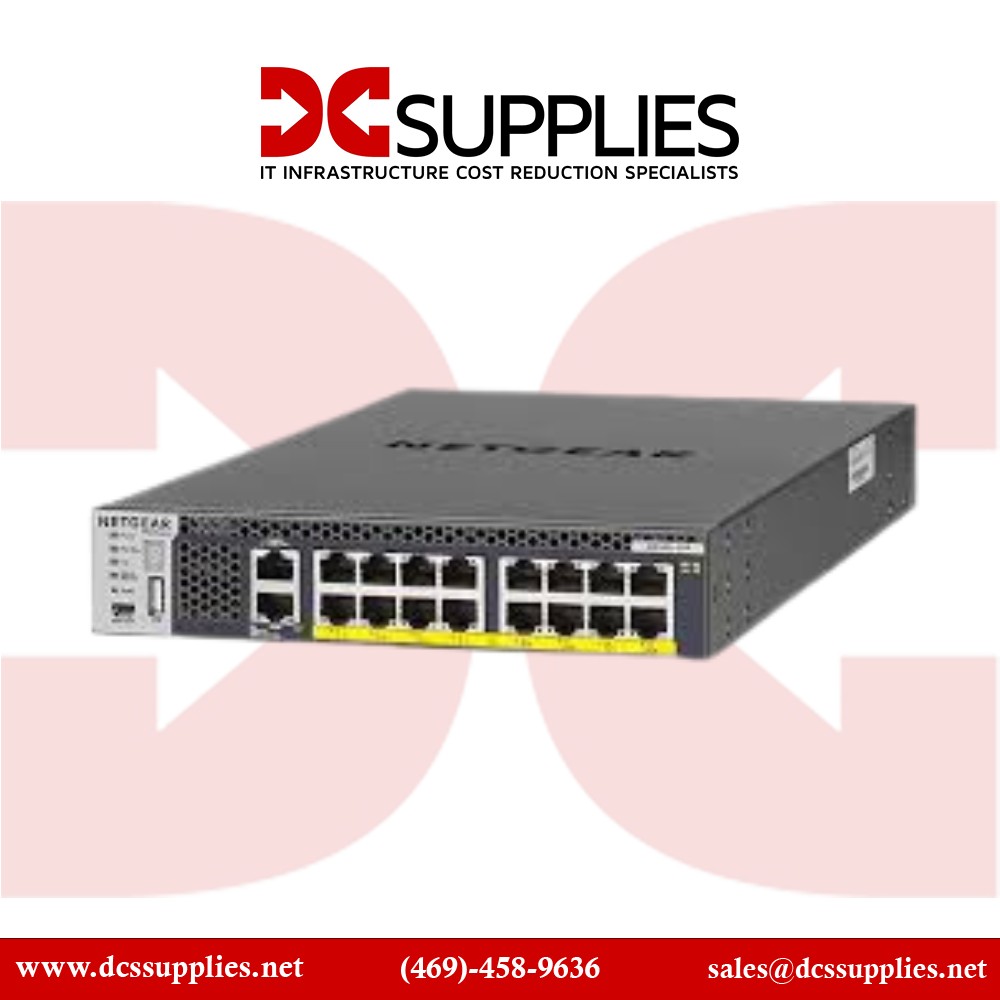

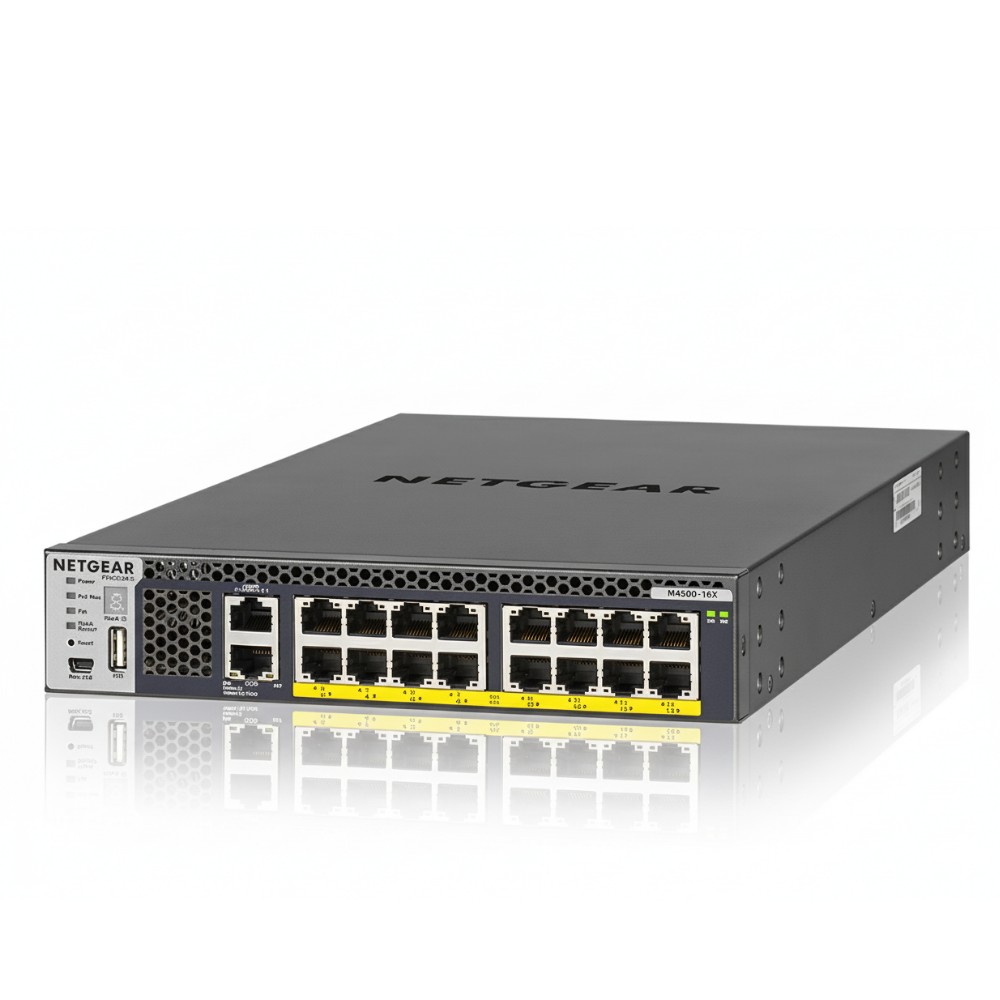

Netgear XSM4316PA-100NES M4300-16X PoE+ Stackable Switch
Overview :
The Netgear XSM4316PA-100NES is a managed and stackable switch in the M4300 line, designed for enterprise, AV-over-IP, and WiFi aggregation environments. It delivers sixteen multi-gigabit 10G RJ-45 ports with full PoE+ capability and a total PoE budget of 299 W. The unit supports non-stop forwarding, hitless failover, and modular power for flexibility. It is typically deployed at the access or aggregation layer in high-bandwidth network designs.
Key Features :
16 × 10GBASE-T RJ-45 ports with PoE+
299 W total PoE budget via APS299W PSU
Stackable with 320 Gbps switching fabric
Layer 2/3/4 management with IPv6 support
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | XSM4316PA-100NES |
| Product Type | Stackable Managed Switch (M4300-16X) |
| Port Configuration | 16 × RJ-45 (100 Mb/s - 10 Gb/s) |
| PoE Support | 802.3at PoE+ (30 W per port) |
| Total PoE Budget | 299 W |
| Power Supply | APS299W modular PSU (hot-swappable) |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238 Mpps |
| Layer Support | Layer 2, 3, 4 routing |
| Stacking | Virtual chassis, NSF, hitless failover |
| Acoustics | ~36 dB at 25 °C |
| Form Factor | Half-width 1U rackmount |
| Warranty | ProSAFE Limited Lifetime Hardware Warranty |
