Detailed Specifications

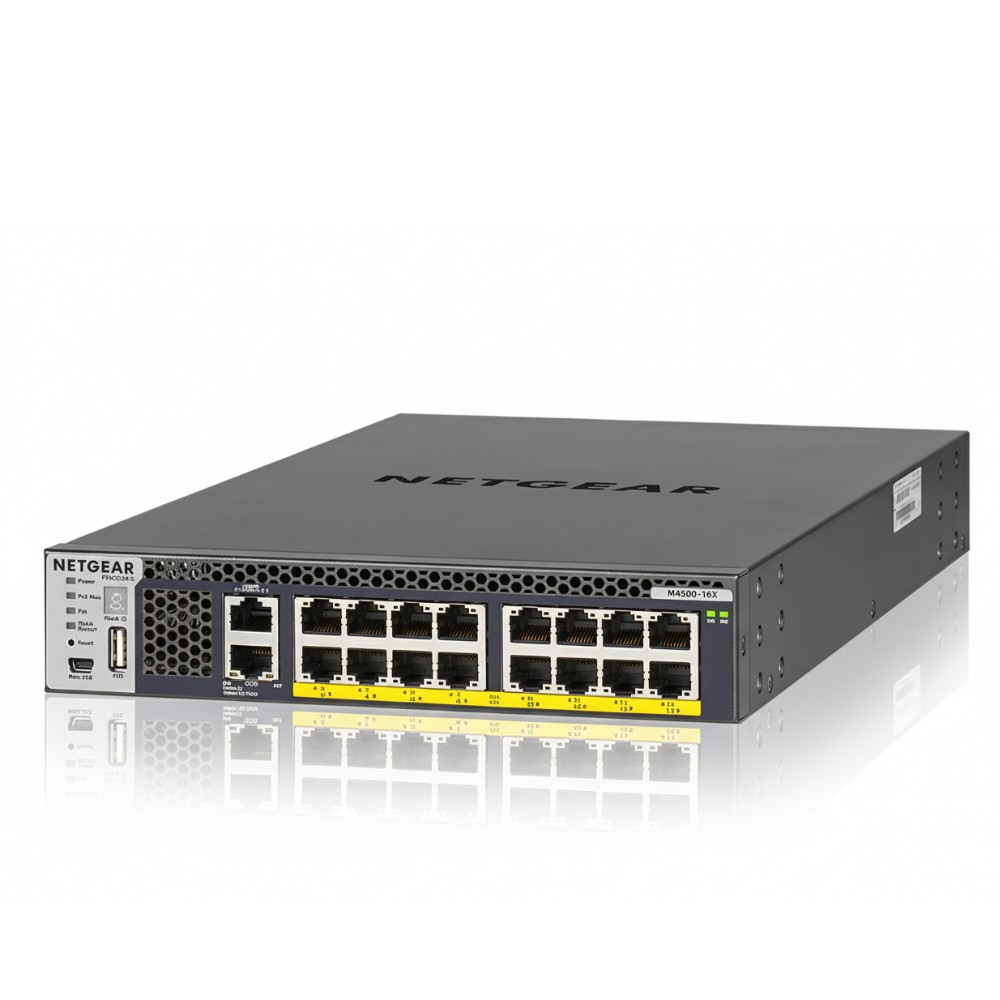

Netgear XSM4316PB-100NES M4300-16X Stackable Managed Switch
Overview :
The Netgear XSM4316PB-100NES is a stackable, fully managed switch in the the M4300 product line, used in enterprise or campus networks. It offers 16 copper ports supporting 100 Mb/s up to 10 Gb/s with PoE+ capability and supports multi-gig functionality. It fits in distribution, aggregation, or edge roles in data centers or wiring closets. It integrates with Netgear stacking and management features for scale and centralized control.
Key Features :
Sixteen 10GBASE-T / multi-gig copper ports
PoE+ on all 16 ports (up to 30 W each)
600 W power supply included
Stackable with M4300 family switches
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | XSM4316PB-100NES |
| Product Type | Stackable Managed Switch (M4300-16X) |
| Port Configuration | 16 × RJ-45 100 Mb/s to 10 Gb/s |
| PoE Output | 802.3at PoE+ (30 W per port) |
| Power Supply | 600 W internal PSU |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238 Mpps |
| CPU / Memory | 800 MHz CPU, 1 GB RAM |
| Acoustics | 35.0 dB at 25 °C |
| Physical Form | Half-width (short depth) |
| Stack Support | M4300 stacking with dedicated ports |
| Routing Features | Layer 2/3/4, IPv4/IPv6 support |
| Maximum Power Draw | ~610 W under full load |
