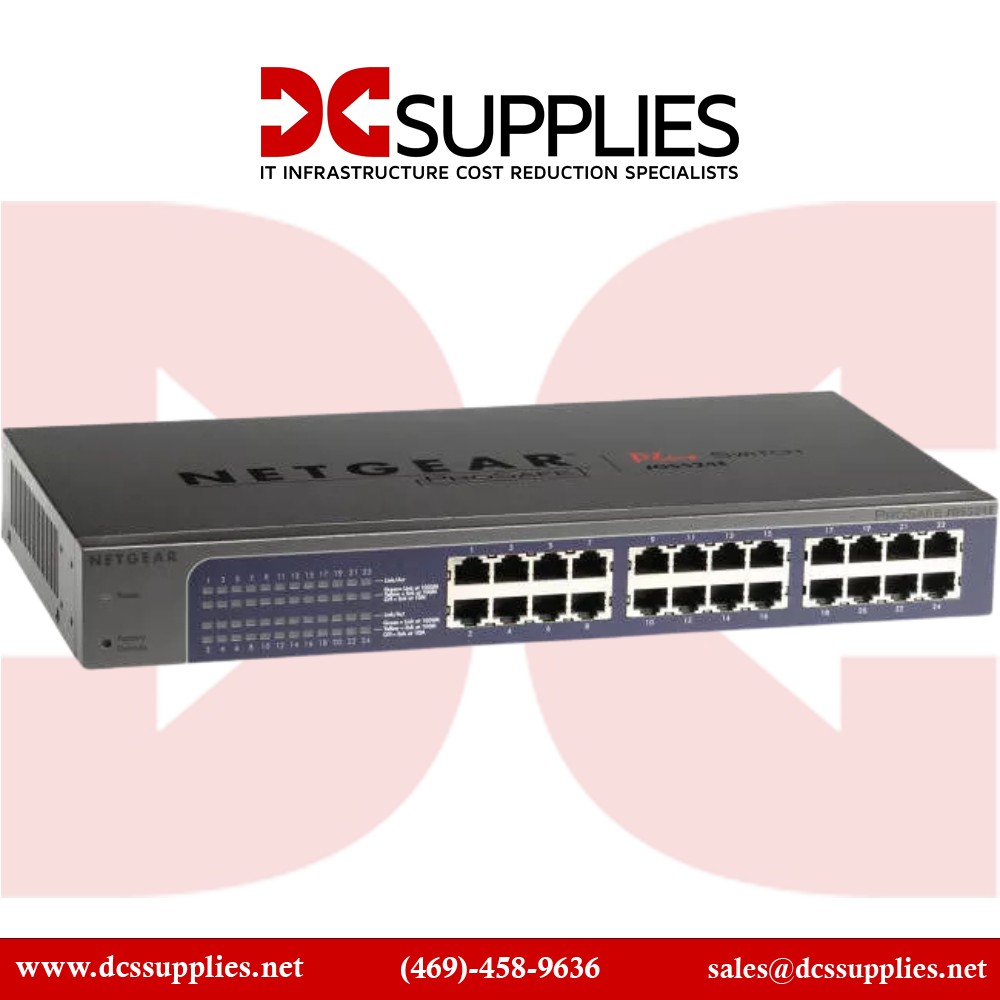

NETGEAR JGS524E-200NAS 24-Port Gigabit Ethernet Switch View larger

NETGEAR JGS524E-200NAS 24-Port Gigabit Network Switch

New

24-Port ProSafe Plus Gigabit Ethernet Switch
×




  • New

Detailed Specifications

NETGEAR ProSafe Plus JGS524E 24-Port Gigabit Switch

Overview

The NETGEAR ProSafe Plus JGS524E is designed for small to medium business environments that require network control beyond a simple unmanaged switch, but without the complexity of a full Layer 2/3 managed device. This 24-port Gigabit Ethernet switch provides non-blocking, full-duplex throughput, totaling 48 Gbps of switching capacity to ensure wire-speed performance across all connected devices. The Plus functionality enables essential Layer 2 capabilities, including VLAN support for traffic segmentation, Quality of Service (QoS) for prioritization, and port mirroring for network monitoring.

Key Features

  • Features Layer 2 control, including 802.1Q VLAN and 802.1p QoS, for segmenting traffic and prioritizing latency-sensitive data.
  • Offers non-blocking 48 Gbps switching architecture to deliver 2,000 Mbps dedicated bandwidth per port.
  • Fanless design ensures silent operation, making it suitable for deployment in noise-sensitive environments like offices.
  • Includes cable diagnostics and loop detection tools to quickly troubleshoot and prevent network connectivity issues.

Technical Specifications

Key SpecificationDetail
Brand NETGEAR
Part Number JGS524E-200NAS
Product Type ProSafe Plus Gigabit Ethernet Switch
Ports 24 x 10/100/1000Base-T RJ-45
Switching Bandwidth 48 Gbps
Forwarding Rate (64-byte) 35.7 Mpps (Millions of packets per second)
VLAN Support 802.1Q Tag-based VLAN
QoS Support 802.1p CoS (Class of Service)
MAC Address Table Size 8K Entries
Jumbo Frame Support Up to 9 KB
Power Consumption (Max) 17.9W
Form Factor Rack-mountable (1U) / Desktop
Dimensions (W x D x H) 330 x 173 x 43 mm (13 x 6.8 x 1.7 in)
Weight 1.43 kg (3.15 lb)
Layer Supported Layer 2
