Detailed Specifications

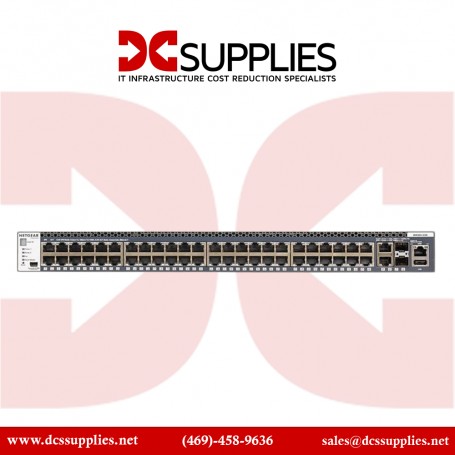

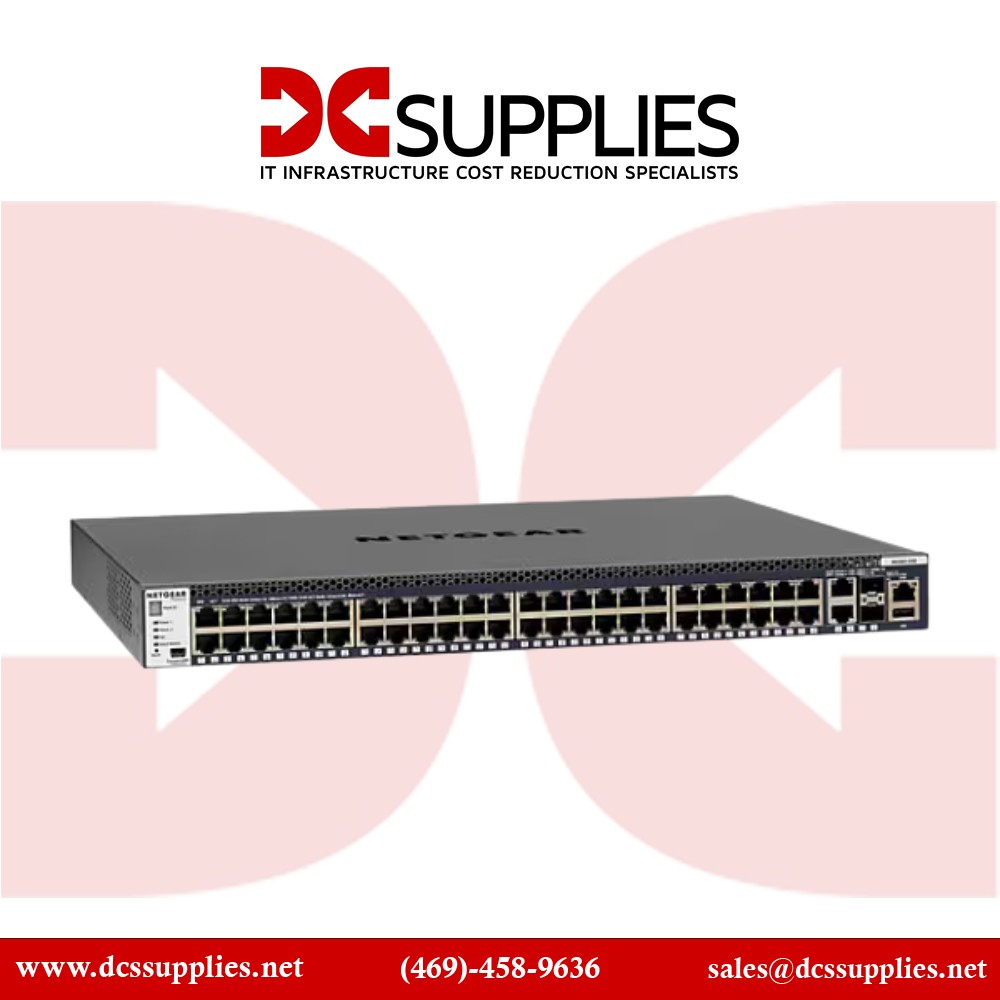

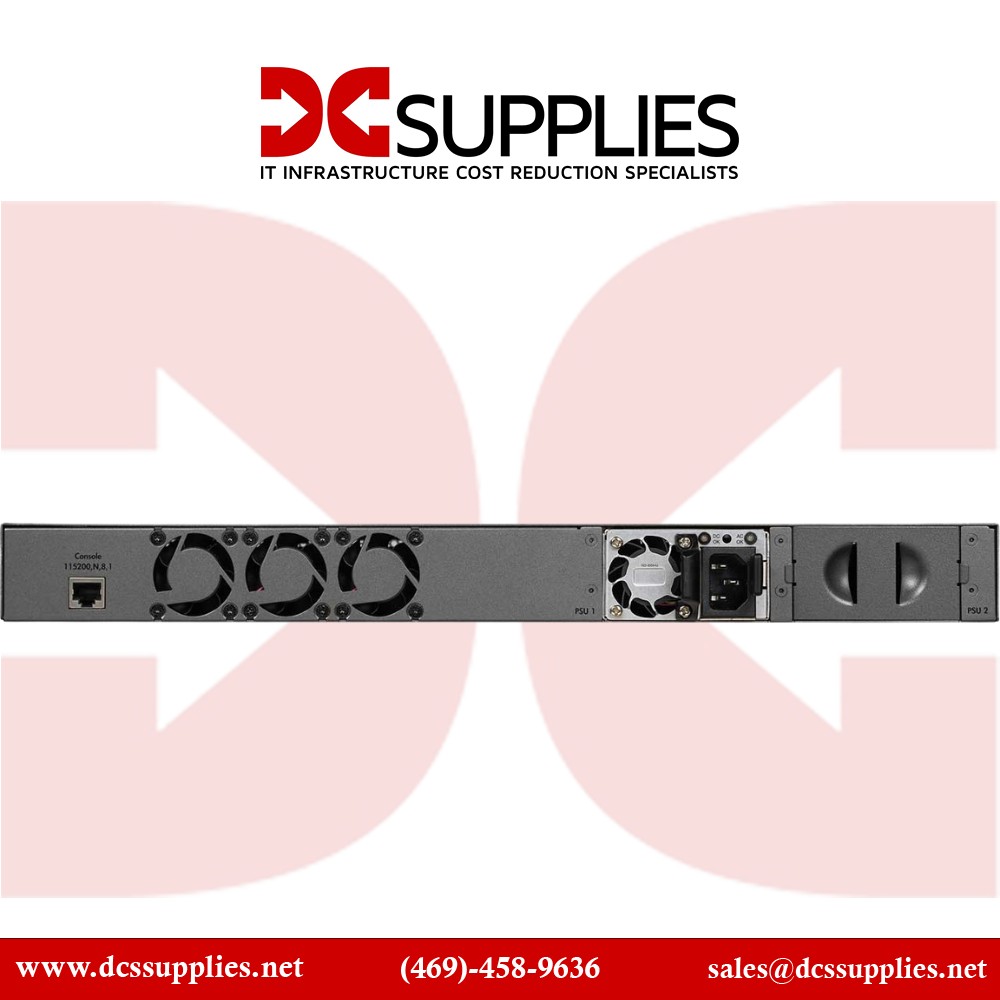

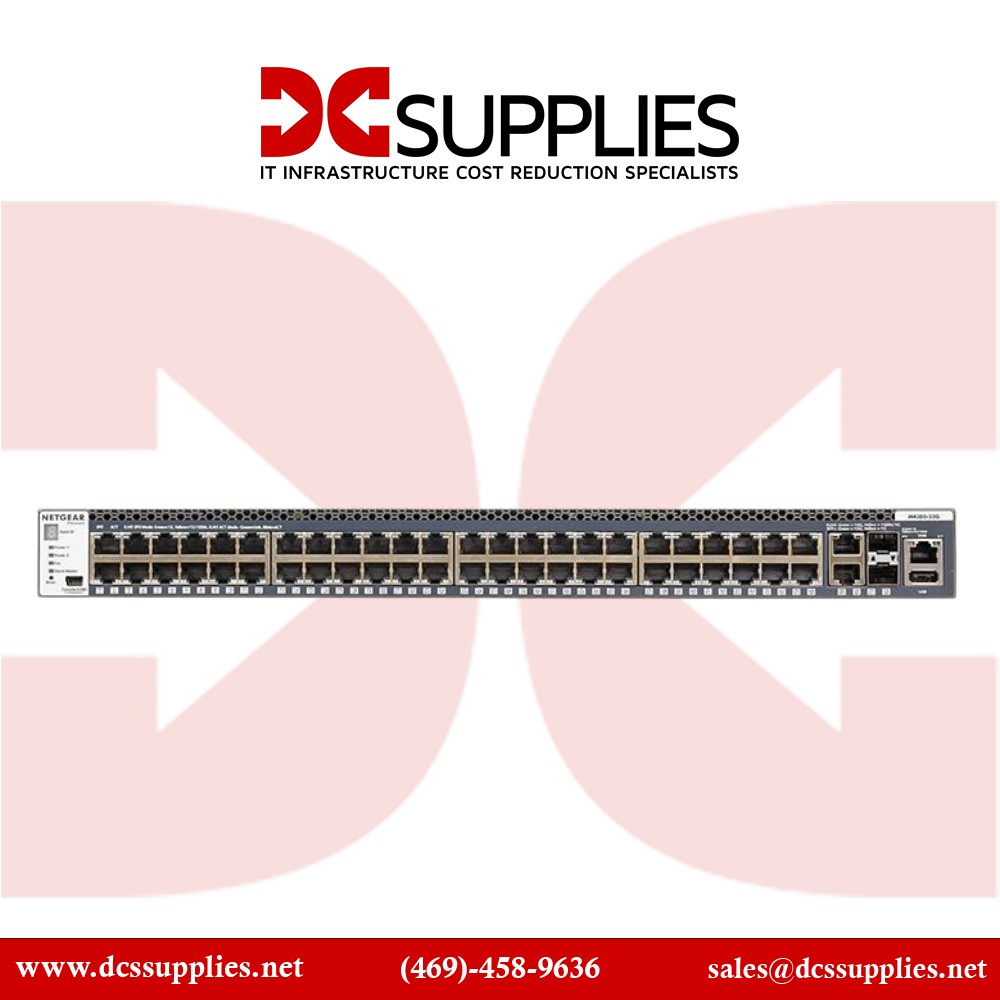

Netgear GSM4352S-100NES M4300-52G Stackable Switch
Overview
The NETGEAR M4300-52G (GSM4352S) is a Layer 3 stackable switch, delivering a non-blocking 176 Gbps fabric for use in mid-enterprise edge or small-to-midsize business (SMB) core networks. It offers a rich L2/L3/L4 feature set, including static and dynamic routing protocols like OSPF and VRRP, without requiring additional licensing. This full-width 1U unit is ideal for high-density 1G access layers supporting wireless, unified communications, and IP video deployment at the campus edge. The platform supports OpenFlow 1.3 and uses a modular power supply design for business continuity and high availability.
Key Features
- Full L3 feature set: OSPF, RIP, VRRP, PIM included without license.
- Non-blocking 176 Gbps switching capacity for high-density access.
- Stack up to 8 units with hitless failover across 1G and 10G models.
- Dual redundant power supply bay for high availability (1 PSU included).
Technical Specifications
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | GSM4352S-100NES |
| Product Type | Layer 3 Managed Switch |
| Total Ports | 48 x 1G RJ45 + 4 x 10G (2x RJ45, 2x SFP+) |
| Switching Fabric Capacity | 176 Gbps |
| Max Units in Stack | 8 |
| Form Factor | 1U Full-Width Rack Mount |
| Redundant Power Supply | Yes (2 bays, 1x 150W PSU included) |
| Airflow | Front-to-Back |
| Max Power Consumption | 47.4 W |
| Acoustics | 31.5 dB @ 25°C |
| Layer 3 Protocols | OSPF, RIP, VRRP, PIM |
