Detailed Specifications

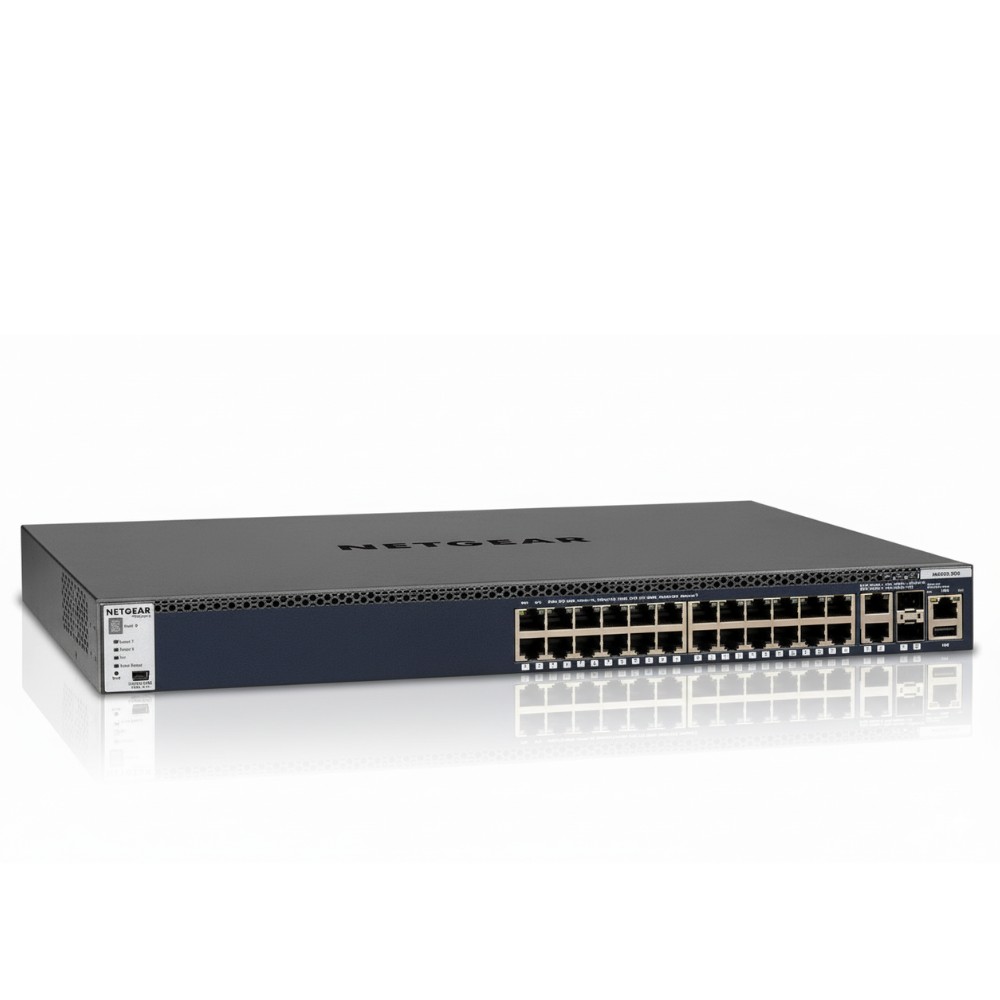

NETGEAR M4300-28G GSM4328S-100NES - 24-Port Gigabit Stackable Managed Switch with 10G Uplinks
Overview
The NETGEAR M4300 GSM4328S-100NES is a 24-port Gigabit stackable managed switch designed for enterprise edge deployments requiring Layer 3 routing and 10G uplink capacity. It delivers 24 Gigabit RJ45 ports for endpoint connectivity, two independent 10GBASE-T copper uplinks, and two 10G SFP+ fiber uplinks for high-bandwidth aggregation to core infrastructure. This switch supports virtual chassis stacking of up to 8 units with nonstop forwarding and hitless management failover for uninterrupted network operations during primary unit failures. Built on NETGEAR's full Layer 3 platform with OSPF, RIP, VRRP, and PIM multicast routing, the M4300-28G handles collapsed core branch offices, IDF closets, or midsize server rooms requiring comprehensive routing without per-feature licensing costs.
Key Features
- 128 Gbps switching fabric with 16MB packet buffer handles line-rate forwarding across all 28 ports simultaneously
- Virtual chassis stacking up to 8 units with hitless failover ensures backup management unit takes over without dropping active sessions
- Four independent 10G uplinks combine copper 10GBASE-T and SFP+ fiber for flexible aggregation to core or inter-switch stacking
- Full Layer 3 routing with OSPF, VRRP, and PIM multicast eliminates separate router requirements in branch office deployments
Technical Specifications
| Brand | NETGEAR |
| Part Number | GSM4328S-100NES |
| Product Type | Layer 3 Stackable Managed Switch |
| Port Configuration | 24x 1GbE, 2x 10GBASE-T, 2x 10G SFP+ |
| PoE Power Budget | Non-PoE Model |
| Switching Capacity | 128 Gbps |
| Management | Web GUI, CLI, SNMP, SSH, Out-of-band port |
| Power Requirements | 34.5W max, C14 input, APS150W PSU |
| Dimensions & Weight | 440x257x43.6mm (1U) |
| Warranty | Limited Lifetime Hardware Warranty |
