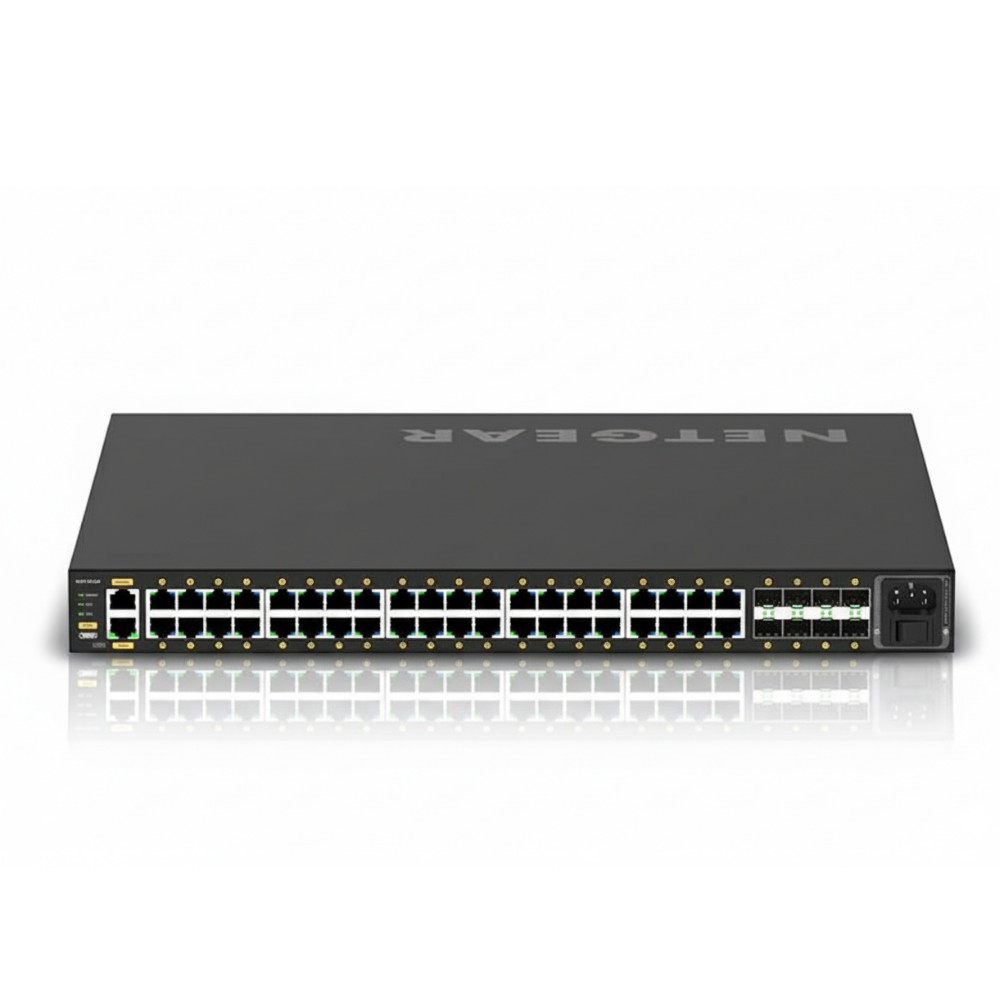

NETGEAR GSM4248PX-100NAS AV Line 40-Port PoE+ Ethernet Switch View larger

Netgear GSM4248PX-100NAS AV Line 48-Port PoE+ Managed Switch

New

In Stock

48-Port PoE+ AV Switch with 10G Uplinks
×




$2,455.00

  • New

Detailed Specifications

Netgear GSM4248PX-100NAS AV Line 48-Port PoE+ Managed Switch

Overview

The Netgear GSM4248PX-100NAS, a cornerstone of the M4250 AV Line, is purpose-built for the evolving demands of AV-over-IP environments. While traditional enterprise switches often require complex manual configuration for multicast traffic, this unit simplifies deployment through a dedicated AV-centric web interface. This allows systems integrators to implement industry-standard protocols such as Dante, NDI, and Q-SYS using pre-validated profiles, ensuring optimal performance with minimal commissioning time.

Designed for high-density edge or distribution layers, the GSM4248PX features 40 Gigabit Ethernet ports with PoE+ support and 8 dedicated 10G SFP+ uplinks. This configuration provides the necessary bandwidth and power for high-resolution video distribution and low-latency audio streaming in corporate boardrooms, broadcast studios, and large-scale digital signage networks. The hardware is engineered for versatility, offering reversible mounting options and software-controlled fans that can operate in a "Quiet Mode" for noise-sensitive installations. Beyond its AV capabilities, the switch maintains full Layer 3 routing functionality and standard IT management via CLI and SNMP, allowing it to integrate seamlessly into existing enterprise network infrastructures.

Key Features

- 40x 1G PoE+ ports with a robust 960W total power budget.
- 8x 10G SFP+ fiber uplinks for high-bandwidth backhaul.
- Pre-configured AV profiles for Dante, NDI, and Q-SYS.
- Dedicated AV web interface for simplified port management.

Specifications

Brand Netgear
Part Number GSM4248PX-100NAS
Product Type Managed Switch (AV Line)
Total Ports 48 (40x 1G, 8x 10G SFP+)
PoE Standard 802.3at PoE+ (30W per port)
PoE Budget 960W
Switching Capacity 240 Gbps
Forwarding Rate 178.5 Mpps
MAC Address Table 16K entries
Acoustic Noise 34dB @ 25°C (Quiet Mode)
Dimensions 440 x 400 x 43.2 mm
Weight 6.31 kg
Management Web UI, CLI, SNMP, Netgear Insight

Frequently Asked Questions

Does this switch support NDI and Dante out of the box?

Yes, the M4250 series includes pre-configured profiles for NDI, Dante, and AES67, which can be assigned to specific ports via the AV-centric user interface to ensure immediate compatibility.

Can the fans be adjusted for noise-sensitive environments?

The GSM4248PX features software-controlled fans that can be adjusted to "Quiet Mode" or even turned off for low-PoE loads, making it suitable for use in studios or conference rooms.

What is the maximum PoE power available per port?

Each of the 40 copper ports supports the IEEE 802.3at (PoE+) standard, delivering up to 30W per port within the total 960W system power budget.
