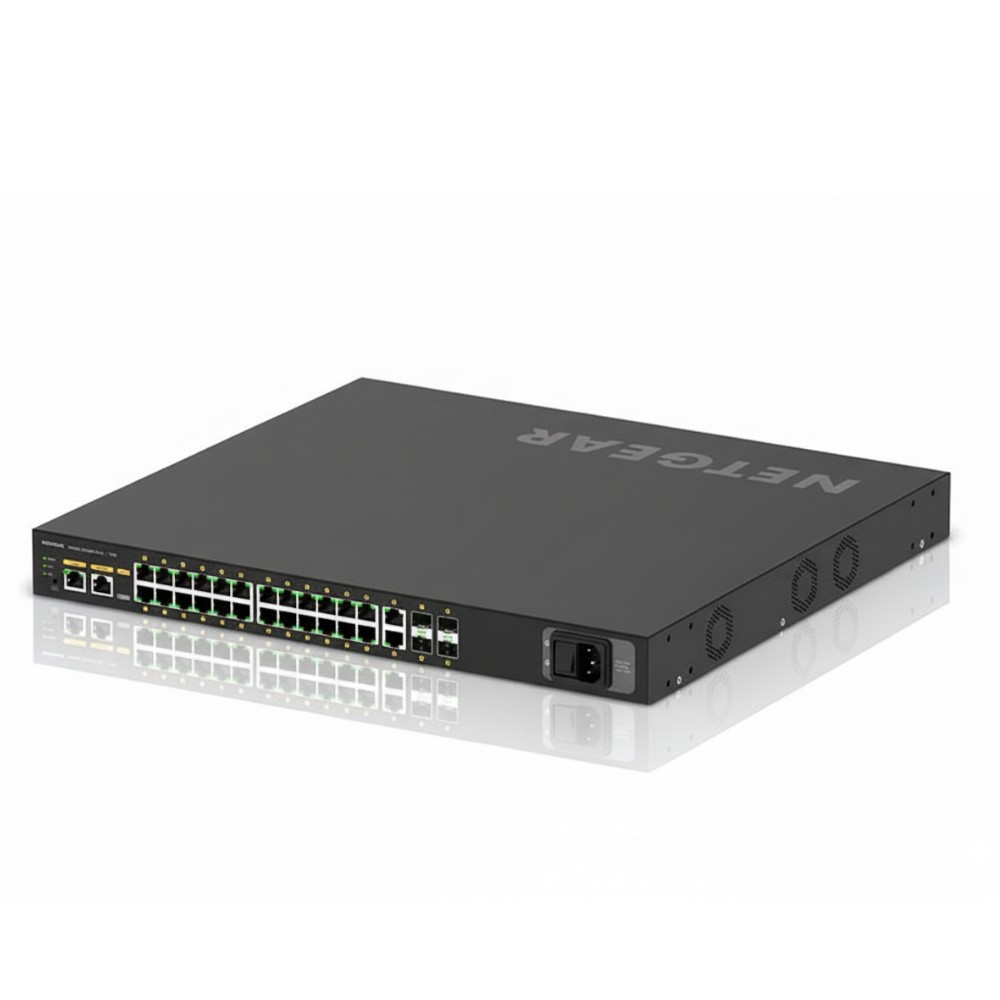

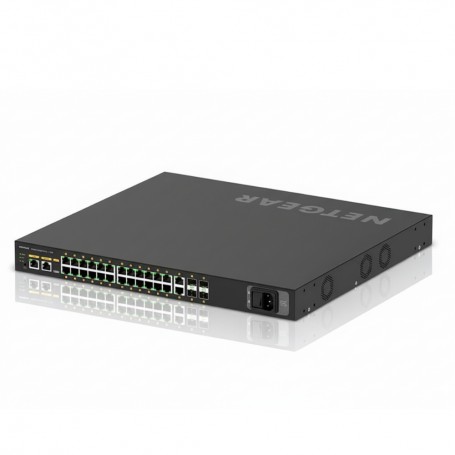

NETGEAR GSM4230PX-100NAS 0 24-Port PoE+ Ethernet Switch View larger

Netgear GSM4230PX-100NAS 24-Port PoE+ AV Line Managed Switch

New

In Stock

24-Port PoE+ AV Line Managed Switch

×




$1,745.00

  • New

Detailed Specifications

Netgear GSM4230PX-100NAS 24-Port PoE+ AV Line Managed Switch

Overview

The Netgear GSM4230PX-100NAS, part of the M4250 AV Line, is a purpose-built networking solution engineered for professional audio and video over IP (AVoIP) environments. Unlike standard enterprise switches that often require complex manual configuration for multicast traffic, this model features a dedicated AV-oriented web interface. This allows integrators to deploy pre-configured profiles for industry-standard protocols such as Dante, NDI 5, Q-SYS, and AES67 with minimal technical friction.

The hardware architecture provides 24 Gigabit Ethernet ports supporting 802.3at PoE+ (30W per port) with a substantial 480W total power budget. This capacity is ideal for powering high-density IP camera arrays, wireless access points, and AV encoders at the network edge. For high-bandwidth backhaul and core connectivity, the switch includes two dedicated 1G SFP ports and four 10G SFP+ uplink ports, ensuring non-blocking performance for 4K video streams. Designed for flexible deployment, the unit features reversible mounting options, allowing ports to be positioned at the front or rear of the rack to suit specific cabling requirements in broadcast studios or corporate boardrooms.

Key Features

- 24 PoE+ ports with a robust 480W total power budget.
- Four 10G SFP+ uplinks for high-bandwidth backhaul.
- Pre-configured AV profiles for Dante, NDI, and AES67.
- Reversible mounting for flexible rack installation.

Specifications

Brand Netgear
Part Number GSM4230PX-100NAS
Product Type Managed AV Line Switch
Total Ports 30 (24x 1G RJ45, 2x 1G SFP, 4x 10G SFP+)
PoE Support 24x PoE+ (802.3at)
PoE Budget 480 W
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
Form Factor 1U Rackmount
Acoustic Noise 34 dB @ 25°C
Dimensions 440 x 400 x 43.2 mm
Weight 5.45 kg
Operating Temperature 0° to 50° C

Frequently Asked Questions

Does this switch support AVB (Audio Video Bridging)?

Yes, the GSM4230PX supports AVB; however, it requires an optional electronic license (AVB4230PX-10000S) to be activated for full functionality.

Can the fans be adjusted for noise-sensitive environments?

The switch features software-controlled fans that adjust based on internal temperature and PoE load. In low-load scenarios, noise levels remain as low as 34dB.

Is the management interface different from standard Netgear switches?

Yes, it includes a specialized AV UI alongside the standard IT GUI, allowing users to assign AV profiles to specific ports quickly without deep CLI knowledge.
