NETGEAR GS524UP-100NAS switch 24 ports Gigabit Ethernet unmanaged View larger

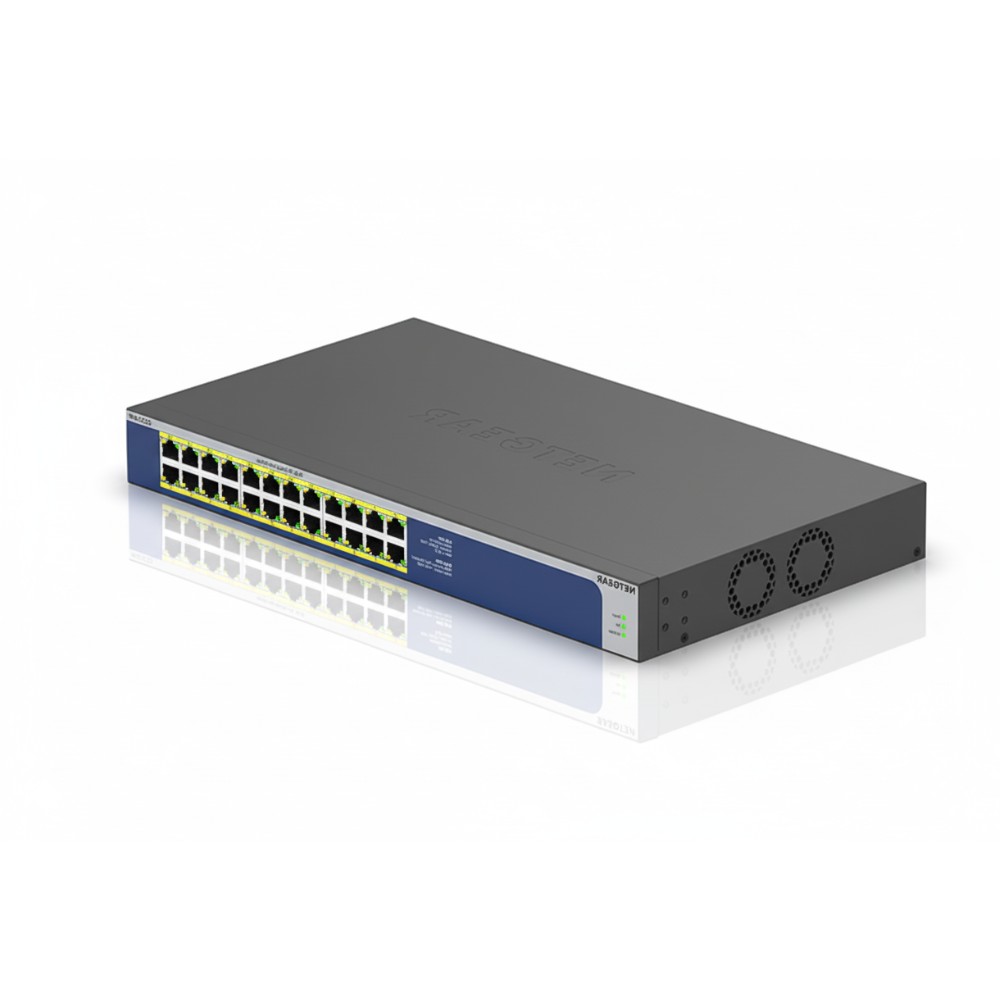

Netgear GS524UP-100NAS 24-Port Gigabit Ultra60 PoE++ Unmanaged Switch

New

In Stock

24-Port Gigabit 480W Ultra60 PoE++ Switch
×




$485.00

  • New

Detailed Specifications

Netgear GS524UP-100NAS 24-Port Gigabit Ultra60 PoE++ Unmanaged Switch

Overview

The Netgear GS524UP-100NAS is a high-density, unmanaged Gigabit Ethernet switch engineered for environments requiring substantial power delivery without the administrative overhead of managed networking. This 24-port solution is a critical component for modern edge deployments, providing a massive 480W total PoE budget. It features 16 ports of Ultra60 PoE++ (up to 60W per port) and 8 ports of PoE+ (up to 30W per port), making it uniquely suited for high-draw hardware such as Wi-Fi 6 access points, pan-tilt-zoom (PTZ) IP cameras, and high-performance IoT sensors.

Designed for small-to-medium businesses (SMBs) and professional AV-over-IP installations, the GS524UP eliminates the need for complex software configurations. It utilizes a plug-and-play architecture that automatically detects and balances power requirements across connected devices. The 1U rackmount form factor and durable metal chassis ensure reliability in server rooms or wiring closets. By integrating high-wattage power delivery into a simplified unmanaged framework, this switch solves the challenge of powering next-generation infrastructure while maintaining a streamlined, cost-effective network topology.

Key Features

- 480W total PoE budget across 24 Gigabit Ethernet ports.
- 16 ports of Ultra60 PoE++ (60W) for high-draw IoT devices.
- Plug-and-play setup with no software or configuration needed.
- Durable 1U rackmount metal housing for professional install.

Specifications

Brand Netgear
Part Number GS524UP-100NAS
Product Type Unmanaged Gigabit Ethernet Switch
Total Ports 24 x 10/100/1000 Mbps RJ-45
PoE++ Ports 16 x Ultra60 PoE++ (802.3bt)
PoE+ Ports 8 x PoE+ (802.3at)
Total PoE Budget 480 W
Switching Capacity 48 Gbps
Forwarding Rate 35.7 Mpps
MAC Address Table 8K entries
Packet Buffer 192 KB
Form Factor 1U Rackmount
Dimensions 390 x 220 x 43 mm
Weight 3.10 kg
MTBF 585,056 hours

Frequently Asked Questions

Does this switch require any software configuration or IP setup?

No, the GS524UP is a fully unmanaged plug-and-play switch. It does not have a management interface, making it ideal for deployments where manual VLAN or port configuration is not required.

Can I use this switch to power high-performance PTZ cameras?

Yes. With 16 ports supporting the Ultra60 PoE++ (802.3bt) standard, it can provide up to 60W per port, which is sufficient for the power requirements of most modern PTZ cameras and Wi-Fi 6 access points.

Is the mounting hardware included for server rack installation?

Yes, the GS524UP-100NAS includes a standard 19-inch rackmount kit in the box, as well as rubber feet for those who prefer desktop placement.

How does the switch handle power if the total demand exceeds 480W?

The switch features an internal PoE power auto-balance system. It prioritizes power based on port order and will manage the budget to ensure the most critical connections remain stable within the 480W limit.
