Detailed Specifications

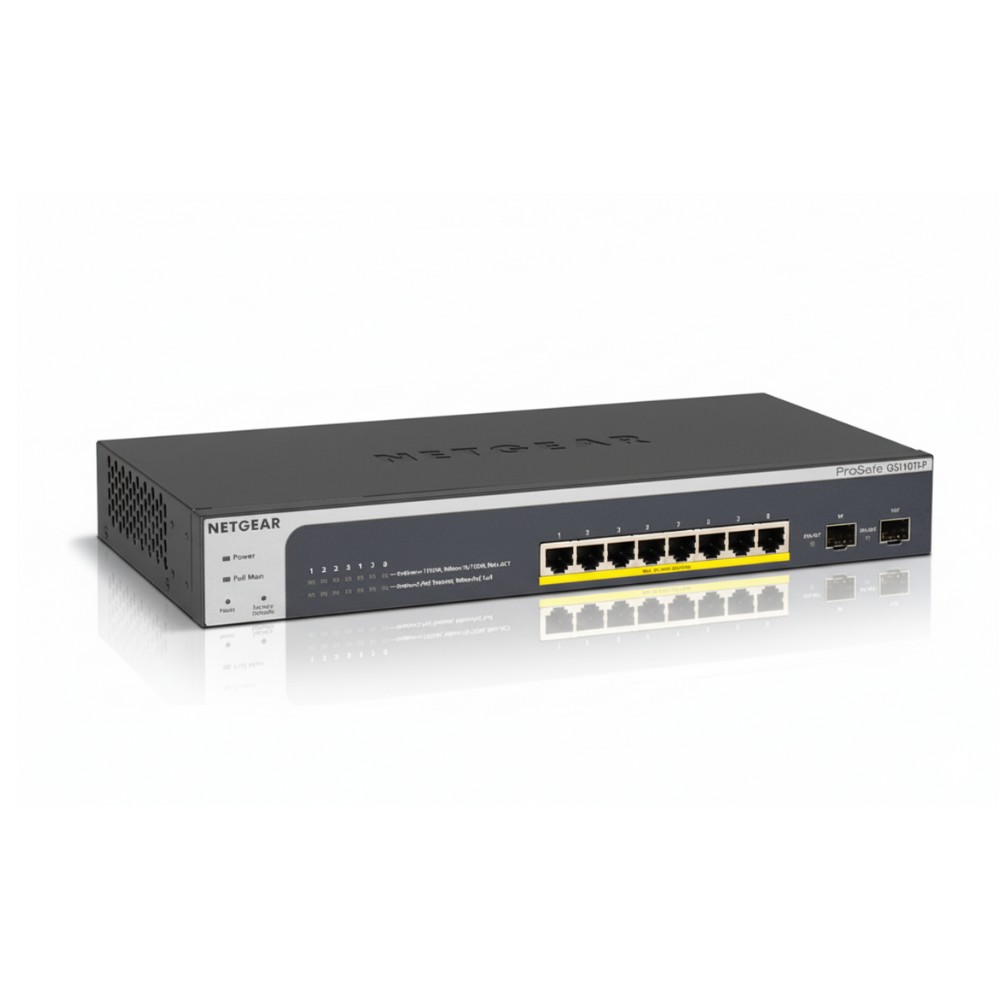

NETGEAR GS510TLP-100NAS - 8-Port Gigabit PoE+ Smart Managed Switch
Overview
The NETGEAR GS510TLP-100NAS is an 8-port Gigabit Ethernet smart managed switch designed for small to medium-sized business networks requiring Power over Ethernet Plus (PoE+) capabilities. It offers 8 PoE+ ports with a total power budget of 75W, suitable for powering devices like IP cameras, VoIP phones, and wireless access points. The switch features two Gigabit SFP ports for fiber uplinks and supports Layer 3 static routing, Quality of Service (QoS), and Link Aggregation Control Protocol (LACP). Its fanless design ensures silent operation, and it supports both desktop and rackmount installations.
Key Features
8 Gigabit Ethernet PoE+ ports
75W total PoE+ power budget
2 Gigabit SFP uplink ports
Layer 3 static routing support
Technical Specifications
| Attribute | Specification |
|---|
| Brand | NETGEAR |
| Part Number | GS510TLP-100NAS |
| Product Type | Smart Managed PoE+ Switch |
| Total Ports | 8 (8 PoE+ ports) |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| Total PoE Power Budget | 75W |
| SFP Ports | 2 |
| Switching Capacity | 20 Gbps |
| MAC Table Size | 8,000 |
| Jumbo Frame Support | 9,216 bytes |
| Buffer Size | 512 KB |
| Layer 3 Features | Static routing (up to 32 routes) |
| LACP Support | Yes |
| QoS Support | Port-based, 802.1p, DSCP |
| Cooling | Fanless design |
| Mounting Options | Desktop or rackmountable |
| Dimensions (W x D x H) | 8.7 x 5.1 x 1.7 inches |
| Weight | 1.74 lbs |
| Enclosure Material | Metal |
| Warranty | Lifetime |
