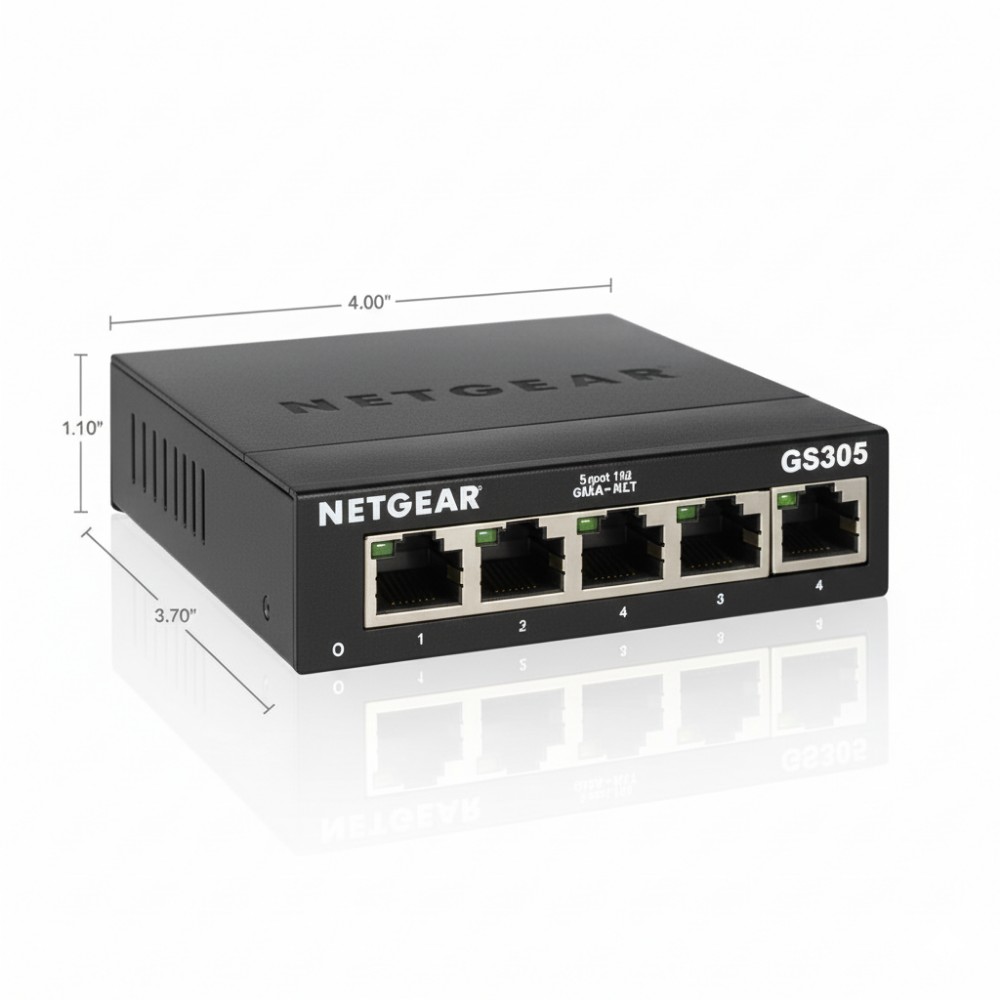

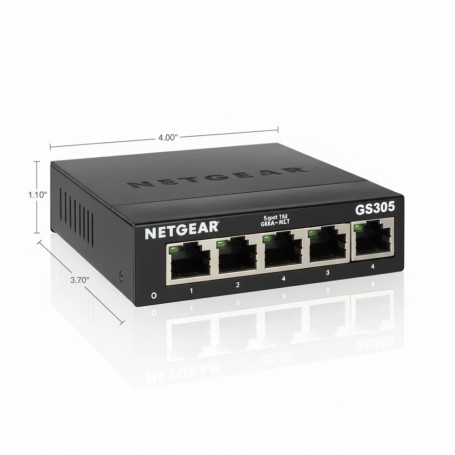

Netgear GS305-300PAS Ethernet Switch, 5-port Gigabit Ethernet Unmanaged Switch View larger

Netgear GS305-300PAS 5-Port Gigabit Unmanaged Switch

New

In Stock

5-Port Gigabit Unmanaged Metal Switch

×




$30.00

  • New

Detailed Specifications

Netgear GS305-300PAS 5-Port Gigabit Unmanaged Switch

Overview

The Netgear GS305-300PAS is a compact, 5-port Gigabit Ethernet unmanaged switch designed for small office/home office (SOHO) environments and edge deployments where reliable, high-speed connectivity is required without the complexity of management. This unit serves as a foundational building block for expanding network capacity at the desk level or within small branch offices. It effectively eliminates bottlenecks by providing a full non-blocking switching architecture, ensuring that all five ports can operate at wire speed simultaneously.

Engineered for durability, the GS305 features a rugged metal housing that provides superior heat dissipation compared to plastic alternatives, making it suitable for tight enclosures or wall-mount installations. As an unmanaged device, it offers true plug-and-play functionality; there is no software to configure, and it supports Auto-MDI/MDIX, removing the need for crossover cables. For organizations focusing on sustainability and operational efficiency, the switch integrates IEEE 802.3az Energy Efficient Ethernet, which automatically adjusts power consumption based on link status and cable length. This makes it an ideal choice for businesses looking for a cost-effective, "set-and-forget" solution to connect IP cameras, VoIP phones, or workstations at the network edge.

Key Features

- Five 10/100/1000 Mbps auto-sensing RJ45 ports.
- Durable metal chassis for efficient heat dissipation.
- Fanless design ensures silent operation in workspaces.
- Energy Efficient Ethernet (IEEE 802.3az) compliance.

Specifications

Brand Netgear
Part Number GS305-300PAS
Product Type Unmanaged Gigabit Switch
Total Ports 5 x Gigabit Ethernet (RJ45)
Switching Capacity 10 Gbps
MAC Address Table 2K entries
Packet Buffer 128 KB
Enclosure Material Metal
Power Supply External DC 5V / 0.7A
Power Consumption 2.15W (Max)
Dimensions 101 x 94 x 29 mm
Weight 0.25 kg
MTBF 3,931,111 hours
Operating Temperature 0° to 40°

Frequently Asked Questions

Does this switch support Power over Ethernet (PoE)?

No, the GS305-300PAS is a standard Gigabit Ethernet switch and does not provide power to connected devices.

No, this is an unmanaged switch. It is plug-and-play, meaning it works immediately upon connecting power and network cables.

Can this switch be mounted on a wall?

Yes, the GS305 includes wall-mount slots on the bottom of the chassis for flexible installation options.

Is the GS305-300PAS silent during Is any configuration required for this switch to work?operation?

Yes, the switch uses a fanless design, making it completely silent and ideal for noise-sensitive environments like offices.
