NETGEAR GS110TP 300NAS 8 Port Gigabit PoE+Ethernet Smart View larger

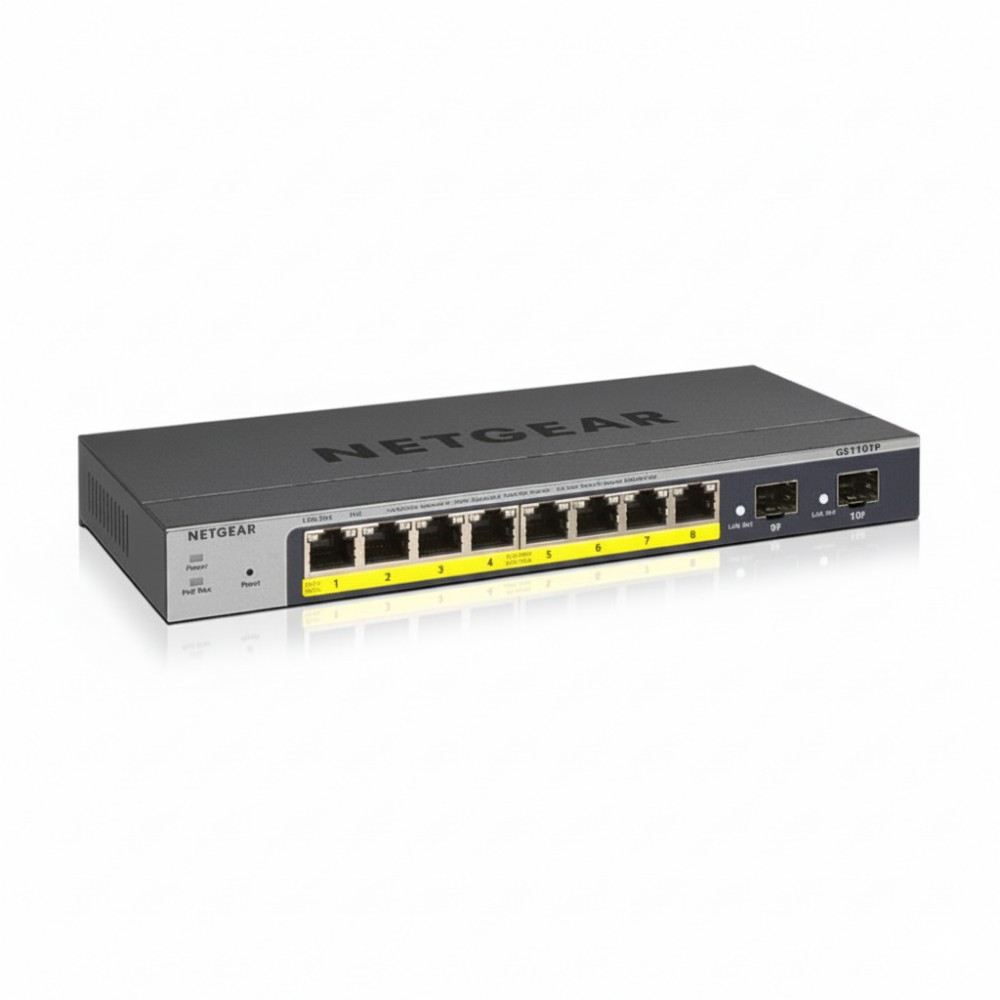

Netgear GS110TP-300NAS 8-Port PoE+ Smart Managed Pro Switch

New

In Stock

8-Port Gigabit PoE+ Smart Managed Switch
×




$155.00

  • New

Detailed Specifications

Netgear GS110TP-300NAS 8-Port PoE+ Smart Managed Pro Switch

Overview

The Netgear GS110TP-300NAS is a high-performance Gigabit Smart Managed Pro switch from the S350 series, specifically engineered for small-to-medium business (SMB) edge deployments. As a senior infrastructure engineer, I recognize this unit as a critical component for environments requiring silent operation and reliable power delivery. It features eight dedicated 10/100/1000BASE-T RJ45 ports, all supporting IEEE 802.3at (PoE+), providing a total power budget of 55W. This makes it an ideal solution for powering high-density edge devices such as WiFi 6 access points, IP surveillance cameras, and VoIP handsets.

Beyond basic connectivity, the GS110TP-300NAS offers robust Layer 2 management features, including VLAN support for network segmentation, Quality of Service (QoS) for traffic prioritization, and IGMP snooping to optimize multicast performance. The inclusion of two dedicated SFP ports allows for high-speed fiber uplinks, extending network reach beyond the standard 100-meter copper limit without sacrificing any of the eight PoE ports. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments like open-plan offices, conference rooms, or retail spaces. For IT administrators, the web-based management interface provides granular control and security protocols like Access Control Lists (ACLs) and 802.1x authentication, ensuring a secure and efficient network infrastructure.

Key Features

- 8 Gigabit PoE+ ports with a total 55W power budget.
- Two dedicated SFP ports for high-speed fiber uplinks.
- Fanless design for silent operation in noise-sensitive areas.
- Advanced L2 management including VLANs, QoS, and ACLs.

Specifications

Brand Netgear
Part Number GS110TP-300NAS
Product Type Smart Managed Pro Switch
Total Ports 10 (8 RJ45 + 2 SFP)
PoE Standard 802.3at PoE+ (Ports 1-8)
PoE Power Budget 55 W
Switching Capacity 20 Gbps
Forwarding Rate 14.8 Mpps
MAC Address Table 8K entries
VLAN Support Up to 64 VLANs
Acoustic Noise 0 dB (Fanless)
Power Supply External DC 54V 1.25A
Dimensions 236 x 101 x 27 mm
Operating Temperature 0° to 40° C

Frequently Asked Questions

Does this switch support PoE+ on all ports?

Yes, all 8 RJ45 ports support the IEEE 802.3at (PoE+) standard, providing up to 30W per port within the total 55W power budget.

Is the GS110TP-300NAS rack-mountable?

This model is primarily designed for desktop or wall-mount deployment. Its compact, fanless chassis is optimized for placement in areas where rack space is unavailable or noise is a concern.

Can the SFP ports be used simultaneously with the copper ports?

Yes, the two SFP ports are dedicated uplinks. You can utilize all 8 Gigabit PoE+ ports and both SFP ports at the same time for a total of 10 active connections.
