Detailed Specifications

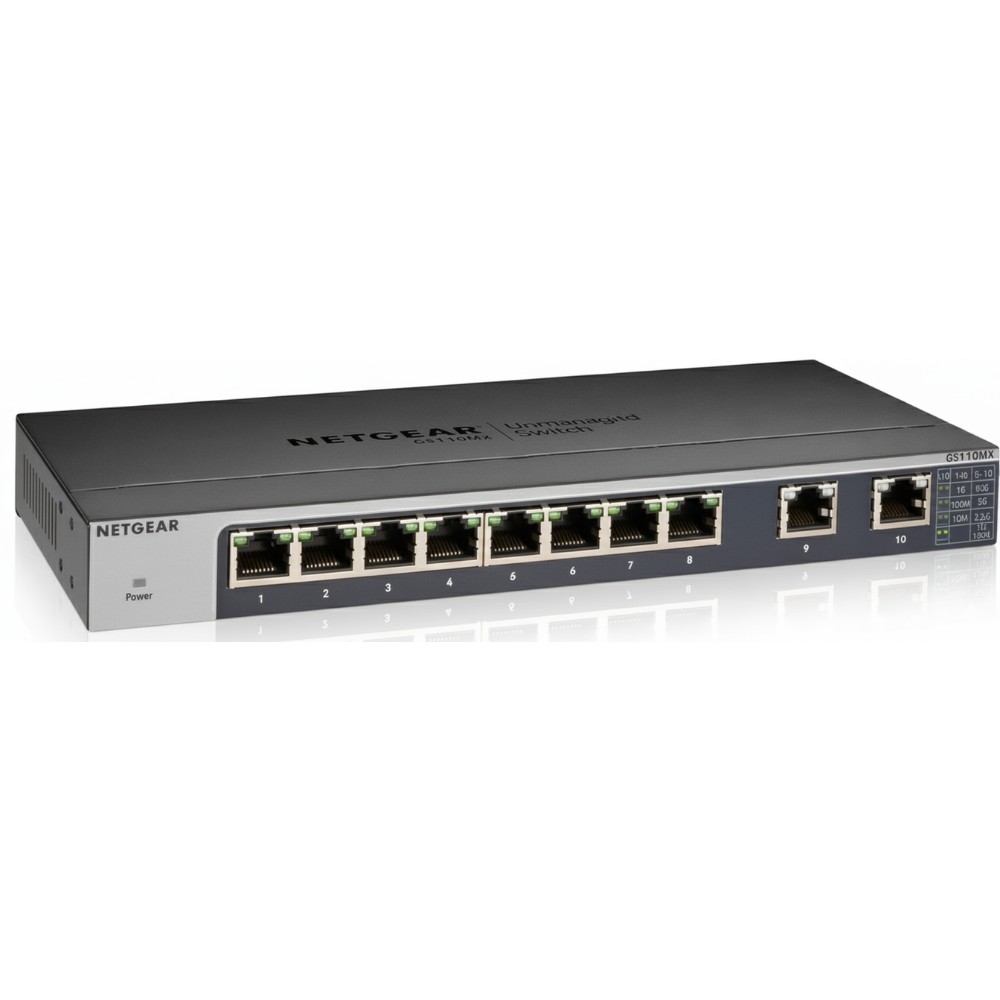

Netgear GS110MX-100NAS 10-Port Unmanaged Switch with Multi-Gig Uplinks
Overview:
The Netgear GS110MX-100NAS is an unmanaged Ethernet switch featuring 8 Gigabit ports and 2 multi-speed uplink ports supporting 100M, 1G, 2.5G, 5G, and 10G speeds. Designed for small businesses and home offices, it offers flexible deployment options with desktop, wall-mount, or rackmount capabilities. The fanless design ensures silent operation, making it suitable for noise-sensitive environments. With a 56 Gbps switching capacity and support for jumbo frames up to 10,240 bytes, it efficiently handles high-bandwidth applications.
Key Features :
8 Gigabit Ethernet ports
2 multi-speed 10G/Multi-Gig uplink ports
Fanless design for silent operation
Flexible mounting options (desktop, wall, rack)
Technical Specifications :
| Specification | Details |
|---|
| Brand | Netgear |
| Part Number | GS110MX-100NAS |
| Product Type | Unmanaged Ethernet Switch |
| Ports | 8 x 10/100/1000 Mbps |
| Uplink Ports | 2 x 100M/1G/2.5G/5G/10G |
| Switching Capacity | 56 Gbps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Up to 10,240 bytes |
| Priority Queues | 8 (Weighted Round Robin) |
| Packet Buffer Memory | 128 KB |
| Power Consumption | 9.2W (Max) |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x D x H) | 236 x 102 x 27 mm |
| Weight | 0.74 kg |
