Detailed Specifications

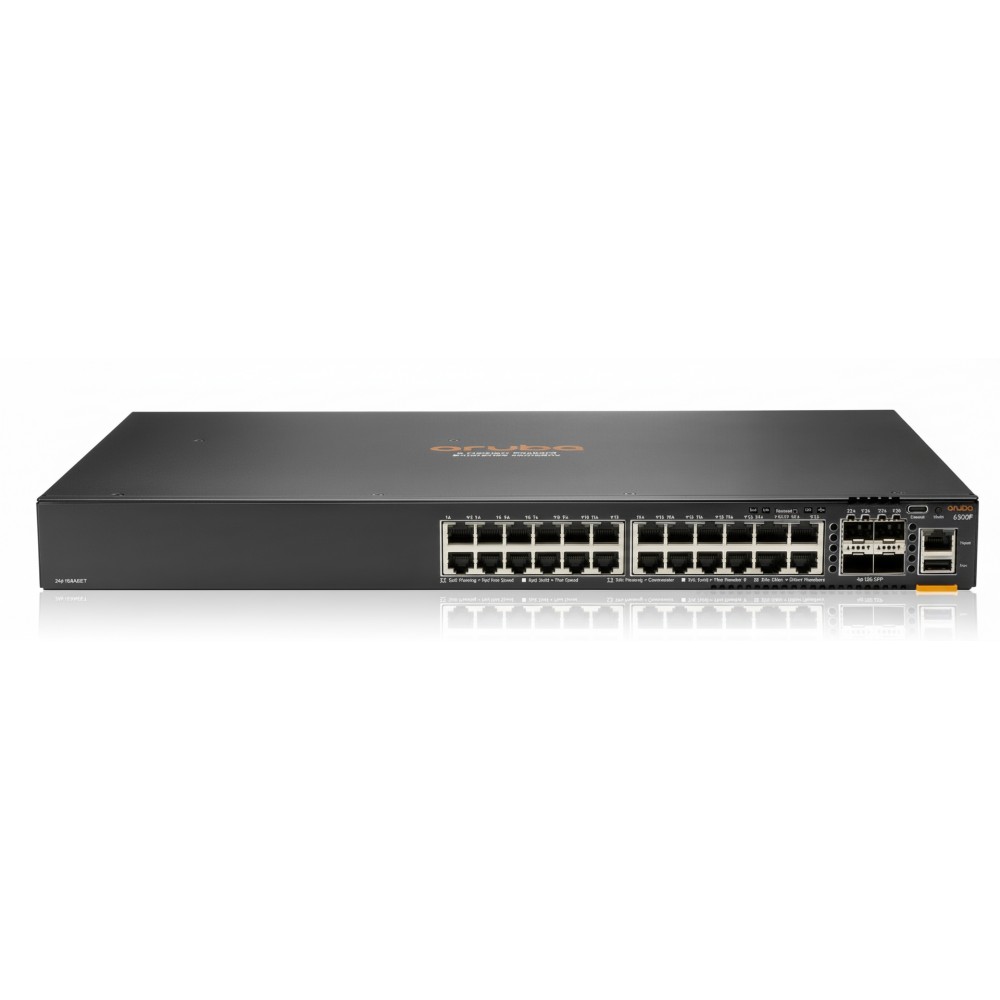

HPE Aruba CX 6200F JL725A - 24-Port Gigabit PoE+ Access Switch with 4×10G Uplinks
Overview
The HPE Aruba CX 6200F JL725A is a managed access-switch designed for campus or branch wiring closets that require 24 Gigabit PoE+ access ports plus four 10 Gigabit (SFP+) uplinks. It offers a total PoE power budget of 370 W to support wireless APs, IP cameras, VoIP phones and IoT endpoints. By stacking up to eight units via the Virtual Switching Framework (VSF), this switch fits environments from branch offices to larger wiring-closet aggregation scenarios. Running Aruba's AOS-CX operating system, it integrates into wired/wireless/IoT fabrics under a unified platform.
Key Features
24 × 10/100/1000BASE-T PoE+ ports plus 4 × 10 Gb SFP+ uplinks × gives high-density access plus head-room for uplinks.
370 W total PoE budget (Class 4) supports powering APs/cameras/VoIP endpoints without external injectors.
VSF stacking support up to eight members × simplifies management and expands port density under a single logical switch.
Runs AOS-CX with built-in analytics (Network Analytics Engine) and full Layer-3 functions (routing, ACLs) × suitable for advanced access layer deployments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba |
| Part Number | JL725A |
| Product Type | Managed Access Switch - 24-port Gigabit PoE+ |
| Key Spec - Port Configuration | 24 × 1 Gb PoE+ (RJ-45) + 4 × 10 Gb SFP+ |
| Key Spec - PoE Power Budget | 370 W total PoE budget |
| Key Spec - Switching Capacity | ~128 Gbps (routing/switching capacity) |
| Management | CLI, Web GUI, REST API (via AOS-CX) |
| Power Requirements | Fixed internal AC PSU, supports 100-240 V input |
| Dimensions & Weight | Approx. 1U rack-mount, 442 mm W × ~327 mm D × 44 mm H; ~4.9 kg |
| Warranty | Limited lifetime warranty (typical for Aruba enterprise) |
