Detailed Specifications

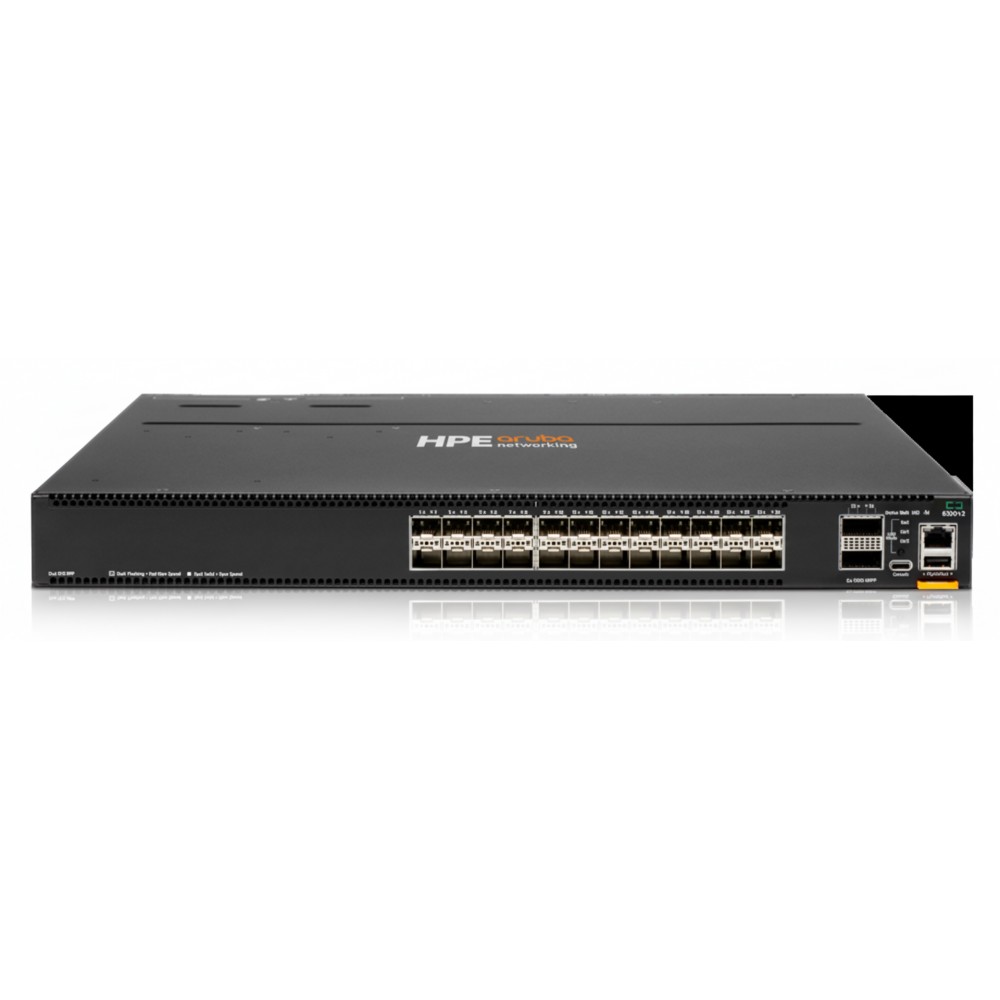

HPE Aruba CX 8360-24XF2C v2 JL710C - 24-Port 10G SFP+ + 2-Port 100G QSFP28 Managed Switch
Overview
The HPE Aruba CX 8360-24XF2C v2 (model JL710C) is a purpose-built managed switch for demanding core or aggregation roles in campus or data-centre networks that need high density 10G and uplink 100G connectivity. It provides 24 fixed 10 Gb SFP+ ports plus 2 high-speed 100 Gb QSFP28 uplink ports, with switching capacity in the 4.8 Tbps class per the series. It fits in a 1U rack slot and supJL710Cports advanced features such as full Layer-3 routing, telemetry and automation via Aruba's OS-CX platform. This switch is suitable for aggregating racks or as a campus core node, integrating into HPE/Aruba network ecosystems for analytics, automation and high availability.
Key Features
24 × 10 Gb SFP+ ports plus 2 × 100 Gb QSFP28 uplinks: optimal for connecting access switches and aggregating to spine or core layers.
~4.8 Tbps switching capacity (series figure) and high forwarding rates suited to heavy-east-west traffic loads in virtualised/data-centre environments.
Supports HPE Aruba OS-CX with Network Analytics Engine (NAE) and REST API for telemetry, automation and real-time troubleshooting.
Dual hot-swappable AC power supplies and redundant hot-swappable fan modules (typical in the series) for higher availability in rack deployments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba |
| Part Number | JL710C |
| Product Type | Managed Switch - Aggregation/Core Layer |
| Key Spec - Port Configuration | 24 × 10 Gb SFP+ + 2 × 100 Gb QSFP28 |
| Key Spec - Switching Capacity | Up to ~4.8 Tbps (per series) |
| Key Spec - Additional Throughput | Not explicitly published for packets/sec |
| Management | CLI, Web GUI, REST API (via OS-CX) |
| Power Requirements | Dual AC power supplies; typical consumption reported ~375 W (varies by bundle) |
| Dimensions & Weight | 1U rack-mount; approx 442 × 406 × 44 mm (W×D×H) |
| Warranty | Standard HPE enterprise limited lifetime (check local terms) |
