Detailed Specifications

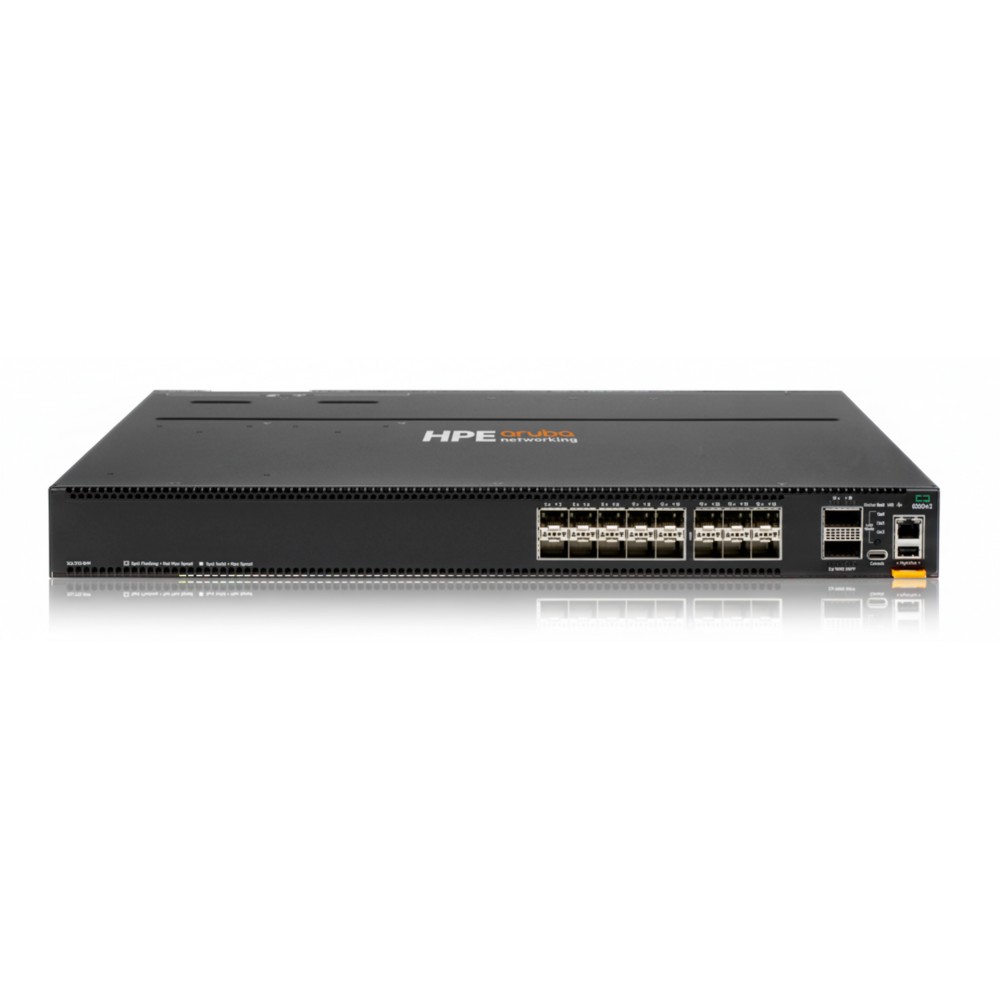

HPE JL703C - Aruba CX 8360-16Y2C v2 1U Fixed-Port Switch
Overview
The HPE JL703C is a 1-rack-unit (1U) fixed-port switch in the Aruba CX 8360 v2 family, configured for 16 ports of 1/10/25 GbE (SFP/SFP+/SFP28) and 2 ports of 40/100 GbE (QSFP+/QSFP28). It delivers up to approximately 4.8 Tbps switching capacity, supports advanced features like MACsec encryption and the embedded Network Analytics Engine (NAE). This makes it well suited for campus-core, aggregation or leaf deployments in data-centre racks where you need high-density 25G access and uplinks to 100G. The back-to-front airflow variant (3 fans, dual AC PSUs) aligns with containment, rack cooling and serviceability practices.
Key Features
16 × 1/10/25 GbE plus 2 × 40/100 GbE ports give a compact but high-speed access/uplink mix.
~4.8 Tbps switching capacity (~2,678 Mpps) supports sizeable traffic loads for modern data-centre fabrics.
Built-in MACsec support for secured links on select ports - useful for untrusted domains or inter-rack uplinks
Aruba OS-CX platform with NAE analytics, REST/Python APIs and VSX high-availability make this switch operational-ready for enterprise deployments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL703C |
| Product Type | Fixed-port L3 Managed Ethernet Switch (1U) |
| Port Configuration | 16 × 1/10/25 GbE (SFP/SFP+/SFP28) + 2 × 40/100 GbE (QSFP+/QSFP28) |
| Switching Capacity | Up to ~4.8 Tbps |
| Forwarding Rate | ~2,678 Mpps |
| Cooling / Airflow | Back-to-front airflow variant (3 fans) |
| Power Supply | Dual AC, hot‐swap capable |
| Typical Max Power | ~325 W |
| Dimensions | ≈ 1.73″ H × 17.4″ W × 16.0″ D (≈44×44×40 cm) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Warranty | Standard HPE enterprise hardware warranty |
