Detailed Specifications

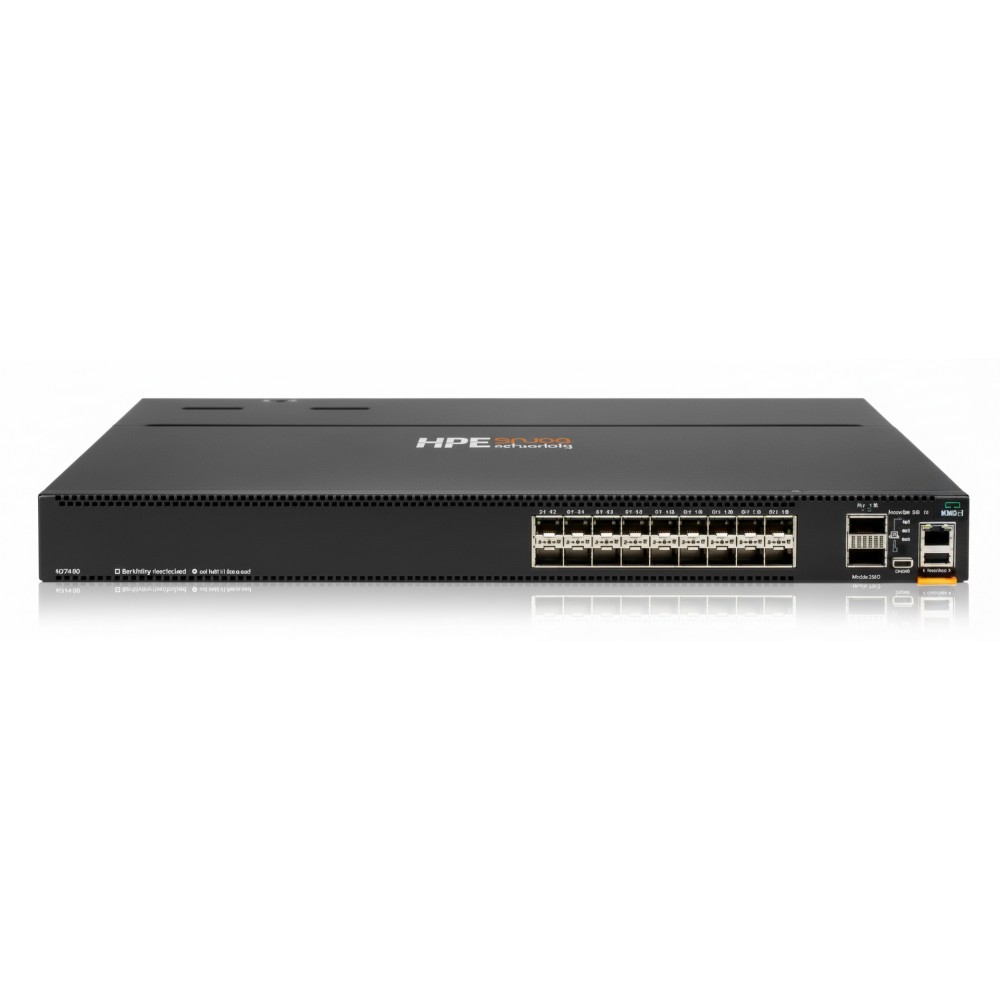

HPE JL702C - Aruba CX 8360-16Y2C v2 16×25G + 2×100G Switch
Overview
The HPE JL702C is a 1-rack-unit (1U) fixed-port enterprise switch in the Aruba CX 8360 v2 family, configured with 16 ports of 25 GbE (SFP28) plus 2 ports of 100 GbE (QSFP28) in a compact form-factor. It delivers approximately 4.8 Tbps of switching capacity, and features front-to-back airflow, dual power supplies (as per bundle), and is geared for data-centre leaf/spine or high-density campus aggregation deployments. It supports full ArubaOS-CX management, advanced routing, analytics and high-availability features.
Key Features
16 × 1/10/25 GbE (SFP/SFP+/SFP28) access ports combined with 2 × 40/100 GbE (QSFP/QSFP28) uplink ports for compact but high-speed connectivity.
Approximately 4.8 Tbps switching capacity and support for MACsec on select ports for secure links.
Front-to-back airflow variant and hot-swappable dual power supplies make it rack-cooling friendly in containment environments.
Integrated ArubaOS-CX with Network Analytics Engine (NAE), automation APIs (REST, Python), and high-availability VSX support.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba Networking |
| Part Number | JL702C |
| Product Type | Fixed-port L3 Managed Switch - 1U |
| Port Configuration | 16 × 25 GbE SFP28 + 2 × 100 GbE QSFP28 |
| Switching Capacity | ~4.8 Tbps |
| Airflow / Cooling | Front-to-Back airflow variant |
| Redundancy | Dual hot-swappable AC power supplies (bundle) |
| Form Factor & Chassis | 1U rack mount |
| Depth / Dimensions | Approx. 1.73″ H × 17.4″ W × 16.0″ D (44.0 cm × 40.6 cm) |
| Max Power Consumption | Approx. 325 W typical, 1,109 BTU/hr heat dissipation |
| Warranty | Standard HPE enterprise hardware warranty |
