Detailed Specifications

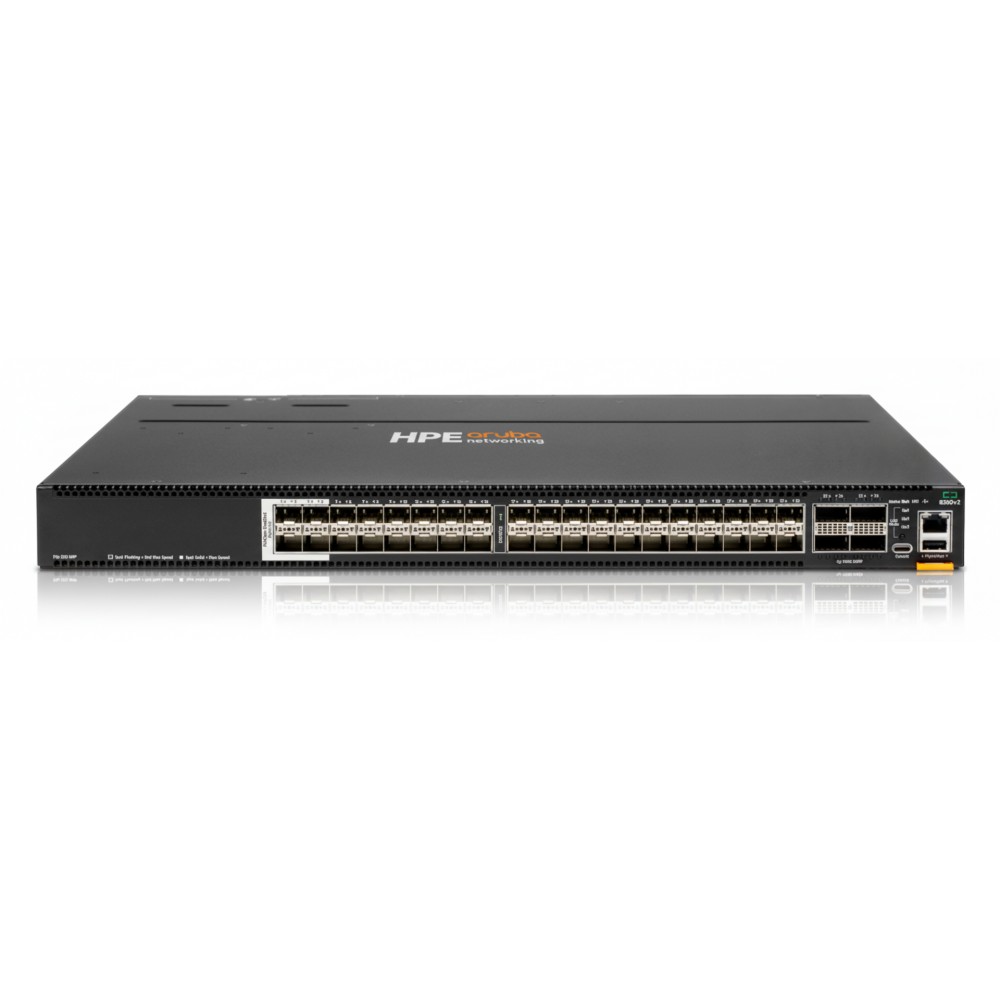

HPE JL701C - Aruba CX 8360-32Y4C v2 32×25G + 4×100G Switch
Overview
The HPE JL701C is a 1-rack-unit fixed-port switch model in the Aruba CX 8360 v2 series, configured with 32 ports of 25 GbE (SFP28) and 4 ports of 100 GbE (QSFP28) in a compact 1 U chassis. It is built for campus core, data-centre aggregation or top-of-rack scenarios where high-density 25G access plus uplink capacity is required. The unit delivers up to approximately 4.8 Tbps of switching capacity and supports moJL701Cdern features such as MACsec encryption, full Layer 2/3 routing and the Aruba OS-CX management ecosystem.
Key Features
Delivers ~4.8 Tbps switching capacity (approx. 2,678 Mpps) to support heavy rack-to-rack or aggregation traffic
32× 1/10/25 GbE SFP28 plus 4× 40/100 GbE QSFP28 ports provide the mix of access and uplink you'd need in a modern leaf/aggregation switch.
Supports Aruba's embedded Network Analytics Engine (NAE), programmable REST/Python interface, and Virtual Switching Extension (VSX) for high availability.
Hot-swappable dual power-supplies and fan modules, in a 1U form-factor, align with data centre requirements for uptime and serviceability
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba Networking |
| Part Number | JL701C |
| Product Type | Fixed-port L3 Managed Ethernet Switch |
| Switching Capacity | Up to ~4.8 Tbps |
| Forwarding Rate | Approx. 2,678 Mpp |
| Port Configuration | 32 × 25 GbE (SFP28) + 4 × 100 GbE (QSFP28 |
| Redundant Power Supplies | Yes × 2 field replaceable, hot-swappable |
| Typical Power Consumption | ~425 W |
| Dimensions (HxWxD) | 1.73″ × 17.4″ × 16.0″ (approx) |
| Weight | ~18.0 lb (≈ 8.19 kg) |
| Warranty | Limited lifetime warranty listed |
