Detailed Specifications

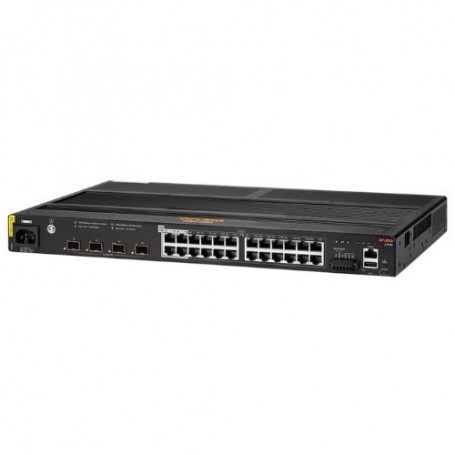

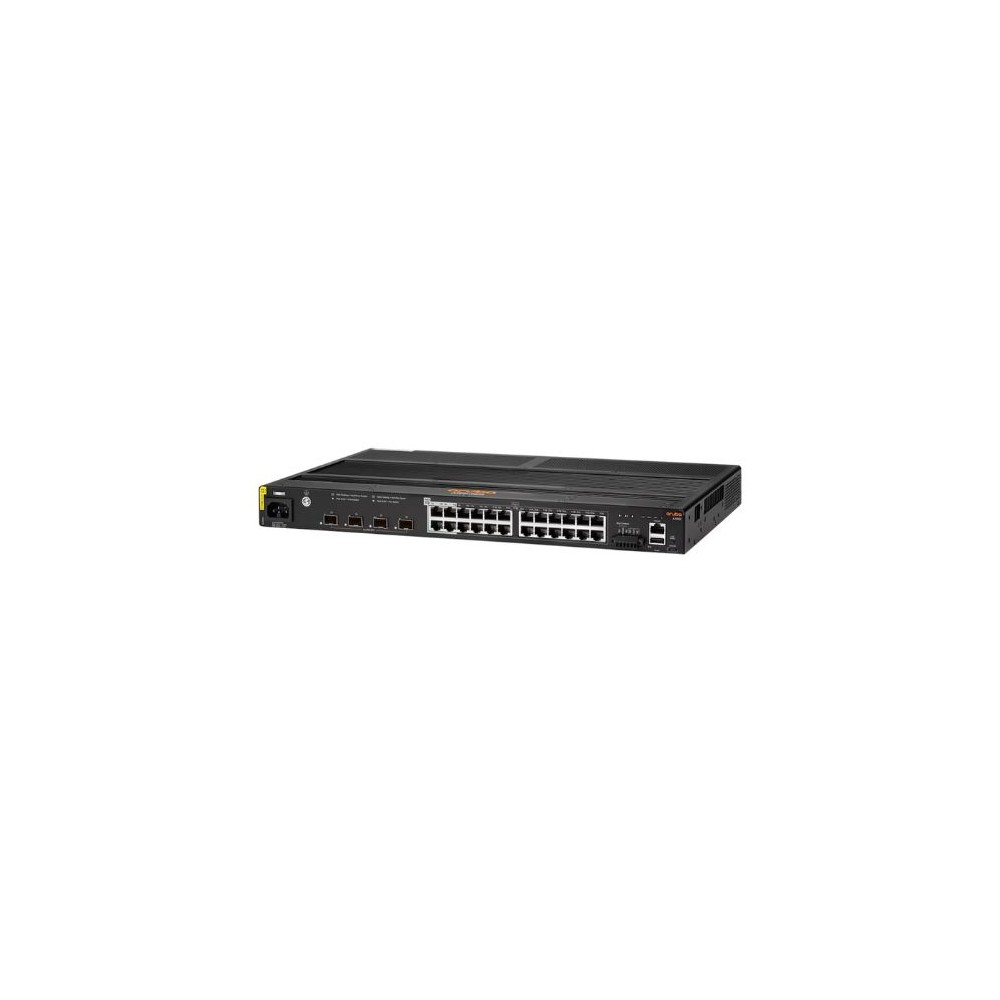

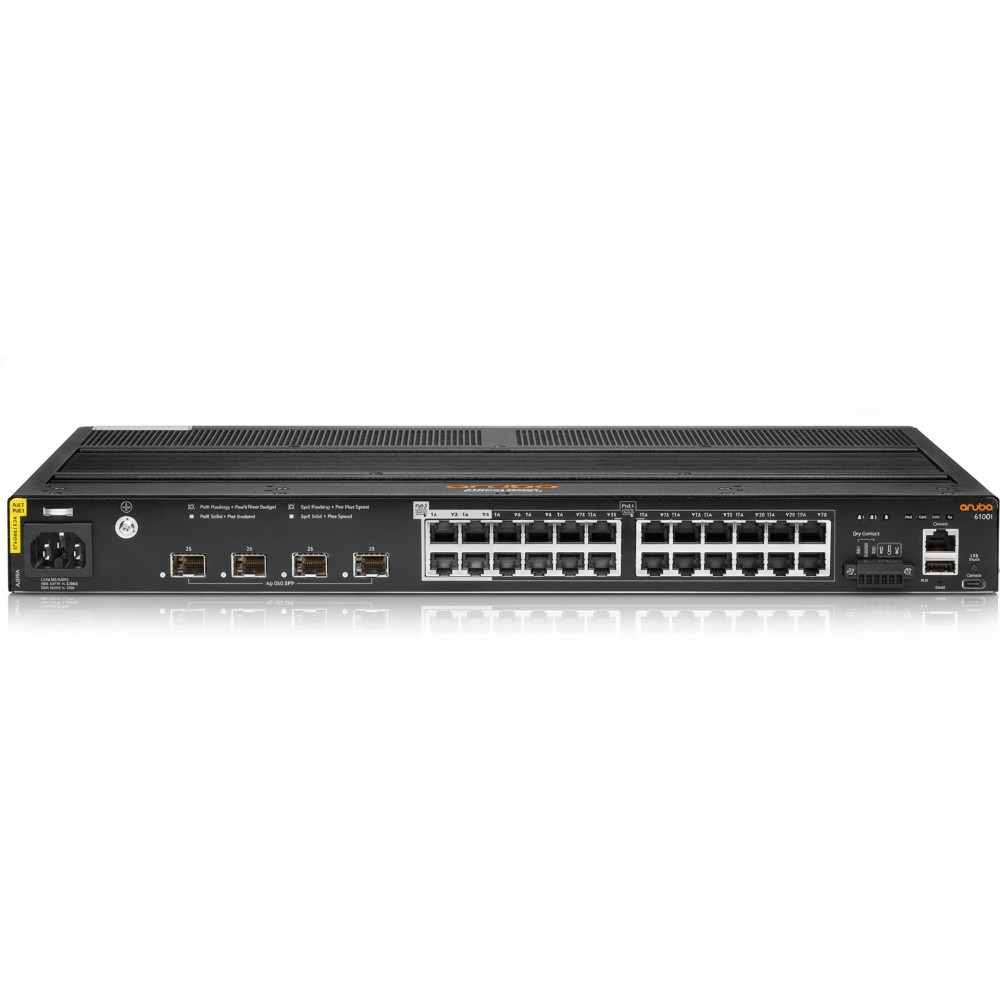

HPE JL818A - Aruba CX 4100i 24-Port PoE+ Rugged Edge Switch
Overview
The HPE JL818A (Aruba CX 4100i) is a 24-port Gigabit managed access switch designed for edge, industrial and harsh-environment deployments where you need robust wired connectivity plus high-speed uplinks. It supports 20 Class 4 (30 W) PoE+ ports and 4 Class 6 (60 W) PoE ports, with 4 × 10 Gb SFP+ uplinks, making it a good fit for connecting IP cameras, wireless access points and IoT devices in factory floors, substations or transportation racks. It fits neatly into existing rack or DIN-rail setups, and layers into the broader Aruba switching ecosystem.
Key Features
20 ports capable of IEEE 802.3at (Class 4, ~30 W) plus 4 ports capable of IEEE 802.3bt (Class 6, ~60 W) PoE on the RJ-45 interfaces, enabling mixed device power loads.
Four 10 Gb SFP+ uplink ports provide high bandwidth to core/distribution switches and prevent uplink bottlenecks.
Ruggedized chassis rated for industrial-edge use (extended temperature, IP30 rating), allowing operation in harsher environments beyond typical office racks.
Full Aruba AOS-CX management stack with static routing, ACLs, VLAN segmentation and no extra software licensing required, matching enterprise standards with industrial readiness.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL818A |
| Product Type | Managed Access Switch (24×1 Gb PoE+ with 4×10 Gb uplinks) |
| Port Configuration | 24× 1 Gb RJ-45 (20× Class 4 + 4× Class 6 PoE) + 4× 10 Gb SFP+ |
| PoE Power Budget | Up to 240 W PoE without de-rating under standard conditions |
| Switching Capacity | Up to 128 Gbps (95 Mpps forwarding) |
| Management | Web GUI, CLI, REST APIs, Aruba NetEdit under AOS-CX |
| Power Requirements | Internal AC PSU (100-240 V AC) in rack-mount version; models allow external PSUs for DIN-rail variant |
| Dimensions & Weight | 1.73″ H × 17.5″ W × 12.0″ D (~6.50 kg) for rack version |
| Warranty | Standard hardware warranty (per region) |
