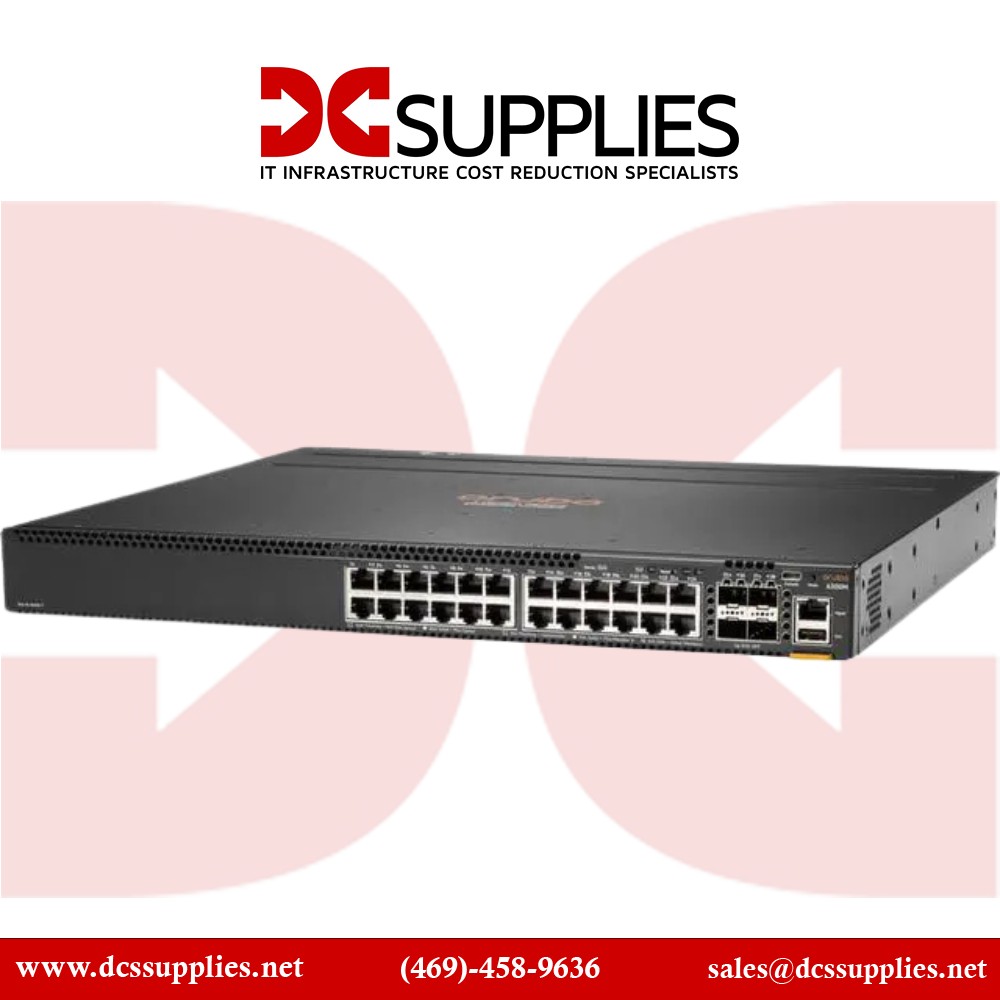

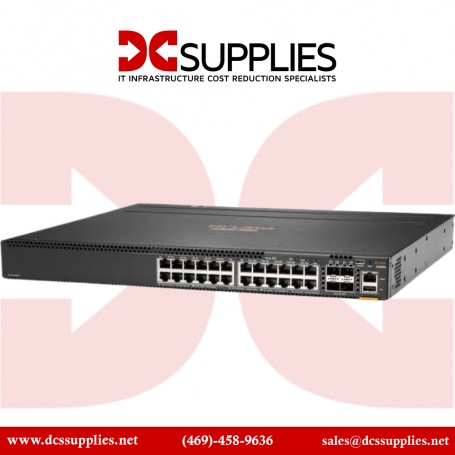

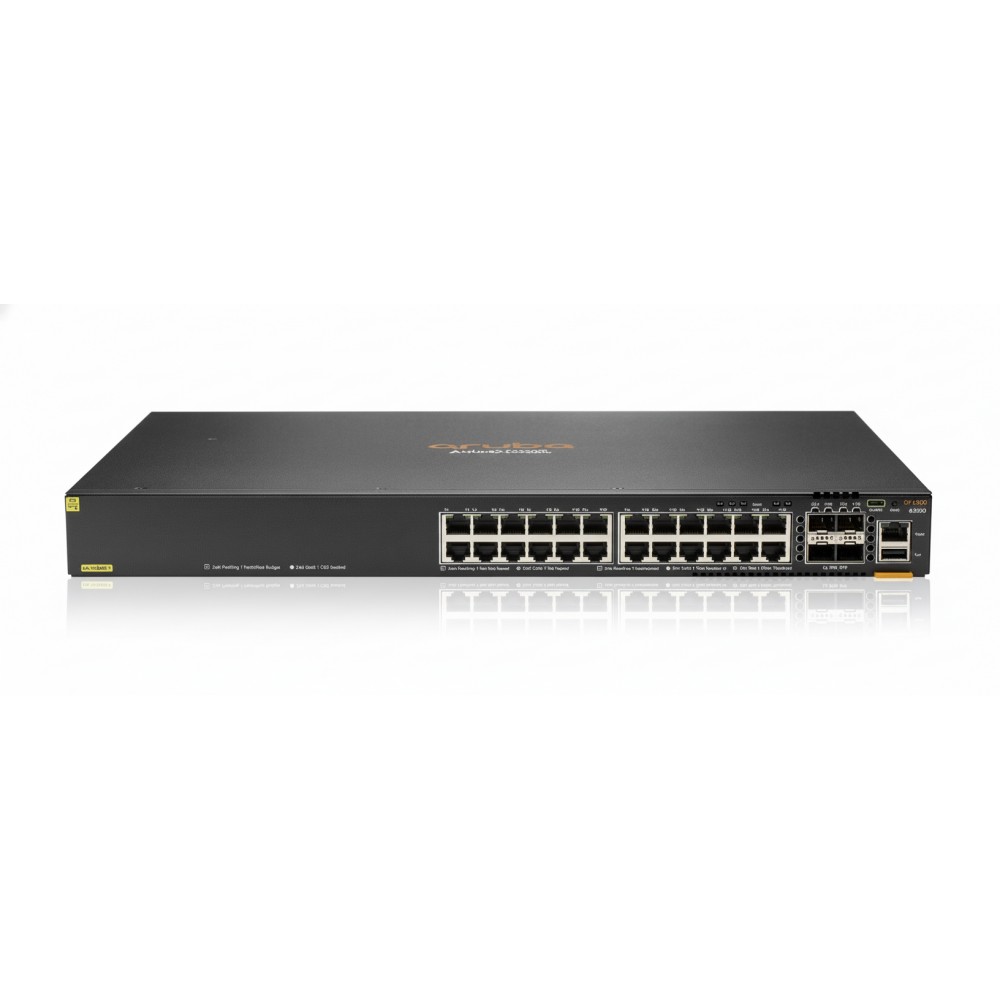

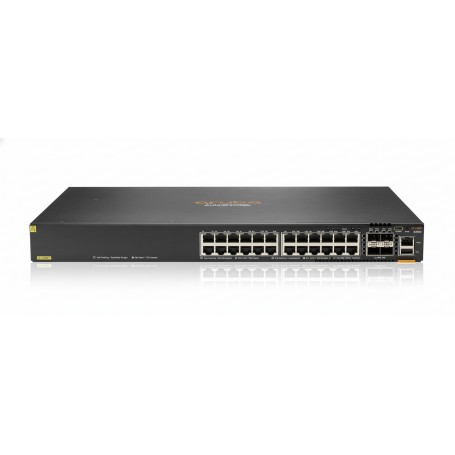

HPE Aruba JL666A 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch

New

In Stock

HPE Aruba JL666A 6300F 24-port 1GbE PoE & 4...

×




$2,014.00

  • New

Detailed Specifications

HPE JL666A

6300F 24-Port 1GbE PoE+ & 4-Port SFP56 Switch – Enterprise-Class Layer 3 Access Switch with Modular Uplinks

The HPE Aruba JL666A 6300F 24-Port Ethernet Switch is an advanced enterprise-grade Layer 3 switch, purpose-built for access layer deployments that demand performance, security, and scalability. With 24 1GbE PoE+ ports and four modular 50G-ready uplinks, it’s the perfect fit for powering edge devices and aggregating network traffic in demanding environments.

Features

Part of the Aruba CX 6300F Series, the JL666A runs the AOS-CX operating system, delivering consistent Layer 2/3 services, real-time analytics, and automation. The switch features 24 Class 4 PoE ports supporting up to 30W each—ideal for VoIP, IoT, and wireless AP deployments—and 4 modular SFP56 uplinks for high-bandwidth fiber uplinks.

Advanced Options

This model supports VSF (Virtual Switching Framework) for simple stacking and seamless scalability. Designed with redundancy in mind, it supports field-replaceable, hot-swappable power supplies and fans to ensure maximum uptime in mission-critical environments.

Product Key Features

    •  24× 1GbE PoE+ (Class 4) ports for efficient edge connectivity

    •  4× high-speed SFP56 uplinks (up to 50G) for scalable expansion

    •  Full Layer 3 support with Aruba AOS-CX for dynamic routing and segmentation

    •  Up to 370W total PoE budget for IP phones, access points, and cameras

    •  Supports VSF stacking and hot-swappable power/fan units

    •  Ideal for campus, branch, and smart building network deployments

Reliability & Performance

Delivering a switching capacity of 184 Gbps and ~137 Mpps forwarding rate, the JL666A ensures fast, reliable packet delivery. Its enterprise-grade hardware and software deliver policy-based segmentation, secure management, and optimized traffic control. It’s a resilient platform for edge connectivity and smart campus environments.

Key Features (Bullet List)

    • 24× 1GbE RJ-45 ports with Class 4 PoE+

    • 4× SFP56 modular uplink slots (1/10/25/50G supported)

    • 370W PoE budget (up to 30W per port)

    • Aruba AOS-CX with Layer 2/3 features and analytics

    • 184 Gbps switching capacity / ~137 Mpps forwarding

    • VSF stacking, hot-swappable PSU and fans

SpecificationDetails
Model Number JL666A (Aruba CX 6300F)
Product Type Layer 3 Managed Ethernet Switch
Access Ports 24× 1GbE RJ-45 PoE+ (Class 4)
Uplink Ports 4× SFP56 modular (1/10/25/50G)
Switching Capacity 184 Gbps
Forwarding Rate ~137 Mpps
PoE Budget 370W total; 30W max per port
Power Supply Modular, hot-swappable (sold separately)
Operating System Aruba AOS-CX
Dimensions 17.42 x 15.8 x 1.73 in (1U Rackmount)
Weight 12.7 lbs (5.76 kg)
