Detailed Specifications

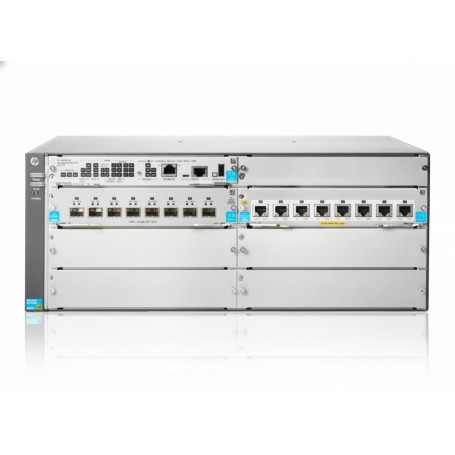

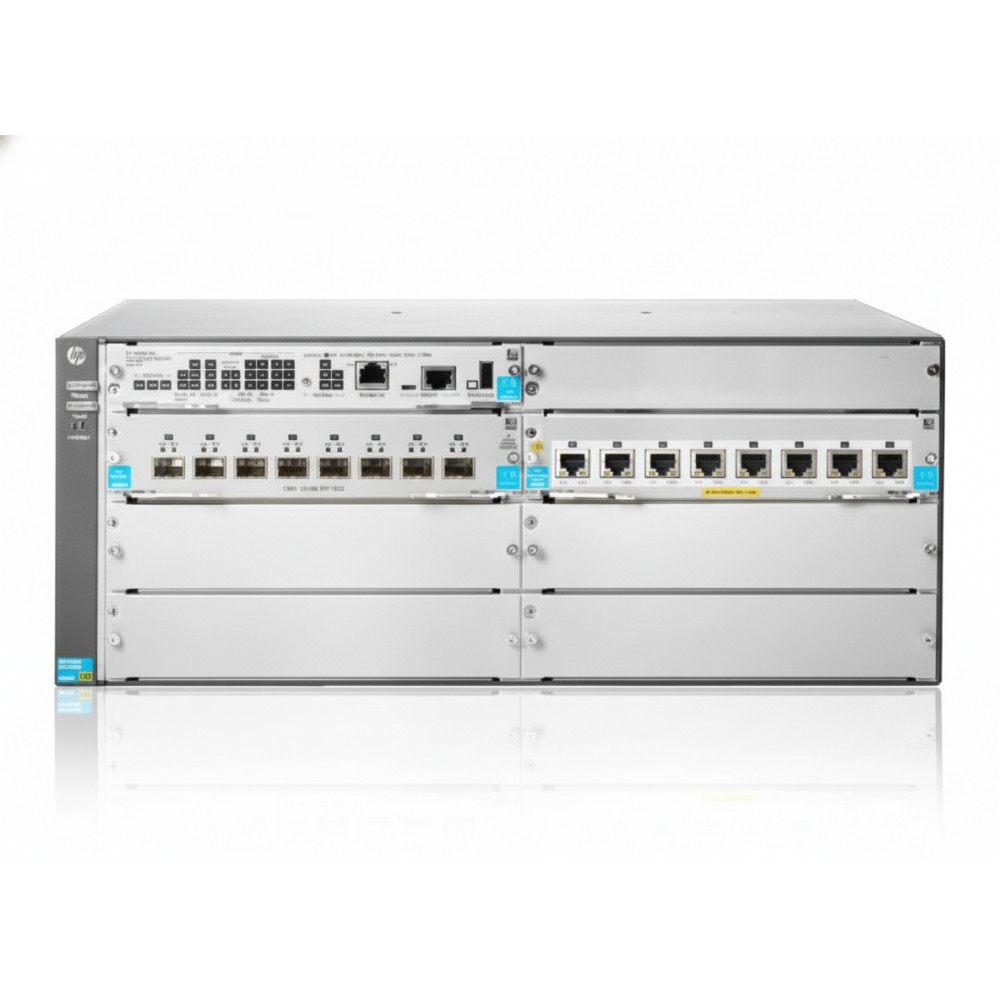

HPE JL002A - 5406R v3 zl2 Modular Switch
Overview
The HPE JL002A (5406R v3 zl2 chassis) is a high-performance modular switch designed for large campus or enterprise aggregation layers where multi-gig access and 10 Gb uplinks are required. It solves the problem of connecting wired and wireless high-speed endpoints while maintaining a scalable modular architecture. This switch fits into 4-rack-unit space in wiring closets or aggregation racks and supports campus access modules, VSF stacking, and full Layer 3 routing. For example, you can connect high-density Wi-Fi 6/6E access points and multi-gig wired desktops to the 8 multi-gig PoE+ ports, uplink via the 8 SFP+ ports, and expand via module slots×all under one management domain. It is compatible with the broader HPE/Aruba 5400R zl2 ecosystem so you can reuse stack modules, management modules and power supplies across sibling chassis.
Key Features
Eight RJ-45 Smart Rate multi-gigabit ports (1/2.5/5/10GBASE-T) with PoE+ support to power high-performance devices directly.
Eight open 10 GbE SFP+ uplink ports for fiber connectivity and high-speed aggregation.
Modular chassis with four additional module slots for future expansion or uplink modules.
Switching capacity up to 960 Gbps for layer-2/3 throughput and up to ~571.4 Mpps packet forwarding.
Robust Layer 3 feature set, supports IPv4/IPv6 routing, high availability stacking (VSF), ideal for mobile campus aggregation environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JL002A |
| Product Type | Modular Layer 3 Switch (5406R v3 zl2 chassis) |
| Key Spec - Port Configuration | 8 × 1/2.5/5/10 GbE PoE+ ports + 8 × 10 GbE SFP+ uplinks |
| Key Spec - Switching Capacity | 960 Gbps |
| Key Spec - Forwarding Rate | Up to ~571.4 Mpps |
| Management | Full CLI, Web GUI, SNMP, out-of-band ports |
| Power Requirements | No PSU included; supports up to two PSUs (700 W, 1100 W, 2750 W options) |
