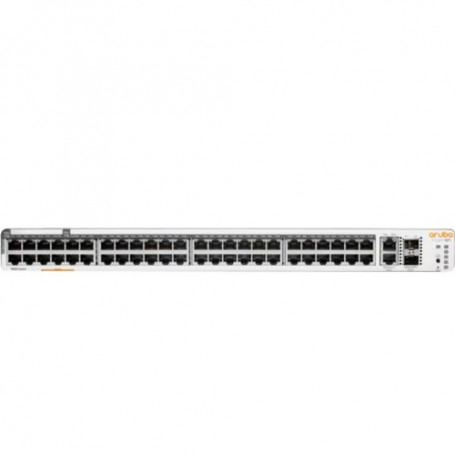

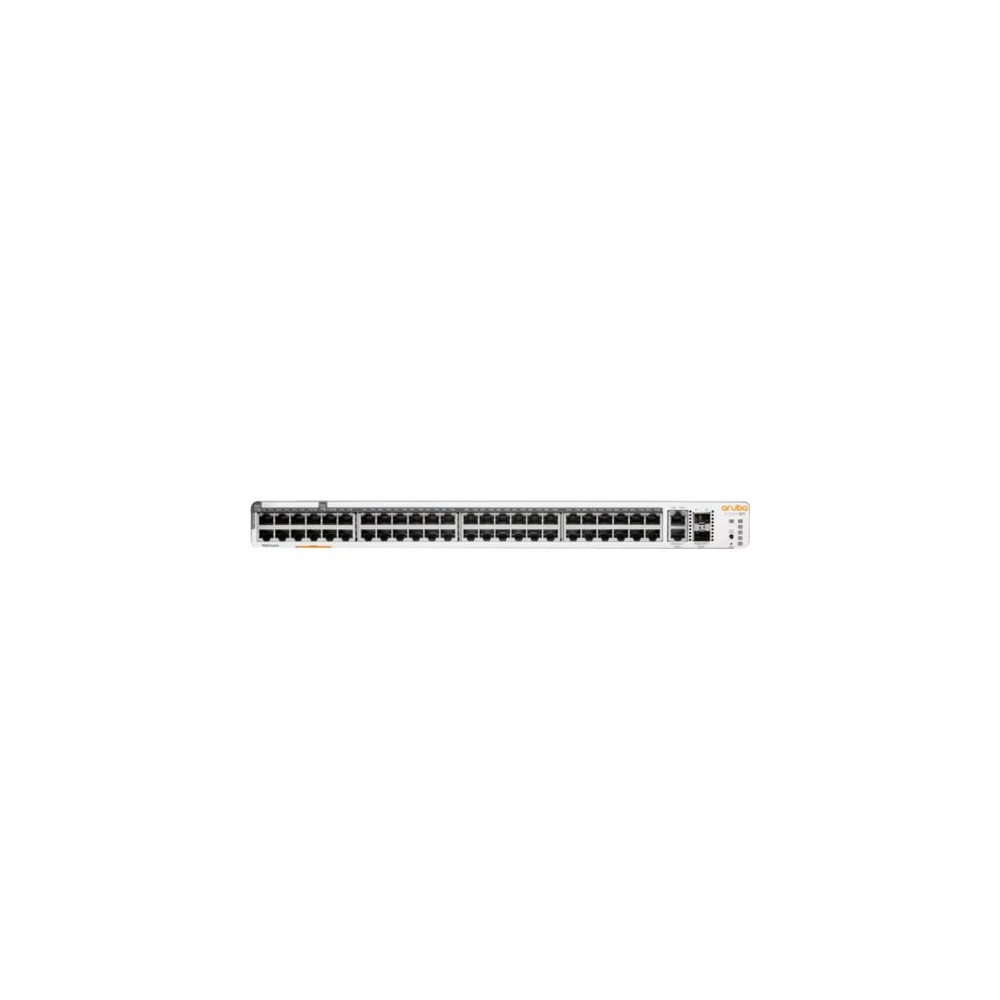

HPE Aruba JL809A 48 ports Gigabit Ethernet Switch

New

In Stock

HPE Aruba JL809A 48-Port Gigabit Ethernet Switch High-Performance,...

×




$1,705.00

  • New

Detailed Specifications

HPE JL809A

1960 Series – Instant On 48‑Port Gigabit PoE+ Switch with 10G Uplinks (JL809

The HPE Aruba JL809A, part of the Instant On 1960 series, is a powerful Layer 2+ smart-managed switch tailored for small and growing businesses. It offers 48 Gigabit PoE+ ports, high-speed 10 GbE uplinks, and flexible management tools—delivering reliable network infrastructure for Wi-Fi APs, IP phones, cameras, and more.

Features

Designed for bandwidth-intensive environments, the JL809A features a dual uplink setup of 10GBASE-T and SFP+, providing seamless connectivity to servers, storage, or core switches, reducing bottlenecks With cloud and local stacking support, you can manage up to four switches under a single interface—ideal for expanding businesses .

Advanced Options

This switch delivers a full suite of smart-managed capabilities, including VLAN segmentation, ACL enforcement, link aggregation, static routing, and DoS protection—all accessible via the Instant On app or Web GUI without extra fees .

Product Key Features

  •  48× 10/100/1000 Mbps PoE+ (Class 4) ports with a 600 W total PoE budget

  •  2× 10GBASE‑T + 2× 10G SFP+ uplink ports for high-bandwidth backbone

  •  Smart-managed Layer 2+ with local/cloud-based stacking (up to 4 units)

  •  Advanced security with ACLs, 802.1X authentication, VLANs, and DoS protection

  •  Manageable via Instant On mobile app, cloud/portal, or local Web GUI—no licensing required

  •  Rack-mountable, fan-cooled chassis ideal for busy offices and edge deployments

Reliability & Performance

Powered by an ARM Cortex-A9 processor, the JL809A supports non-blocking performance at 176 Gbps switching capacity and 131 Mpps forwarding rate . Equipped with a 600 W PoE budget, it can power Class 4 (30 W) and even Class 6 (60 W) endpoints like PTZ cameras and door controllers Fan-cooled and rack-equipped, it's well-suited for enterprise-grade reliability.

Key Features :

  • 48× Gigabit PoE+ RJ‑45 ports; 600 W PoE budget

  • 2× 10GBASE-T + 2× 10G SFP+ uplinks

  • Smart-managed Layer 2+ with stacking (cloud/local)

  • VLAN, ACL, LACP, static routing, IGMP snooping

  • Security: 802.1X, ACLs, DoS attack protection

  • Fan-cooled rack-mount design, PoE++ capable

SpecificationDetails
Model Number JL809A
Series Aruba Instant On 1960
Access Ports 48× 10/100/1000 Mbps RJ‑45 (PoE+, Class 4/6)
Uplink Ports 2× 10GBASE‑T RJ-45, 2× 10G SFP+
PoE Power Budget 600 W
Switching Capacity 176 Gbps (non-blocking)
Forwarding Rate 131 Mpps
Stackable Yes, up to 4 units via local and cloud stacking
Management Instant On Mobile App & Cloud, Local Web GUI, SNMP 1/2c/3
L2 Features VLANs, ACLs, LACP, STP/RSTP, IGMP snooping
L2+ Features Static routing, DHCP snooping, DoS protection
Security 802.1X, ACLs, VLAN isolation, automated DoS monitoring
Performance Specs MAC Table 16 K; Jumbo Frames 9216 bytes
Power Internal PSU, 100–240 VAC
Cooling Active fans
Dimensions (HxWxD) ~1.73″ × 17.4″ × 13.8″
Weight ~4 kg (8–9 lbs)
