Detailed Specifications

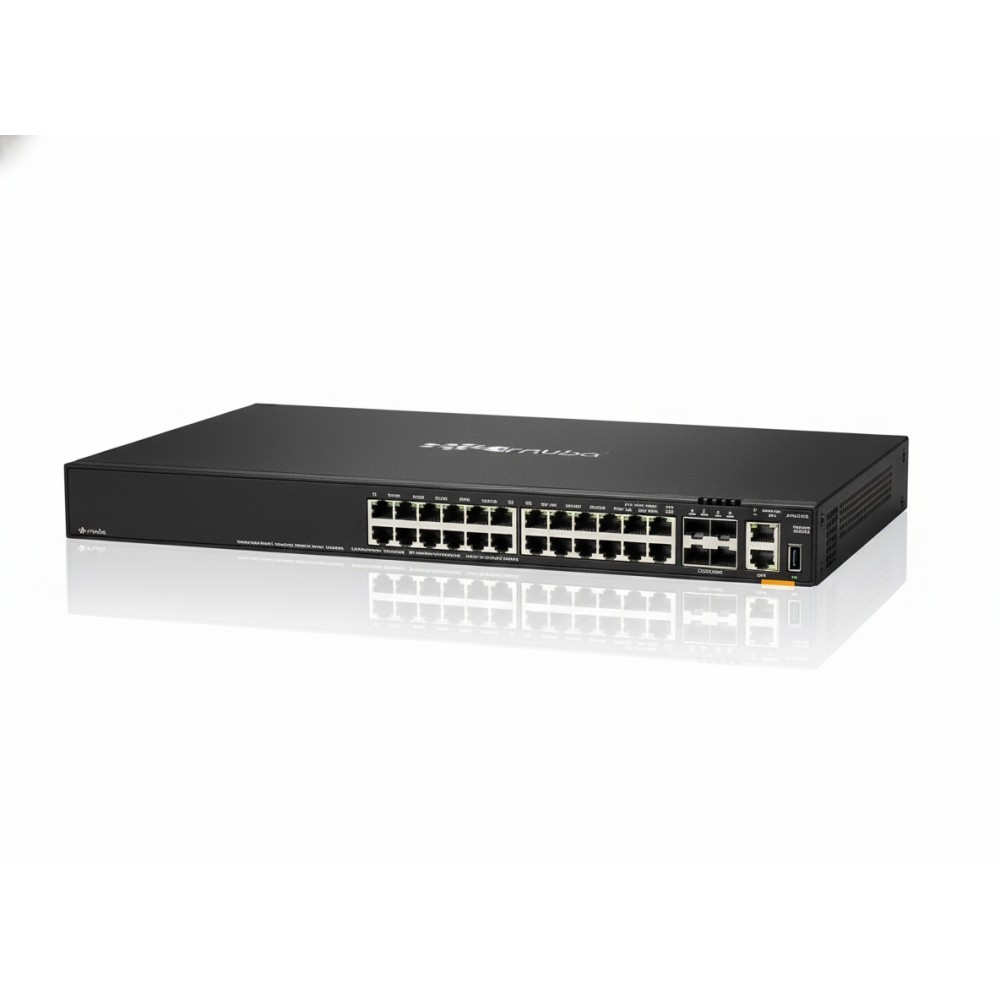

HPE JL724A - Aruba CX 6200F 24 G 4 SFP+ Access Ethernet Switch
Overview
The HPE JL724A (Aruba CX 6200F 24G 4SFP+ Switch) is a 24-port 1 Gb RJ-45 access layer switch with 4 dedicated 1/10 Gb SFP+ uplink ports. It is built for network engineers deploying access switches in campus wiring closets, branch offices or aggregator strips where full gigabit access is needed along with high-speed uplinks. With a switching capacity of 128 Gbps, it can forward full line-rate traffic across all ports without oversubscription. The unit supports the Aruba CX operating system, built-in analytics and stackable deployment (up to 8 switches with VSF) to simplify management and scale. It fits into existing 1U racks and integrates into the HPE/Aruba ecosystem for wired-wired and wired-wireless convergence.
Key Features
24× 10/100/1000 BASE-T access ports plus 4× 1/10 Gb SFP+ uplinks × offers broad user-port coverage with uplink headroom.
128 Gbps switching capacity and up to 95.2 Mpps forwarding rate × ensures non-blocking performance at the access layer.
Supports stackable Virtual Switching Framework (VSF) up to 8 members × simplifies wiring closet expansion and redundancy.
Built-in Aruba Network Analytics Engine (NAE) and programmable CX OS × enables detailed monitoring, telemetry and automation.
Compact 1U form-factor suitable for access racks and branch-office deployments × straightforward for field installation and service.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL724A |
| Product Type | Fixed-port Access Switch (24×1 Gb + 4×1/10 Gb SFP+) |
| Port Configuration | 24 × 10/100/1000 BASE-T + 4 × 1/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | Up to ~95.2 Mpps |
| Management | Aruba CX OS (CLI, Web GUI, Aruba Central, REST APIs) |
| Power Requirements | AC input 100-120/200-240 V; typical ~59-W consumption at full traffic |
| Dimensions & Weight | ~1.73″ H × ~17.4″ W × ~12.9″ D (~4.39 cm × 44.2 cm × 32.7 cm) |
| Warranty | Aruba/HPE limited lifetime hardware warranty |
