Detailed Specifications

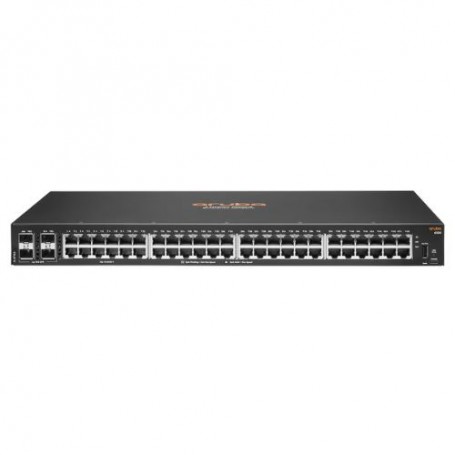

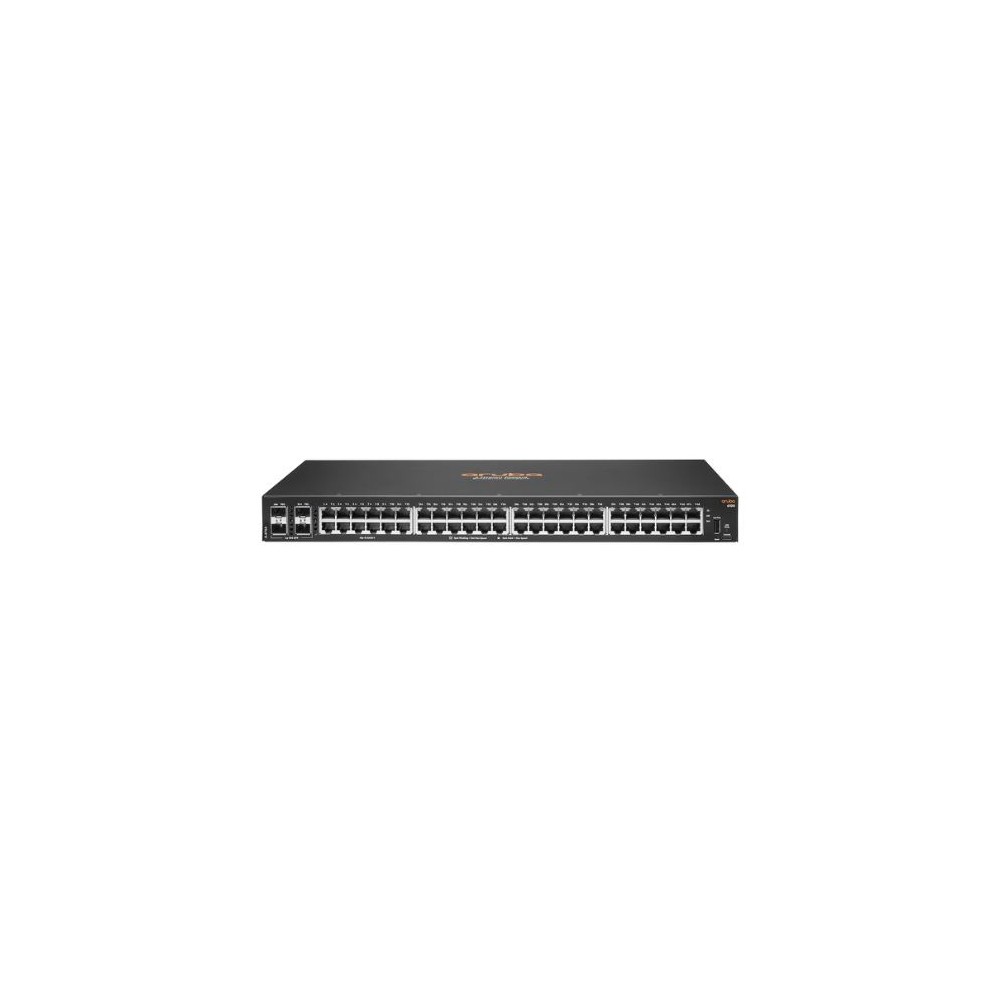

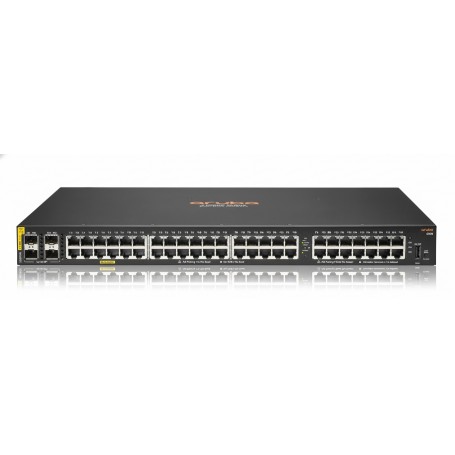

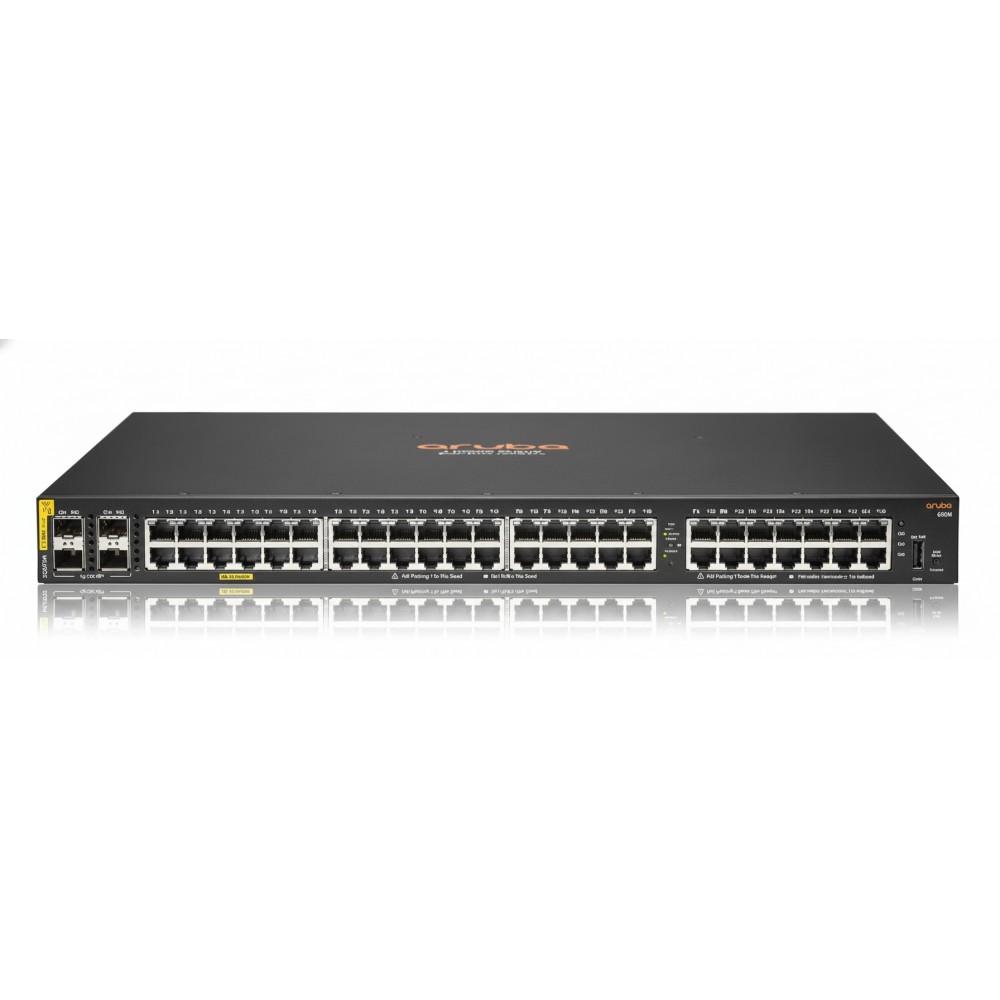

HPE JL676A Aruba CX 6100 48 Port 1Gb+4 Port 10Gb Access Switch
Overview
The HPE JL676A is a 48-port gigabit RJ-45 access switch with four dedicated 1/10 Gb SFP+ uplinks, designed to serve as the wired access layer for branch offices, campus wiring closets or SMB core/aggregation layers. With a switching capacity of 176 Gbps and ultra-low latency (1.9 µs on 1 Gb, 1.8 µs on 10 Gb) it handles typical enterprise traffic×VoIP, wireless backhaul, IP cameras, PoE IoT devices×without bottlenecks. It best fits environments where you need full gigabit port count, high-speed uplinks and advanced features like ACLs, static routing and IPv6 support×all in the familiar Aruba AOS-CX ecosystem and with no software licensing required.
Key Features
48× 10/100/1000BASE-T user ports plus 4× 1/10 Gb SFP+ uplinks provide high-density access with uplink headroom.
176 Gbps switching capacity supports full-line-rate gigabit on all ports without oversubscription.
Low latency: ~1.9 µs at 1 Gb, ~1.8 µs at 10 Gb×ideal when you stitch wireless, cameras or servers into the access layer.
Full-featured access switch: support for VLANs, ACLs, static routing, IPv6 and advanced QoS×useful when you need more than simple Layer 2.
Fits into the Aruba CX ecosystem (AOS-CX OS, NetEdit automation, Aruba Central management) so you get consistent operation with higher-tier switches.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL676A |
| Product Type | Fixed-port Access Switch (Aruba CX 6100 Series) |
| Port Configuration | 48 × 10/100/1000 BASE-T + 4 × 1/10 Gb SFP+ |
| Switching Capacity | 176 Gbps |
| Throughput (64-byte) | 98.6 Mpps |
| Latency | ~1.9 µs (1 Gb), ~1.8 µs (10 Gb) |
| Management | CLI, Web GUI, Aruba Central, REST APIs (AOS-CX) |
| Power Requirements | AC Input 100-127/200-240 V; fixed internal PSU |
| Dimensions & Weight | ~44.2 cm W × ~24.7 cm D × ~4.39 cm H; ~3.4 kg |
| Warranty | Limited lifetime hardware warranty (typical HPE) |
