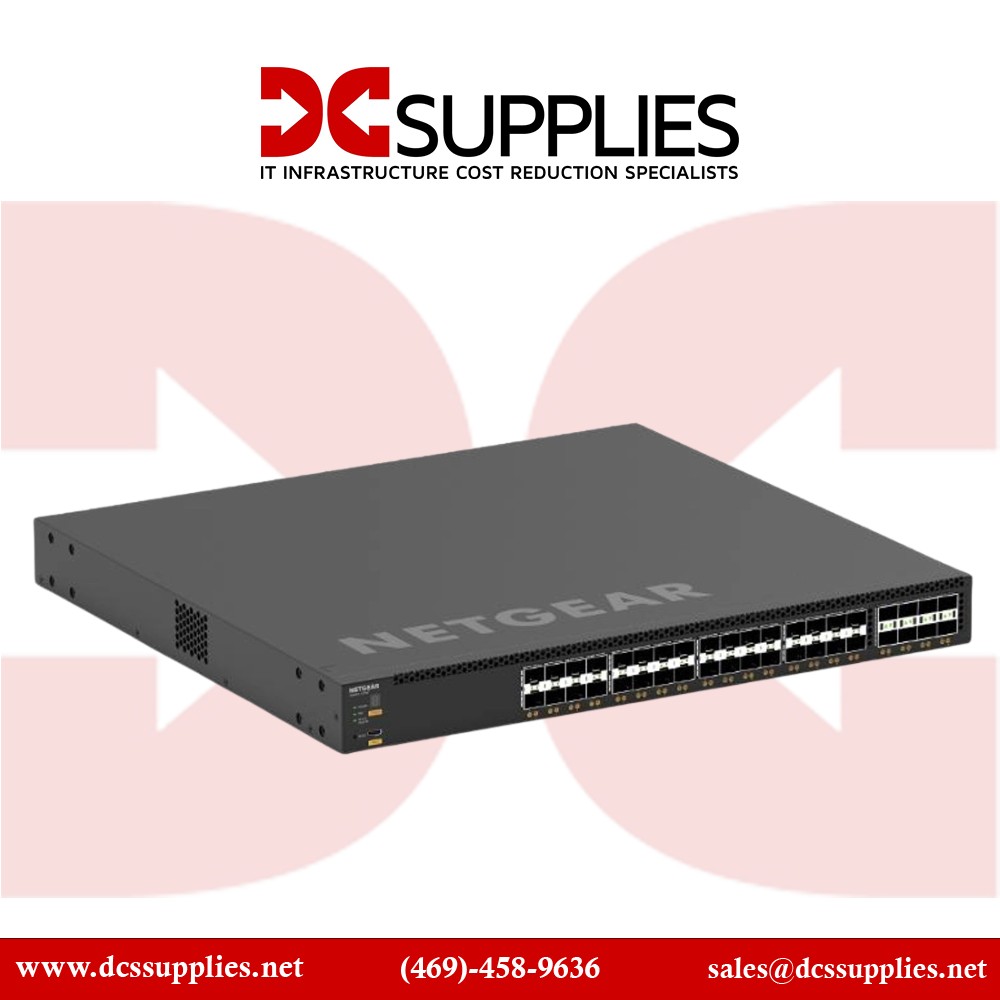

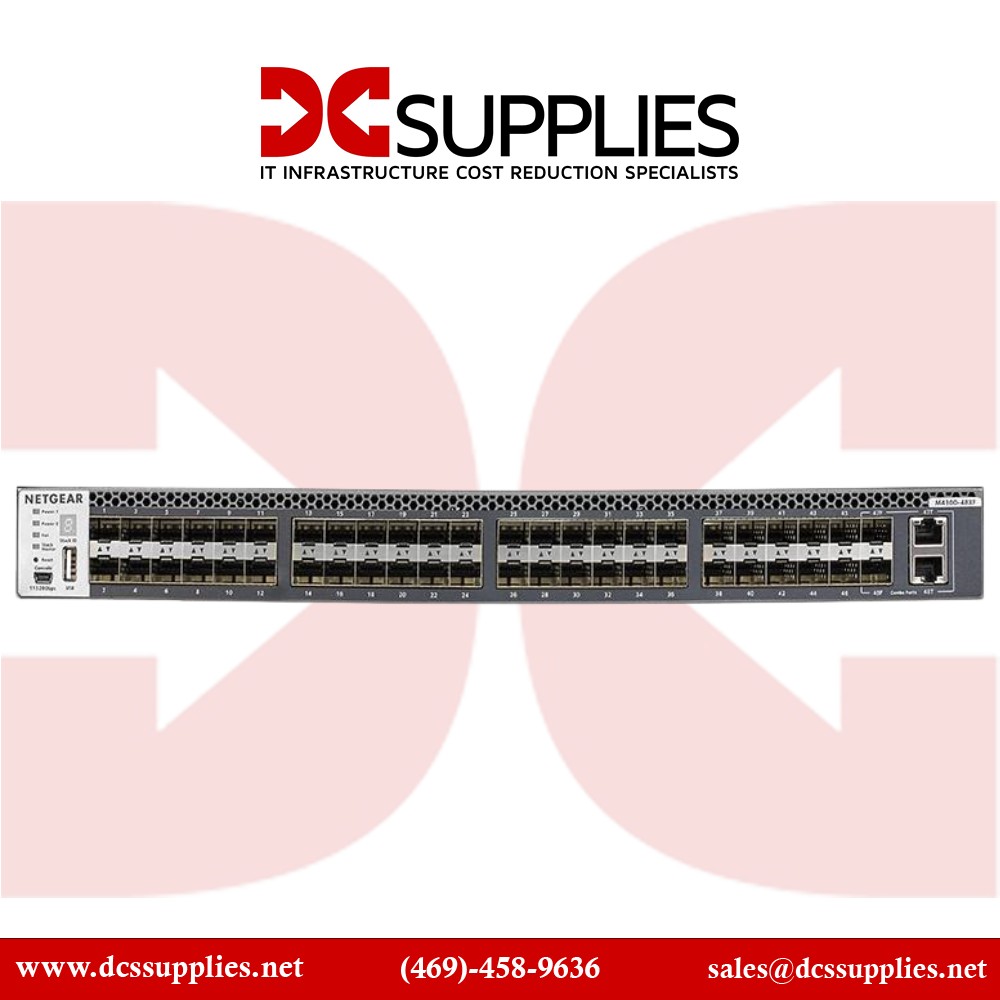

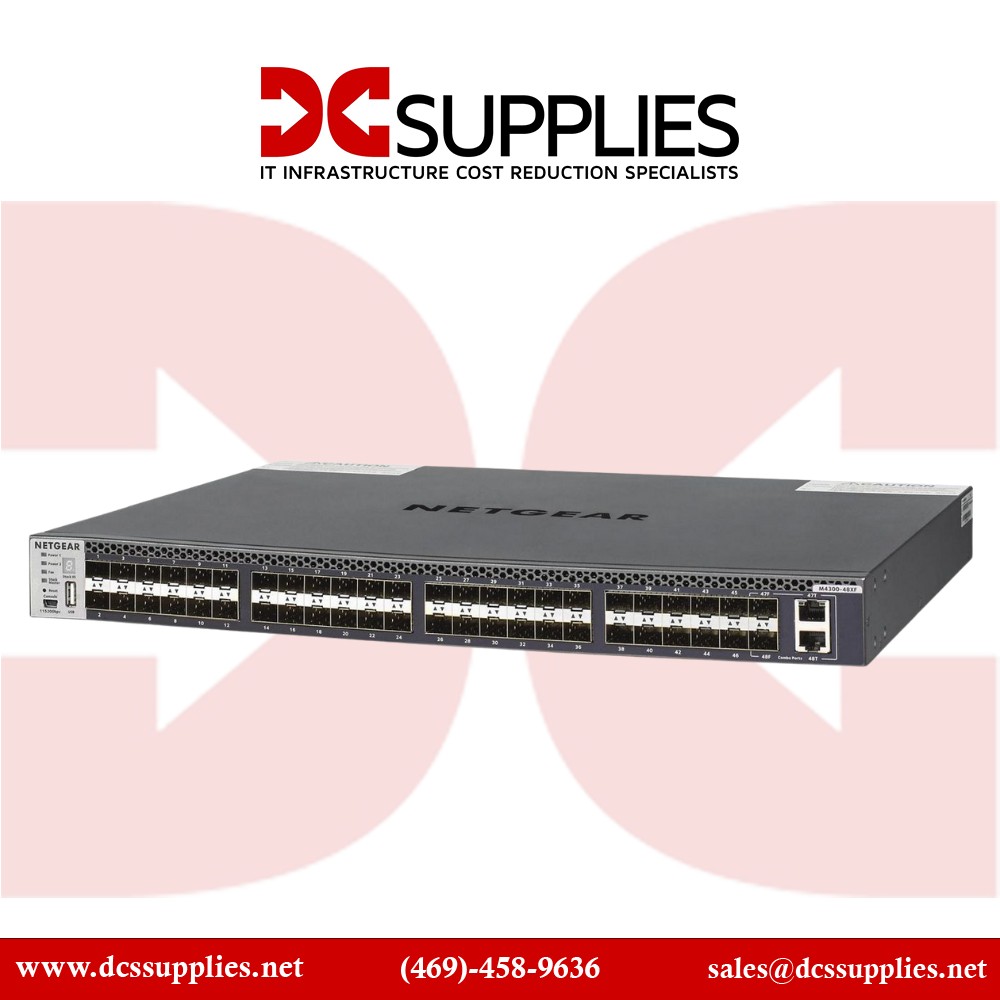

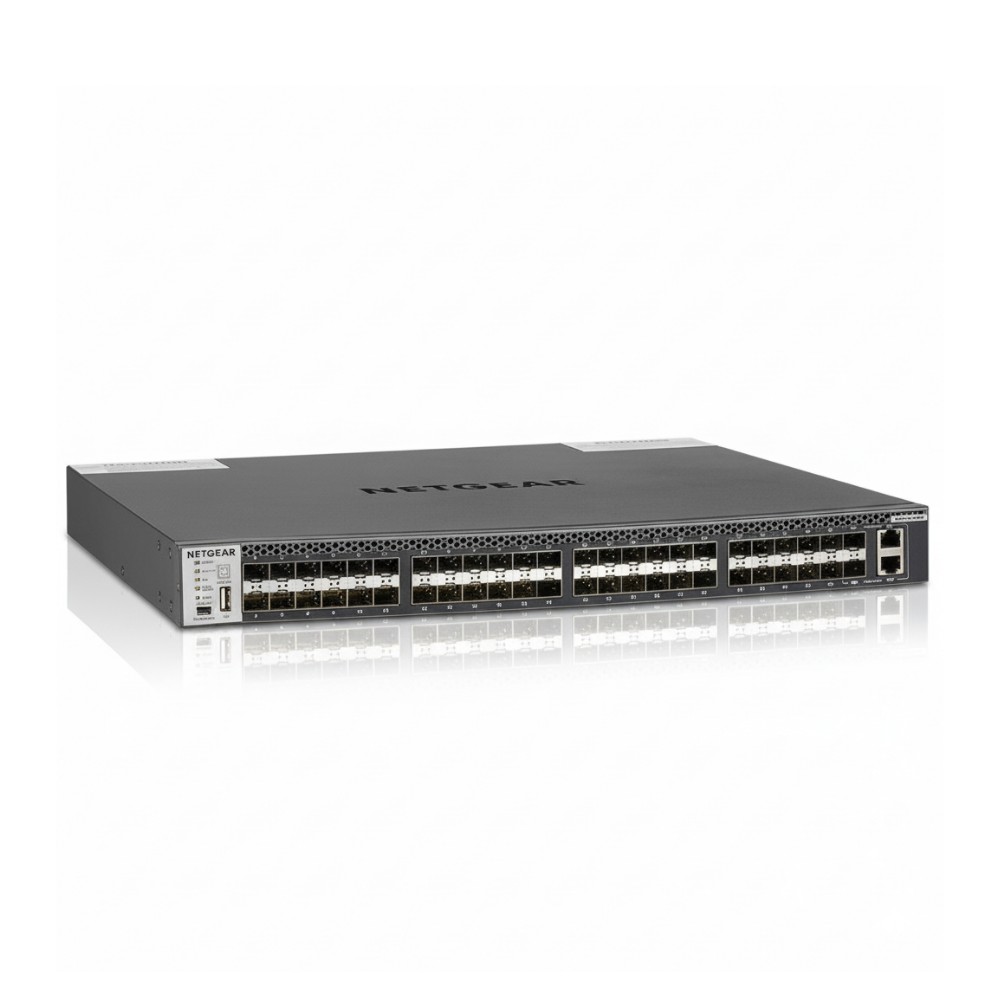

Netgear XSM4348FS-100NES 48-Port 10G SFP+ Managed Network Switch

New

Netgear M4300-48XF Stackable Managed Switch with 48xSFP+ Including 2x Shared 10GBase-T
×




  • New

Detailed Specifications

Netgear XSM4348FS-100NES

(M4300‑48XF) 48‑Port 10G SFP+ Managed Network Switch

The NETGEAR XSM4348FS‑100NES (M4300‑48XF) is a robust, fully‑managed rack‑mount switch offering ultra‑high‑speed connectivity for growing enterprise and pro‑AV networks. Its 48 SFP+ ports plus dual shared copper 10G provide flexible fiber and copper options. Ideal for data centers, distribution/hub switching — delivering high performance, scalability, and reliability.

Features

Equipped with advanced Layer 2 through Layer 4 features, including multicast IGMP‑Plus, IPv4/IPv6 routing, and SDN‑ready OpenFlow, it's designed for resilient spine‑and‑leaf architectures. Nonstop forwarding, stacking redundancy, and dual modular power bays ensure continuous operation in mission‑critical setups.

Advanced Options

Built for durability, the switch supports hot‑swappable stacking modules, dual firmware images, and USB console access. Its intelligent cooling system maintains low acoustics (~42 dB) while ensuring sustained performance.

Product Key Features

    •  48× 10G SFP+ + 2× shared 10G RJ‑45 ports (100 M/1/10 G)

    •  Fully managed L2/L3/L4 switch with IPv4/IPv6, OSPF, RIP, VRRP, PBR

    •  Nonstop forwarding & hitless stack failover for high availability

    •  Fan‑assisted front‑to‑back cooling, low noise (≈42 dB)

    •  Stackable with mixed 1G/10G/40G units via any 10G/40G port

    • 960 Gbps non‑blocking switching fabric, 128K MAC addresses

Reliability & Performance

Backed by NETGEAR’s lifetime hardware warranty and lifetime support, it’s a long‑term investment for enterprise-grade deployments.

Key Features :

    • 48× 10G SFP+ ports plus 2× shared 10G RJ‑45

    • Fully managed L2/L3/L4 with dynamic routing & multicast

    • Nonstop Forwarding, stacking, hitless failover

    • Low‑noise fan cooling design

    • Flexible stacking across mixed port speeds

    • 960 Gbps switching fabric, large MAC table

Specifications :

SpecificationDetails
Model Number XSM4348FS‑100NES (M4300‑48XF)
Product Type Fully‑Managed L2/L3/L4 Switch
Ports 48× 10G SFP+, 2× shared 10G RJ‑45
Shared Port Speeds 100 Mbps / 1 Gbps / 10 Gbps
Stacking Nonstop Forwarding, up to 8 units
Switching Fabric 960 Gbps non‑blocking
MAC Address Table 128,000 entries
Routing Protocols Static, RIP, OSPF, VRRP, PIM‑SSM, PBR
QoS / ACL L2/L3/L4 QoS, Access Control, DoS protection
Cooling / Noise Front‑to‑back fans, ≈42 dB
Management Interfaces Web GUI, CLI, SNMP, sFlow, RSPAN
Console Ports 1× RJ‑45 RS‑232, 1× Mini‑USB
USB Port 1× USB 2.0 for storage/logs/configs
Power Supplies 2× modular bays (1× APS250W included)
Dimensions (W×D×H) 21.1″ × 17.3″ × 1.7″ (535 × 440 × 43 mm)
Weight ~12.9 lb (≈5.9 kg)
Operating Temp 0 °C to 50 °C
