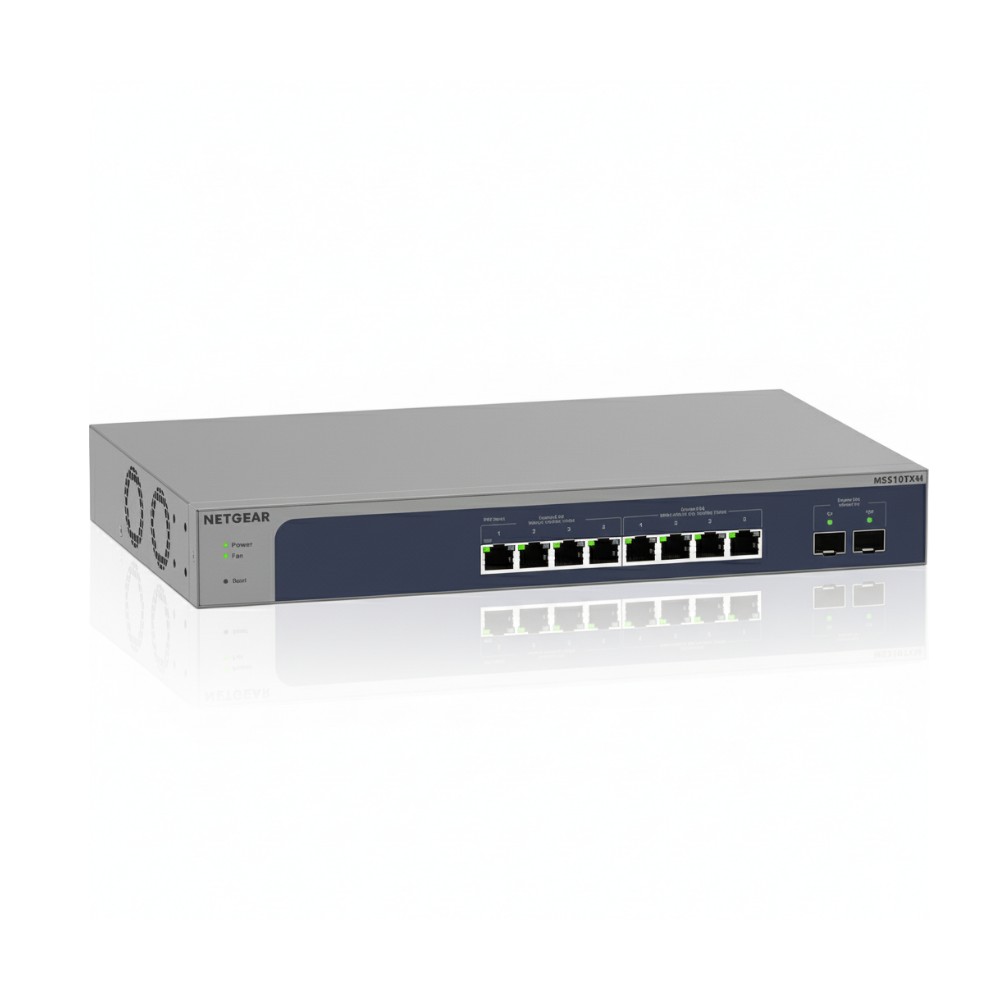

NETGEAR MS510TXM-100NAS 8-Port Multi-Gigabit/10G Ethernet Smart Switch View larger

NETGEAR MS510TXM-100NAS 8-Port Multi-Gigabit/10G Ethernet Smart Switch

New

In Stock

10G Multi-Gigabit Smart Managed Switch
×




$514.00

  • New

Detailed Specifications

Netgear MS510TXM-100NAS 8-Port Multi-Gigabit Smart Managed Switch

Overview :

The Netgear MS510TXM-100NAS is an 8-port multi-gigabit smart managed switch designed for small and medium-sized business networks that require flexible speed options. It supports port speeds ranging from 100 Mbps to 10 Gbps, providing scalability for devices with varying bandwidth needs. Ideal for deployments in branch offices, edge networks, or high-performance workgroups, it offers advanced Layer 2+ features for traffic management and security. The switch integrates easily into existing infrastructures and can be managed via the intuitive Netgear Insight platform.

Key Features

  • 8 RJ45 ports with multi-gigabit support

  • 2 SFP+ uplink ports for 10 Gbps fiber

  • Layer 2+ smart management capabilities

  • Fanless design for quiet operation

Specifications :

SpecificationDetail
Brand Netgear
Part Number MS510TXM-100NAS
Product Type Multi-Gigabit Smart Managed Switch
Total Ports 10 (8 RJ45 + 2 SFP+)
Port Speeds 100M/1G/2.5G/5G/10G (auto-negotiation)
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Packet Buffer 1.5 MB
MAC Address Table 16 K entries
VLAN Support Up to 256 VLANs
Power Supply Internal
Power Consumption Max 32 W
Fan Fanless (silent operation)
Mounting Rackmount and desktop options
Dimensions (W × D × H) 328 × 169 × 43 mm
Operating Temperature 0 °C – 50 °C
