Detailed Specifications

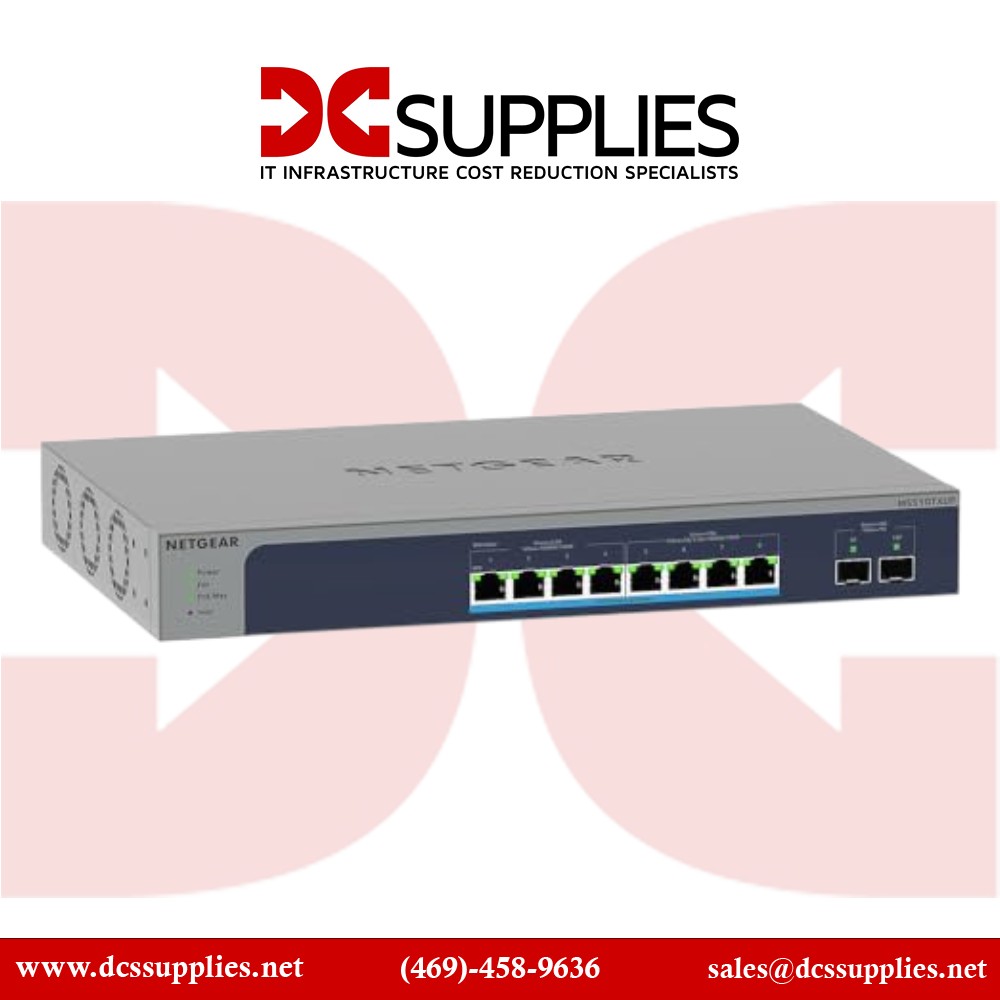

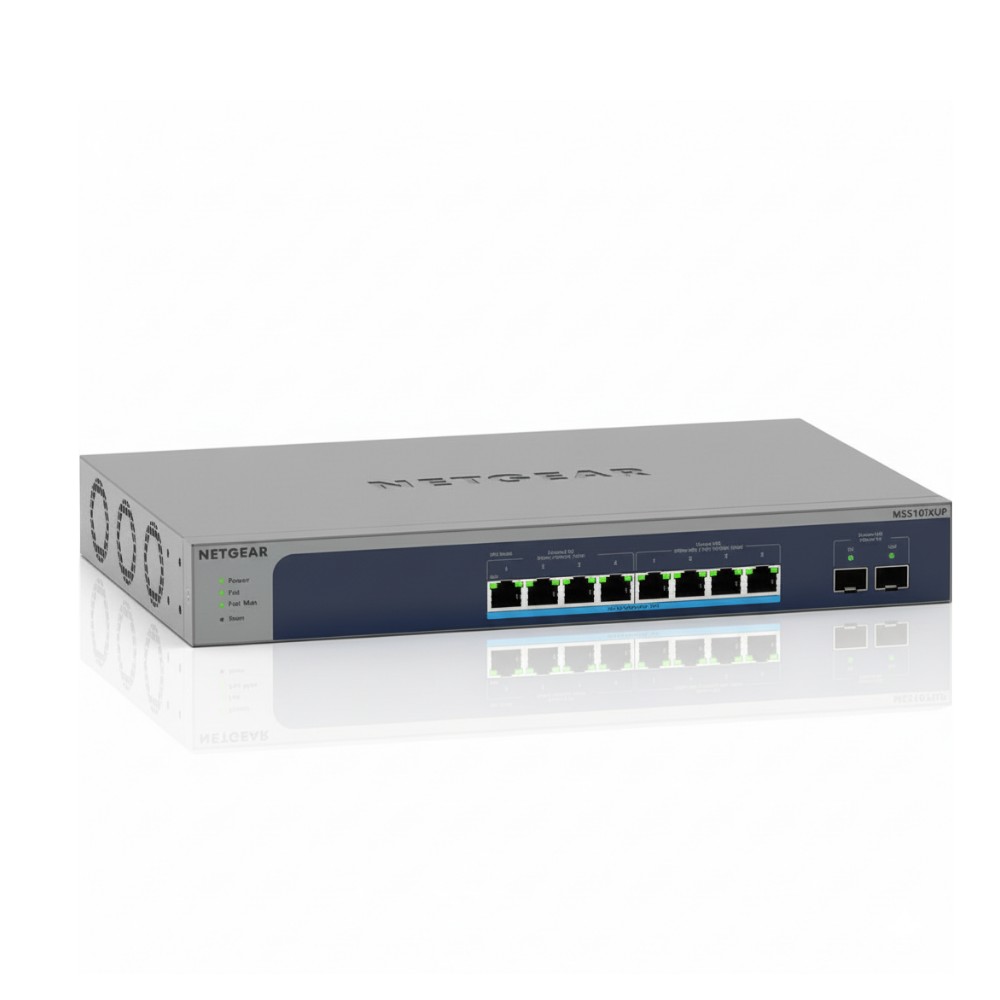

Netgear MS510TXUP-100NAS - 8-Port Multi-Gigabit PoE++ Smart Switch
Overview :
The Netgear MS510TXUP-100NAS is a high-performance Multi-Gigabit Smart Managed Pro switch engineered to eliminate network bottlenecks in modern SMB and enterprise edge environments. As organizations transition to WiFi 6 and 6E, standard Gigabit backhaul often becomes a limiting factor. This switch addresses that challenge by providing four 2.5G ports and four 10G/Multi-Gig ports, complemented by two dedicated 10G SFP+ fiber uplinks for high-speed core aggregation.
A primary differentiator for the MS510TXUP is its Ultra60 PoE++ support across all eight copper ports. It delivers up to 60W per port with a total power budget of 295W, making it an ideal solution for powering high-density wireless access points, 4K PTZ IP cameras, and high-performance IoT devices. Deployment is versatile, fitting seamlessly into branch offices or at the network edge where high-bandwidth devices converge. Management is flexible, offering a choice between a local web-based interface for standalone control or Netgear Insight for remote, cloud-based monitoring and configuration. This dual-management approach ensures that IT administrators maintain full visibility and control over their infrastructure regardless of physical location.Key Features :
Eight Multi-Gigabit ports for high-speed WiFi 6/6E backhaul.
295W total PoE budget with Ultra60 PoE++ (802.3bt) support.
Dual 10G SFP+ fiber uplinks for non-blocking aggregation.
Flexible management via Netgear Insight or local web GUI.
Specifications :
| Brand | Netgear |
| Part Number | MS510TXUP-100NAS |
| Product Type | Multi-Gigabit Smart Managed Pro Switch |
| Total Ports | 10 (8 Copper + 2 SFP+) |
| Multi-Gig Ports | 4x 1G/2.5G and 4x 1G/2.5G/5G/10G |
| Uplink Ports | 2x 10G SFP+ |
| PoE Standard | IEEE 802.3bt PoE++ (60W/port) |
| PoE Budget | 295W |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.1 Mpps |
| MAC Address Table | 32K entries |
| Form Factor | Rackmount or Desktop |
| Acoustic Noise | 25.0 dBA at 25°C |
| Dimensions | 330 x 206 x 43 mm |
| Weight | 2.51 kg |
