Netgear XSM4324FS-100NES Stackable Managed Switch with 24xSFP+ View larger

Netgear XSM4324FS-100NES Stackable Managed Switch with 24xSFP+

New

24-Port 10G SFP+ Managed Switch
×




  • New

Detailed Specifications

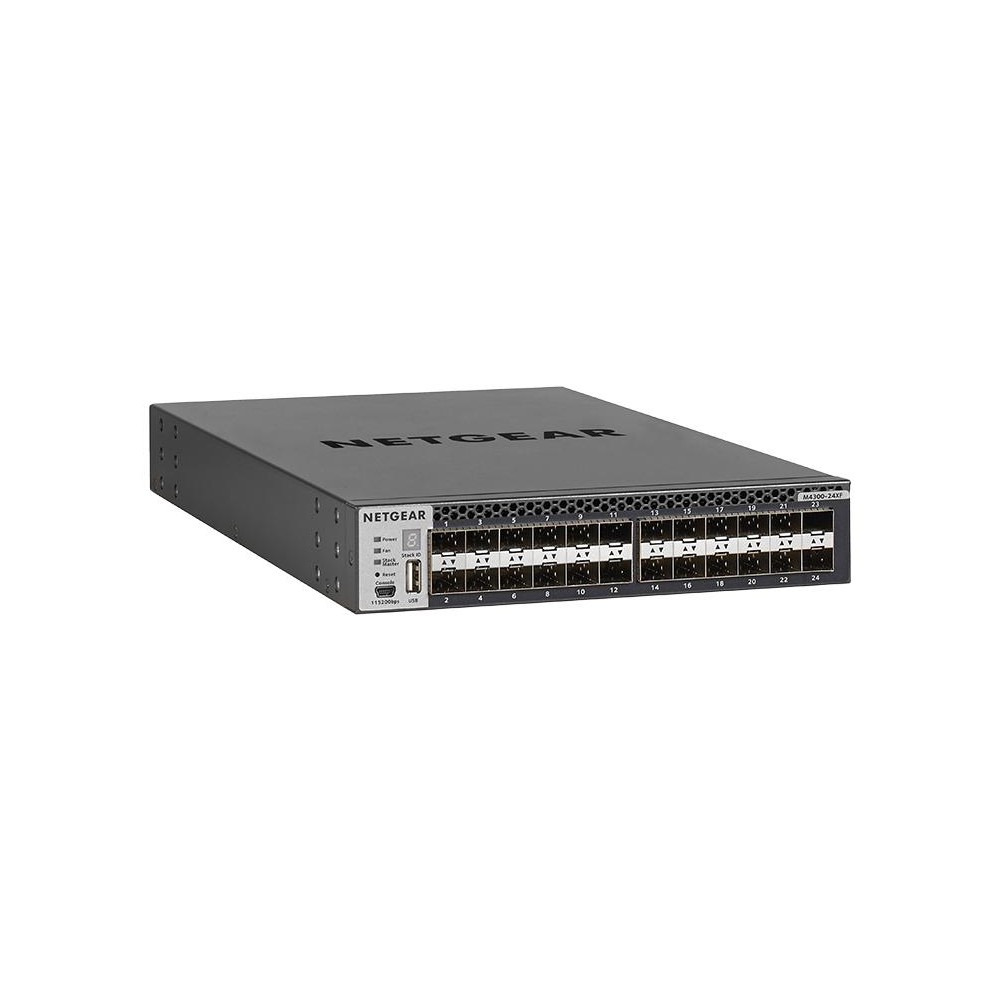

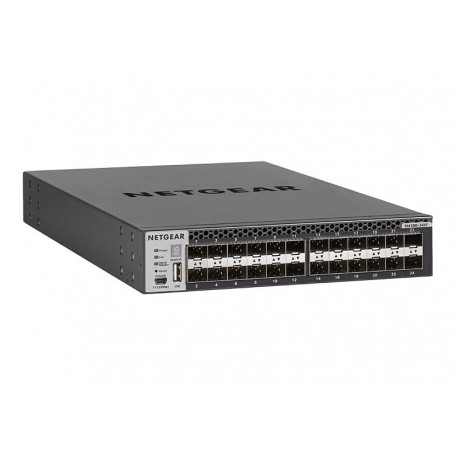

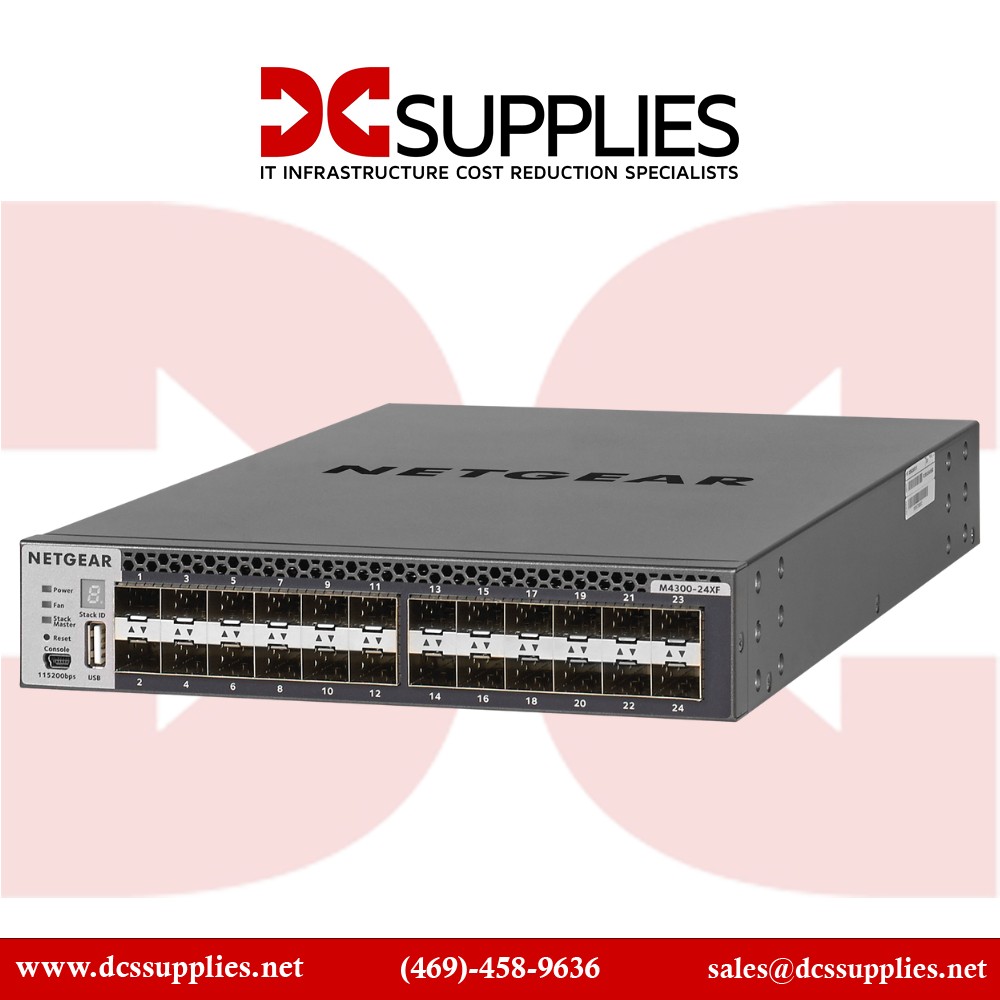

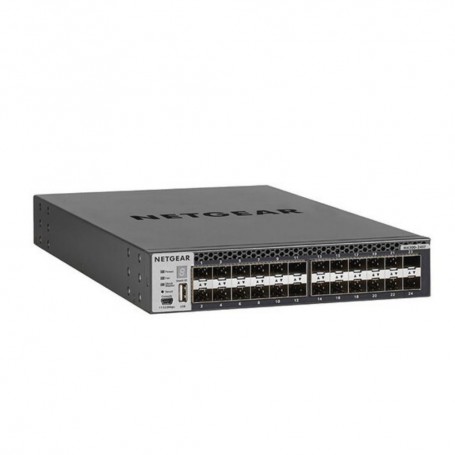

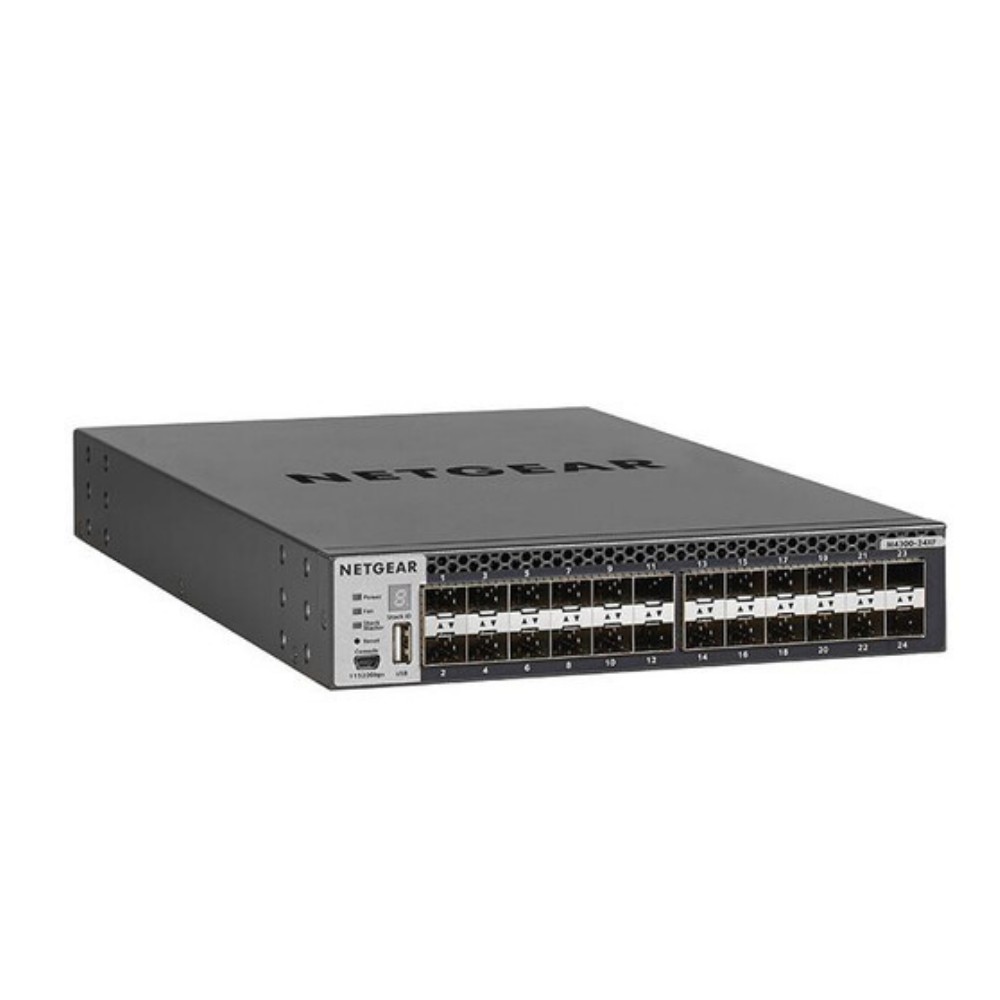

Netgear XSM4324FS-100NES – 24-Port 10G SFP+ Managed Switch

Overview :

The Netgear XSM4324FS-100NES is a 24-port 10G SFP+ managed network switch designed for high-speed aggregation and distribution in enterprise and data center environments. It delivers low-latency, wire-speed 10-Gigabit performance with advanced Layer 3 features for efficient traffic management. Ideal for network cores, server farms, and campus backbones, this switch supports seamless integration with Netgear Insight and other centralized management tools.

Key Features

  • 24 × 10G SFP+ fiber ports

  • 4 × 10GBASE-T RJ45 combo uplinks

  • Advanced Layer 3 static and dynamic routing

  • Redundant power supply support

Specifications :

SpecificationDescription
Brand Netgear
Part Number XSM4324FS-100NES
Product Type Managed Network Switch
Total Ports 28 (24 SFP+ + 4 10GBASE-T)
Switching Capacity 560 Gbps
Forwarding Rate 416.7 Mpps
Layer Support Layer 2 / Layer 3
Uplink Ports 4 × 10GBASE-T
Management Web GUI, CLI, SNMP, Insight
Stacking Yes, up to 8 units
Power Supply Dual hot-swappable PSU
Fan Configuration Redundant, hot-swappable fans
Form Factor 1U Rackmount
Operating Temperature 0°C to 50°C
Dimensions (W × D × H) 440 × 310 × 43 mm
Weight Approx. 6.5 kg
