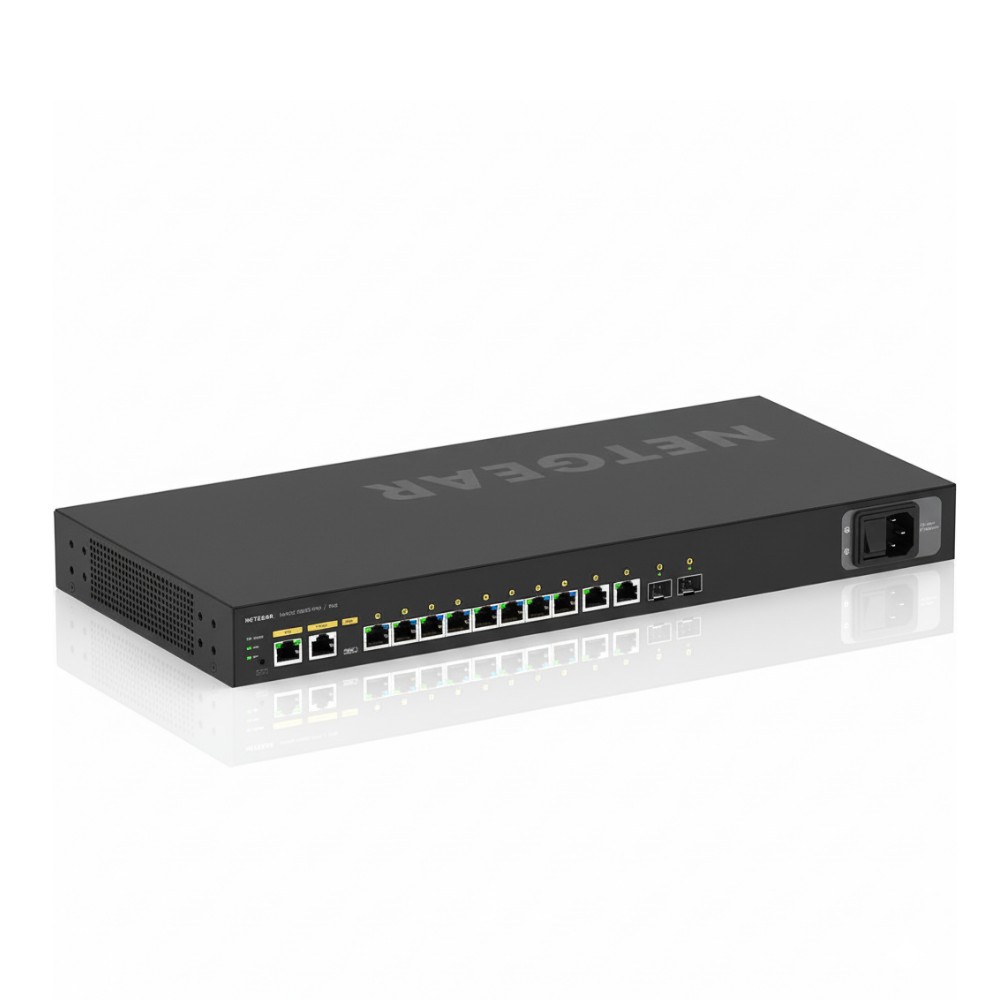

NETGEAR GSM4212PX-100NAS M4250 8-Port Gigabit Ethernet Switch

New

NETGEAR GSM4212PX-100NAS M4250 8-Port Gigabit Switch...

×




  • New

Detailed Specifications

NETGEAR GSM4212PX-100NAS

(M4250‑10G2XF‑PoE+) AV-Line Fully Managed Gigabit Ethernet Switch

The GSM4212PX‑100NAS is an 8-port Gigabit PoE+ fully managed Ethernet switch from NETGEAR’s M4250 AV-Line. Designed for professional AV-over-IP and corporate deployments, it delivers powerful PoE, flexible uplink choices, advanced Layer 3 networking,

Features

and AV-optimized usability—all in a rack-friendly form that blends seamlessly into noise-sensitive environments.Equipped with 8× 1 Gb PoE+ ports, delivering 30 W each under a 240 W budget, plus dual 10 Gb SFP+ and dual 1 Gb RJ‑45 uplinks

Advanced Options

this switch ensures high-bandwidth backbone performance. The AV-tailored GUI includes port profiles for protocols like Dante, AES67, NDI, SVSI, and NVX, while IGMP Plus™ enables automatic multicast across multiple switches—ideal for AV deployments. Rear-facing ports and reversible rack ears make clean integration and cabling possible.

Product Key Features

  •  8× PoE+ Ports (30 W each) with 240 W total budget for IP cameras, access points, AV encoders

  •  2× 10 GbE SFP+ + 2× 1 GbE RJ‑45 Uplinks: fiber or copper options for backbone connectivity

  •  Fully Managed L2/L3 Switch: VLANs, QoS, static/RIP/PIM routing, DHCP server, IPv4/IPv6 support

  •  AV-Focused Interface & IGMP Plus™: pre-defined audio/video port profiles for Dante, AES67, NDI, SVSI, Q‑SYS, NVX ● fan-mode adjustable for silent racks

  •  Rear-Facing Ports & Quiet/Fanless Modes: Ideal for noise-sensitive AV rack setups

  •  Automatic AV Connect: Auto-Trunk, Auto-LAG, IGMP Plus for easy matrix expansion

Reliability & Performance

Powered by a 60 Gb/s non-blocking fabric and a 44.64 Mpps forwarding rate, the GSM4212PX features robust performance with a 16 K MAC table and jumbo frame support (12 KB). Layer 2/3/4 capabilities include VLAN, static/RIP/PIM routing, DHCP server, link aggregation, IPv4/v6, QoS, storm control, DoS prevention, DHCP snooping, and RADIUS authentication. Fan settings (fanless/quiet/full) and a compact 1U design ensure reliable, low-noise operation.

Key Features (Bullet List)

    • 8× 1 GbE RJ‑45 PoE+ ports (30 W each; 240 W total)

    • 2× 10 GbE SFP+ and 2× 1 GbE RJ‑45 uplinks

    • 60 Gbps switching fabric; 44.64 Mpps forwarding performance

    • AV GUI with audio/video port profiles

    • Supports VLAN, QoS, static/RIP/PIM routing, DHCP server, IPv4/IPv6

    • IGMP Plus™, Auto-LAG, Auto-Trunk for AV scaling

    • Jumbo frames (12 KB), 16 K MAC table, 16 Mb buffer

    • Security: DoS prevention, storm control, DHCP snooping, RADIUS

    • Quiet / fanless operational modes; rear-facing ports; 1U rack design

SpecificationDetails
Model Number GSM4212PX‑100NAS (M4250‑10G2XF‑PoE+)
Switch Type Fully Managed L2/L3 AV Ethernet Switch
Ports 8× 1 GbE PoE+ RJ‑45, 2× 1 GbE RJ‑45, 2× 10 GbE SFP+
PoE Budget 240 W (30 W per PoE+ port)
Switch Fabric 60 Gb/s non-blocking
Forwarding Rate 44.64 Mpps
MAC Table 16 K entries
Packet Buffer 16 Mb
Jumbo Frames Up to 12 000 bytes
Routing Static, RIP, PIM
Other Features VLAN, QoS, DHCP server, IPv4/v6, Link Aggregation, IGMP Plus™
Security DoS, storm control, DHCP snooping, RADIUS
Management Tools AV GUI, IT GUI, CLI, SSH, SNMP, sFlow, RSPAN
Cooling Fanless / Quiet / Full modes
Form Factor 1U, reversible rack ears, rear-facing ports
Dimensions 440 × 200 × 43.2 mm
Weight ~2.9 kg (6.4 lb)
Power Supply Internal PSU; ~306 W w/ PoE; 25 W idle; 13 W standby
