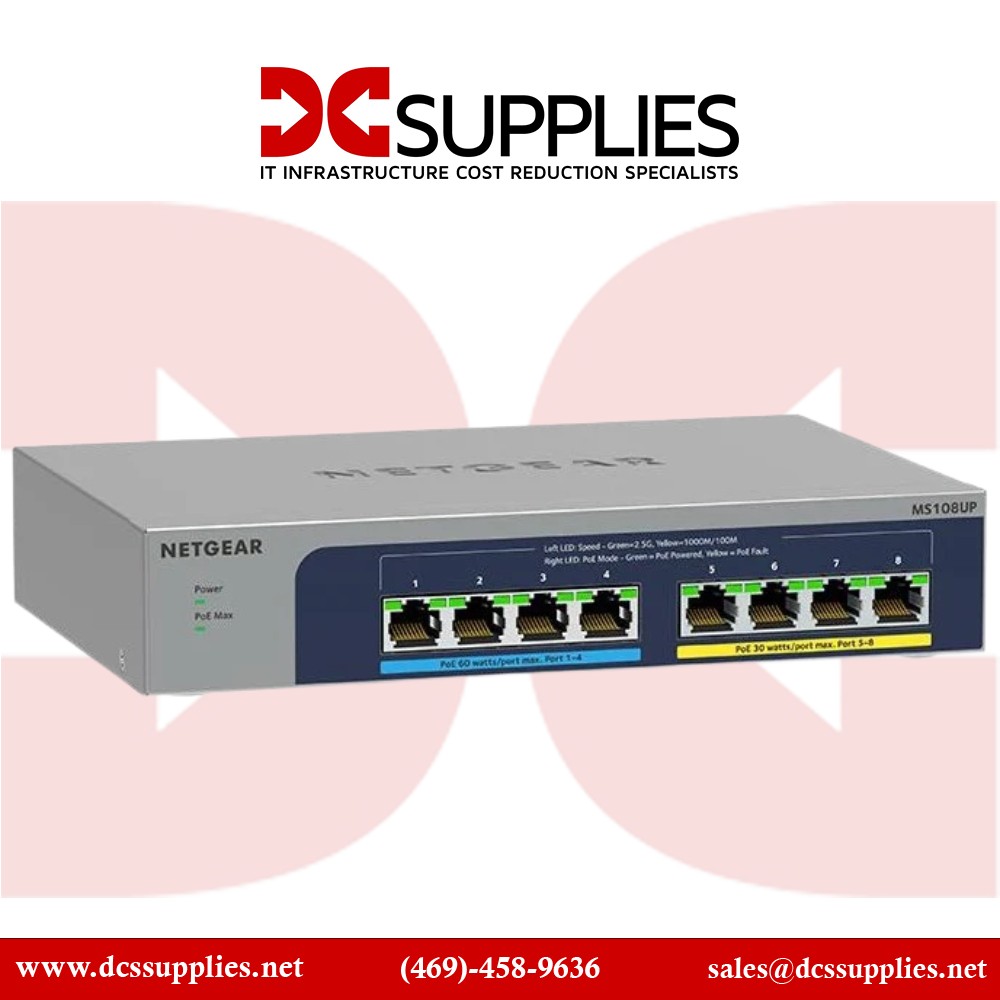

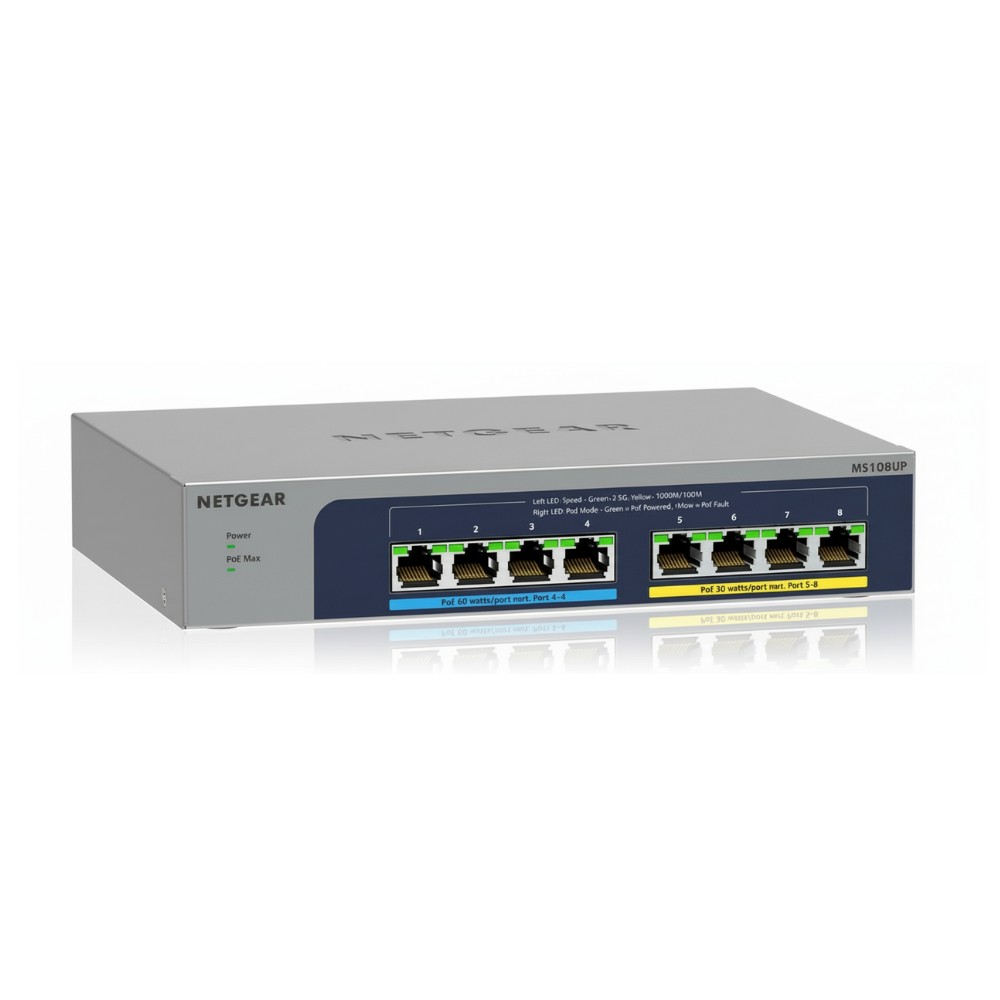

NETGEAR MS108UP-100NAS 8-Port 2.5G PoE+ Unmanaged Ethernet Switch View larger

NETGEAR MS108UP-100NAS 8-Port 2.5G PoE+ Unmanaged Ethernet Switch

New

8-Port Multi-Gig PoE+ Desktop Switch
×




  • New

Detailed Specifications

Netgear MS108UP-100NAS – 8-Port Multi-Gigabit PoE+ Desktop Switch

Overview :

The Netgear MS108UP-100NAS is an 8-port unmanaged Multi-Gigabit Ethernet switch designed for powering and connecting modern PoE+ and PoE++ devices. It supports up to 60 W per port, ideal for wireless access points, IP cameras, and VoIP phones. This fanless, compact unit is built for quiet operation in small offices, retail spaces, or branch networks. With full 2.5 Gbps connectivity across all ports, it provides high-speed performance without the complexity of managed configuration.

Key Features

• 8× 2.5 GbE ports with PoE+/PoE++ support
• Total 230 W PoE power budget
• Fanless metal housing for silent use
• Plug-and-play unmanaged operation

Specifications

SpecificationDetail
Brand Netgear
Part Number MS108UP-100NAS
Product Type 8-Port Multi-Gigabit PoE+ Switch
Port Configuration 8 × 2.5 GbE RJ-45 ports
PoE Standards Supported IEEE 802.3af / 802.3at / 802.3bt (Type 3)
PoE Power Budget 230 W total
Max PoE per Port Up to 60 W
Switching Capacity 40 Gbps
MAC Address Table 16 K entries
Fan Fanless (silent operation)
Mounting Options Desktop or wall-mount
Power Supply Internal
Energy Efficiency IEEE 802.3az (Energy-Efficient Ethernet)
Operating Temperature 0 °C – 40 °C
Dimensions (W × D × H) 236 × 102 × 27 mm
Weight 1.04 kg
