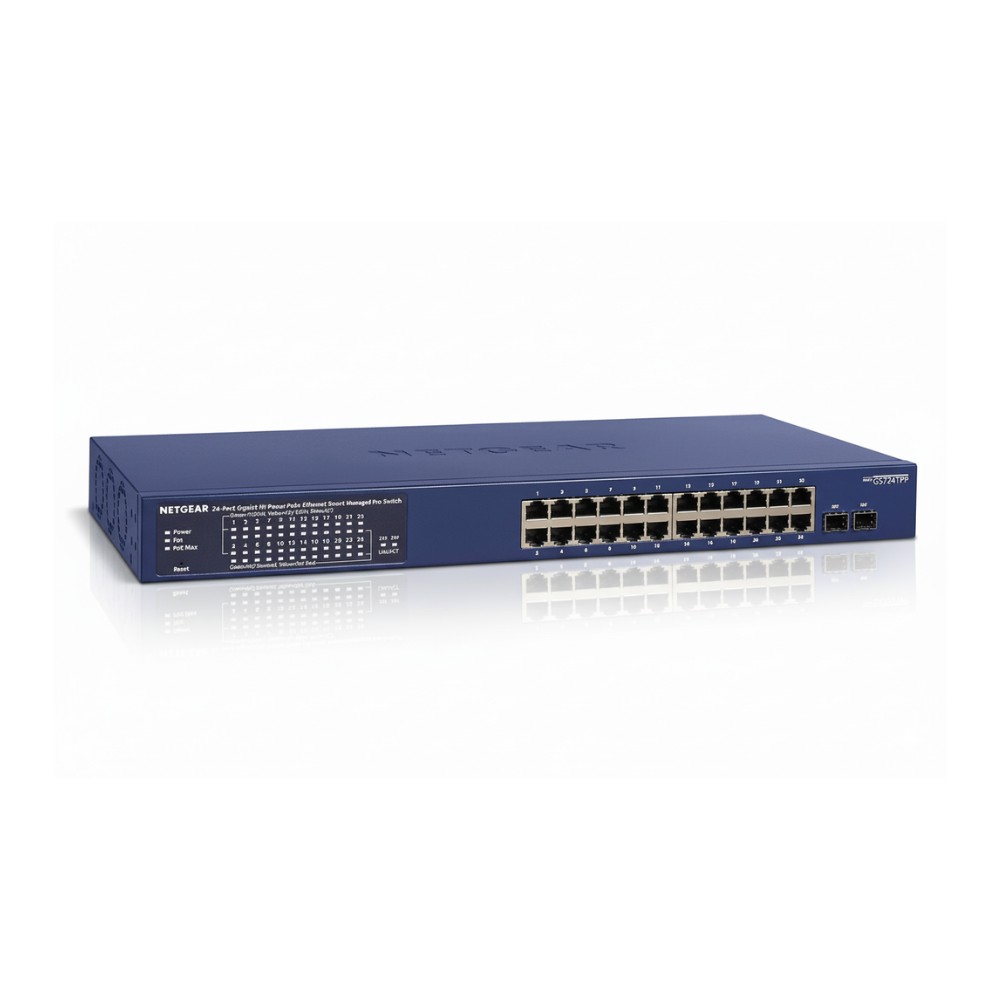

Netgear GS724TPP-100NAS 24-Port Gigabit Ethernet switch

New

Powerful Layer 2 and Layer 2+ / Layer 3 Lite features enhance performance, usability
×




  • New

Detailed Specifications

Netgear GS724TPP-100NAS

24‑Port Gigabit Ethernet Smart Managed Pro PoE+ Switch

The NETGEAR GS724TPP‑100NAS is a 24‑port Gigabit smart switch offering full PoE+ capability (380 W total) with advanced Layer2‑4 features and optional cloud management—ideal for SMBs, surveillance systems, VoIP deployments, and wireless networks seeking centralized control and power delivery.

Features

Combining 24 PoE+ ports and 2 SFP fiber uplinks, this switch supports converged data, voice, and video networks with ease With robust Layer 2/3/4 functions—VLANs, ACLs, QoS, LACP, STP, IGMP, DHCP snooping, and denial-of-service protection—the GS724TPP balances performance and security . FANs operate via smart speed control to minimize noise, supporting noiseless rack deployment at full load (~35 dBA).

Advanced Options

For remote or hybrid operations, Insight cloud management can be activated directly (no separate controller required) to enable remote configuration, monitoring, and notifications Dual firmware images allow for maintenance with minimal uptime impact.

Product Key Features

    • 24× Gigabit RJ‑45 PoE+ ports, 380 W total PoE budget (all 802.3at)

    • 2× dedicated 1 Gbps SFP uplinks for fiber connectivity

    • Smart/Late 2/3/4 layer functionality: VLAN, ACL, QoS, port mirroring, link aggregation, STP, DHCP snooping

    • Optional cloud management via NETGEAR Insight, plus dual firmware images

    • Durable metal rackable design with fan-cooled operation

    • Energy Efficient Ethernet (802.3az), auto power-down, short‑cable savings

Reliability & Performance

With 52 Gbps non‑blocking capacity, 1.44 Mpps forwarding rate, 192 KB buffer, and 8K MAC entries, the GS724TPP delivers consistent high-speed performance Its solid-state and fan-cooled design ensures low failure rates in demanding environments, backed by a lifetime warranty and next-day hardware replacement—including online tech support.

Key Features :

    • 24× RJ‑45 10/100/1000Base‑T PoE+ ports (802.3at)

    • 380 W total PoE budget, auto-balanced

    • 2× Gigabit SFP fiber uplink ports

    • Layer 2/3/4 smart features: VLAN, ACLs, QoS, LACP, STP, IGMP, DHCP snooping, DoS prevention

    • IPv6 management, RADIUS, SNMP v1/2c/3, RMON

    • Port mirroring, cable diagnostics, dual firmware images

    • Fan-cooled metal chassis compatible with rack/desktop

    • Optional NETGEAR Insight cloud management

SpecificationDetails
Model Number GS724TPP‑100NAS
Product Type 24‑Port Smart Managed Pro PoE+ Switch
Copper Ports 24× 10/100/1000 Base‑T PoE+ (802.3at)
Uplink Ports 2× 1 Gbps SFP
Total PoE Budget 380 W auto-balanced
Switching Capacity 52 Gbps non-blocking
Forwarding Rate 1.44 Mpps
MAC Address Table 8,000 entries
Packet Buffer 192 KB
VLAN Up to 64 static, protocol/MAC/RADIUS-based
QoS L2/L3 DSCP, 802.1p, weighted queues
Link Aggregation 16 LAGs, up to 8 ports per group
STP Modes STP, RSTP, MSTP
IGMP Snooping v1/v2/v3 with querier
ACLs Ingress L2/3/4
Management Web GUI, SNMP v1/2c/3, RMON, CLI, RADIUS/TACACS+, LLDP-MED
Cloud Management NETGEAR Insight (optional)
Energy Features 802.3az, short-cable detection
Fans 2 with temperature/load-based control
Acoustic Noise <35 dBA at full PoE load
Power Consumption (full) ~446 W (with max PoE & traffic)
Dimensions (W×D×H) 440 × 204 × 43 mm (17.3×8×1.7 in)
Weight ~3.7 kg (8.2 lb)
Operating Temp 0–50 °C
