Detailed Specifications

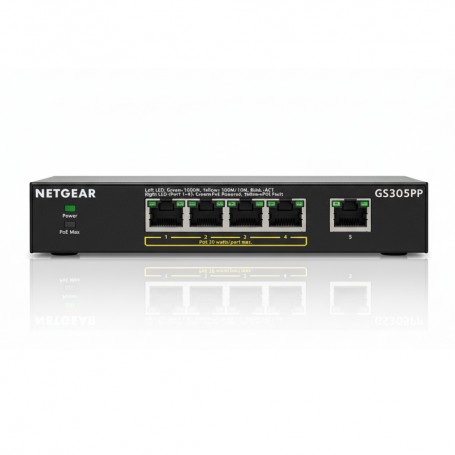

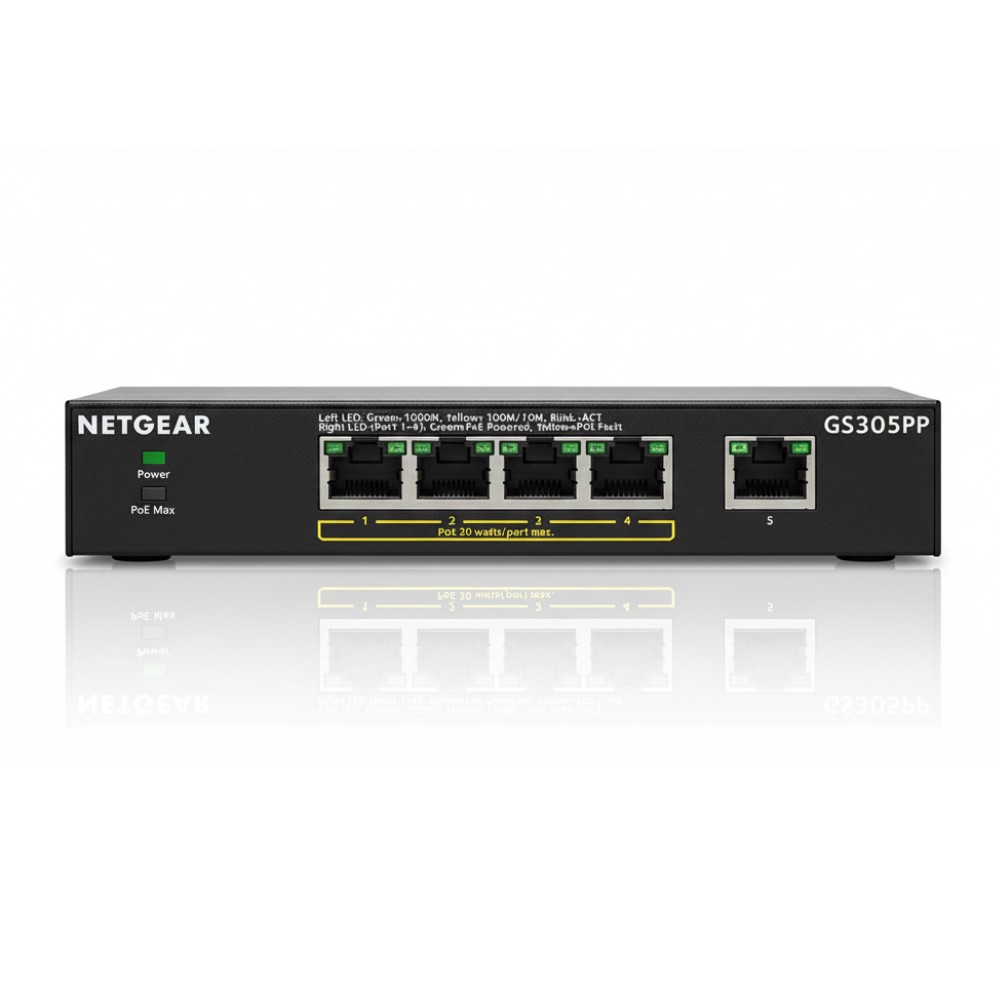

Netgear GS305PP-100NAS 5 Port Gigabit Unmanaged PoE+ Switch
Overview:
The Netgear GS305PP-100NAS is a 5-port unmanaged Gigabit switch with 83W PoE+ budget that powers up to four devices at 30W each without requiring separate power adapters. Designed for small offices and home deployments, it handles IP security cameras, VoIP phones, wireless access points, and IoT devices on ports 1-4 while port 5 serves as a standard uplink to your router or upstream switch. This fanless desktop switch operates silently and requires zero configuration×just plug in devices and the switch auto-negotiates speed and PoE power requirements.
Key Features
- 83W total PoE+ budget across 4 ports delivers up to 30W per port for high-power devices like PTZ cameras or Wave 2 access points
- Priority-based PoE allocation ensures lower-numbered ports (1-4) receive power first if budget is exceeded, preventing random device shutdowns
- 10 Gbps switching fabric with 1.488 Mpps forwarding rate handles full line-rate traffic on all five ports simultaneously
- Fanless metal housing operates silently in small offices, retail counters, or conference rooms with passive cooling only
Specifications
| Specification | Detail |
|---|
| Brand | Netgear |
| Part Number | GS305PP-100NAS |
| Product Type | Unmanaged PoE+ Switch |
| Port Configuration | 5x 10/100/1000 Gigabit (Ports 1-4 PoE+, Port 5 uplink) |
| PoE Power Budget | 83W total, 30W max per port (IEEE 802.3af/at) |
| Switching Capacity | 10 Gbps non-blocking, 1.488 Mpps forwarding rate |
| Management | Unmanaged (plug-and-play, no configuration required) |
| Power Requirements | 54V DC @ 1.66A external adapter (89W max consumption) |
| Dimensions & Weight | 158x101x29mm (6.2x4.0x1.1 in), 0.41kg (0.90 lbs) |
| Warranty | 3-year limited hardware warranty |
