Detailed Specifications

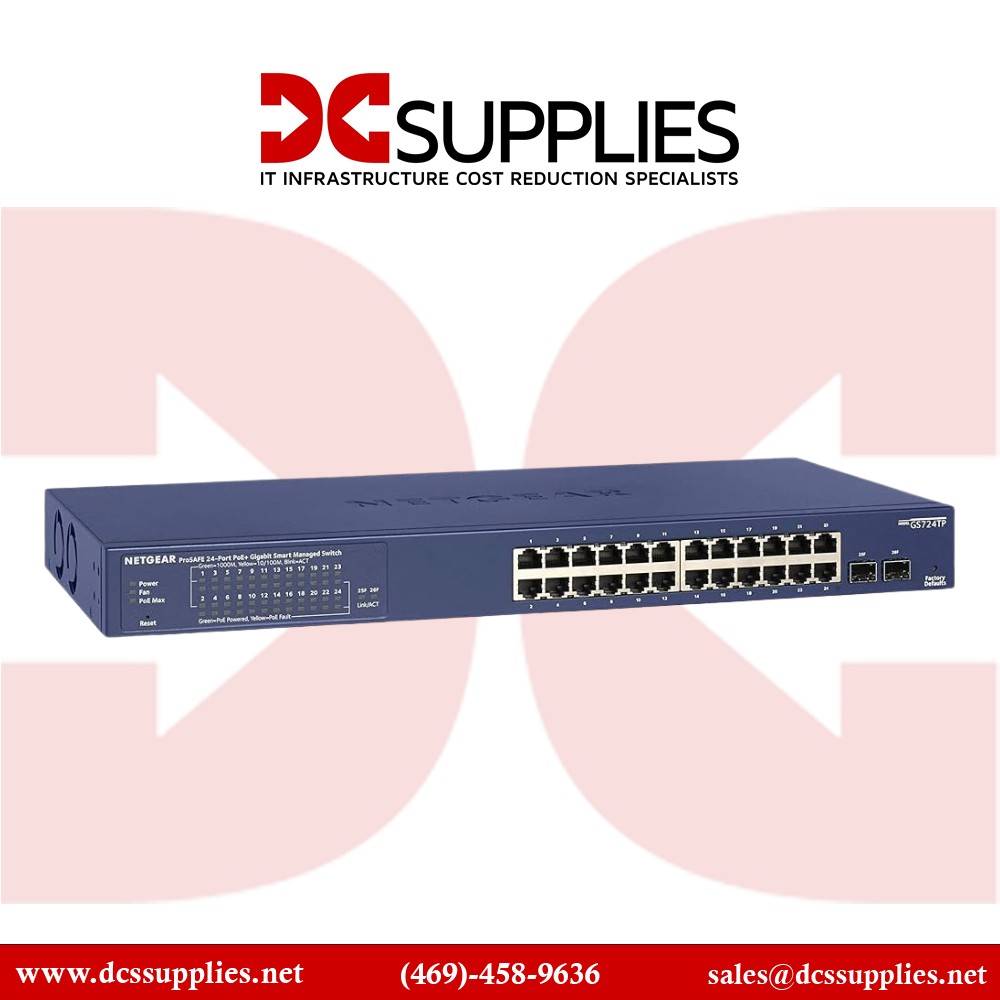

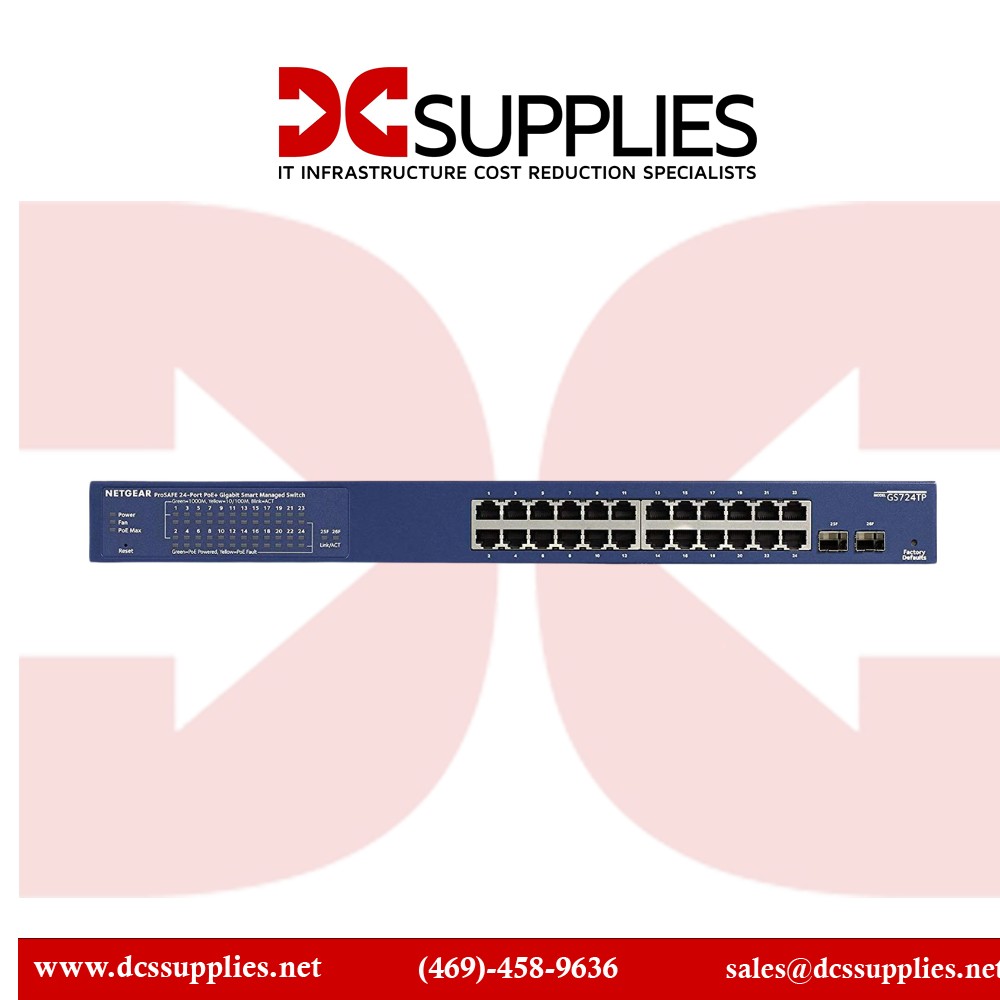

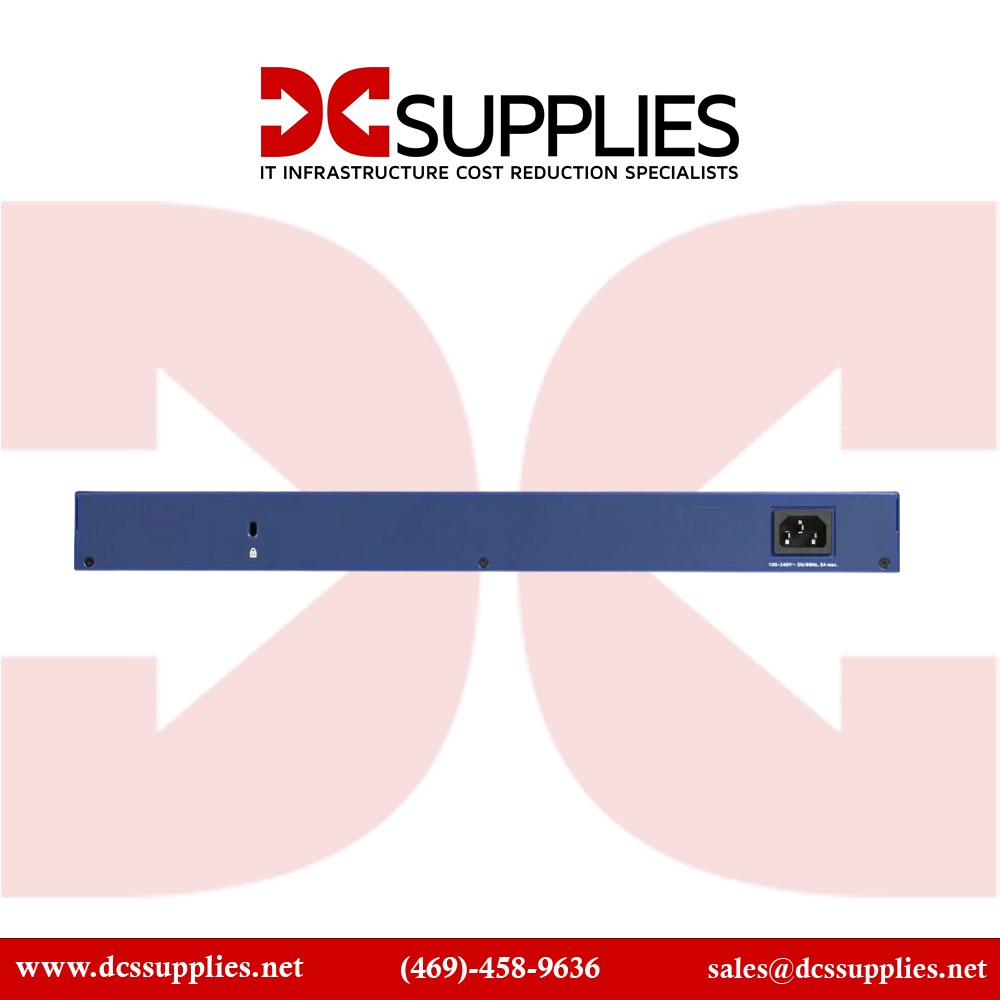

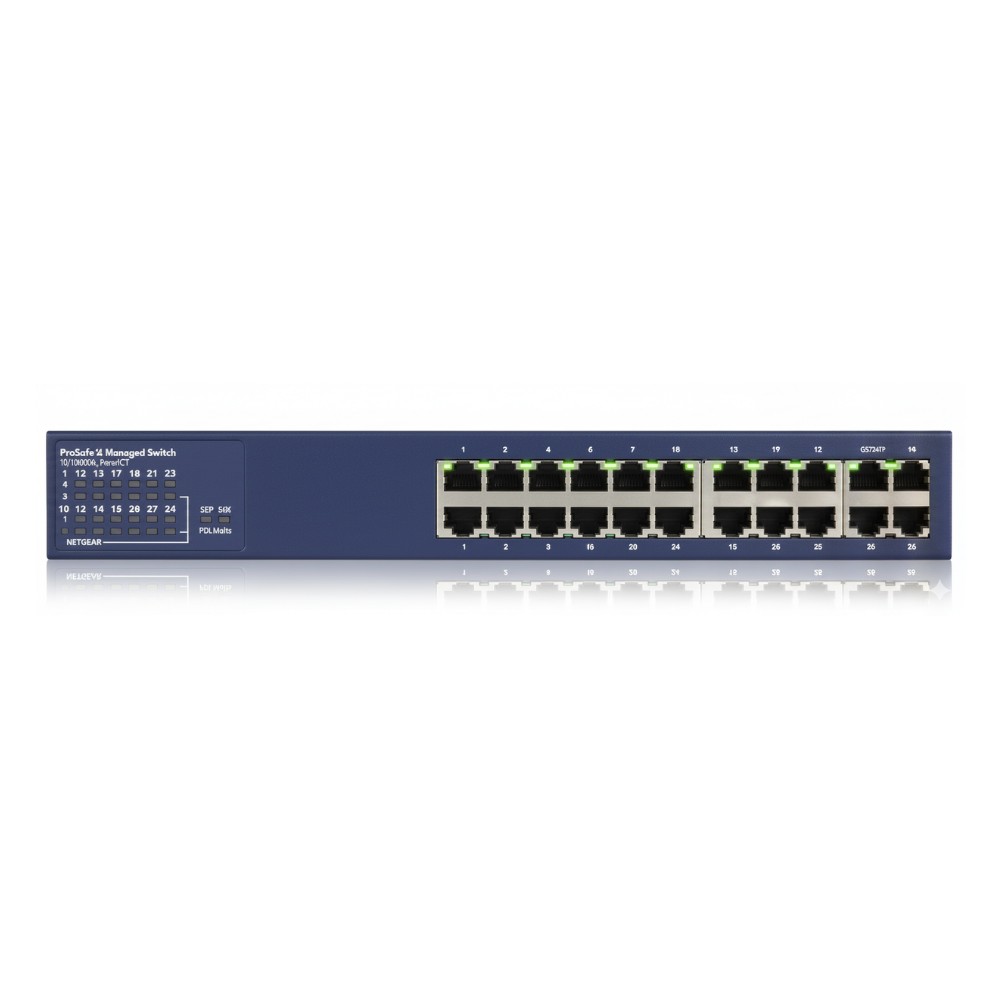

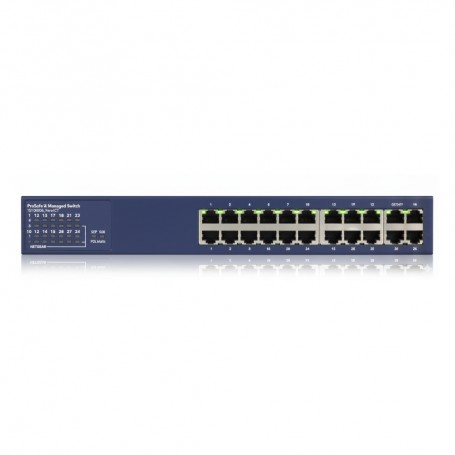

NETGEAR GS724TP-200NAS - 24-Port Gigabit PoE+ Smart Switch with Cloud Management
Overview
The NETGEAR GS724TP-200NAS is a 24-port Gigabit smart managed switch with PoE+ designed for small and medium businesses deploying VoIP phones, IP surveillance cameras, and wireless access points. It delivers 190W of PoE+ power budget across all 24 ports with two dedicated Gigabit SFP fiber uplinks for core network connections. This switch handles typical branch office installations of 100-250 users with support for VLANs, Layer 3/4 ACLs, LACP link aggregation, and optional cloud-based management through NETGEAR Insight for remote configuration and monitoring from anywhere.
Key Features
- 190W PoE+ budget supports up to 12 high-power devices like Wave 2 access points or PTZ cameras simultaneously per IEEE 802.3at standard
- Two dedicated Gigabit SFP ports enable fiber uplinks to core switches without consuming copper ports for aggregation bandwidth
- NETGEAR Insight cloud management allows remote switch configuration, PoE port control, and firmware updates from mobile devices or web portal
- Fanless operation with temperature-based cooling keeps acoustics under 32.4 dBA for quiet deployment in conference rooms or offices
Technical Specifications
| Specification | Detail |
|---|
| Brand | NETGEAR |
| Part Number | GS724TP-200NAS |
| Product Type | Smart Managed PoE+ Switch |
| Port Configuration | 24x 1GbE PoE+ + 2x 1G SFP |
| PoE Power Budget | 190W (IEEE 802.3at PoE+) |
| Switching Capacity | 52 Gbps non-blocking |
| Management | Web GUI, NETGEAR Insight Cloud, SNMP v1/v2c/v3 |
| Power Consumption | 23.35W (no PoE) / 228.53W (full PoE) |
| Dimensions & Weight | 440 x 204 x 43mm (17.3 x 8 x 1.7 in.) / 3.15 kg (6.96 lb) |
| Warranty | Limited Lifetime Hardware Warranty |
